5.11 DO Connection

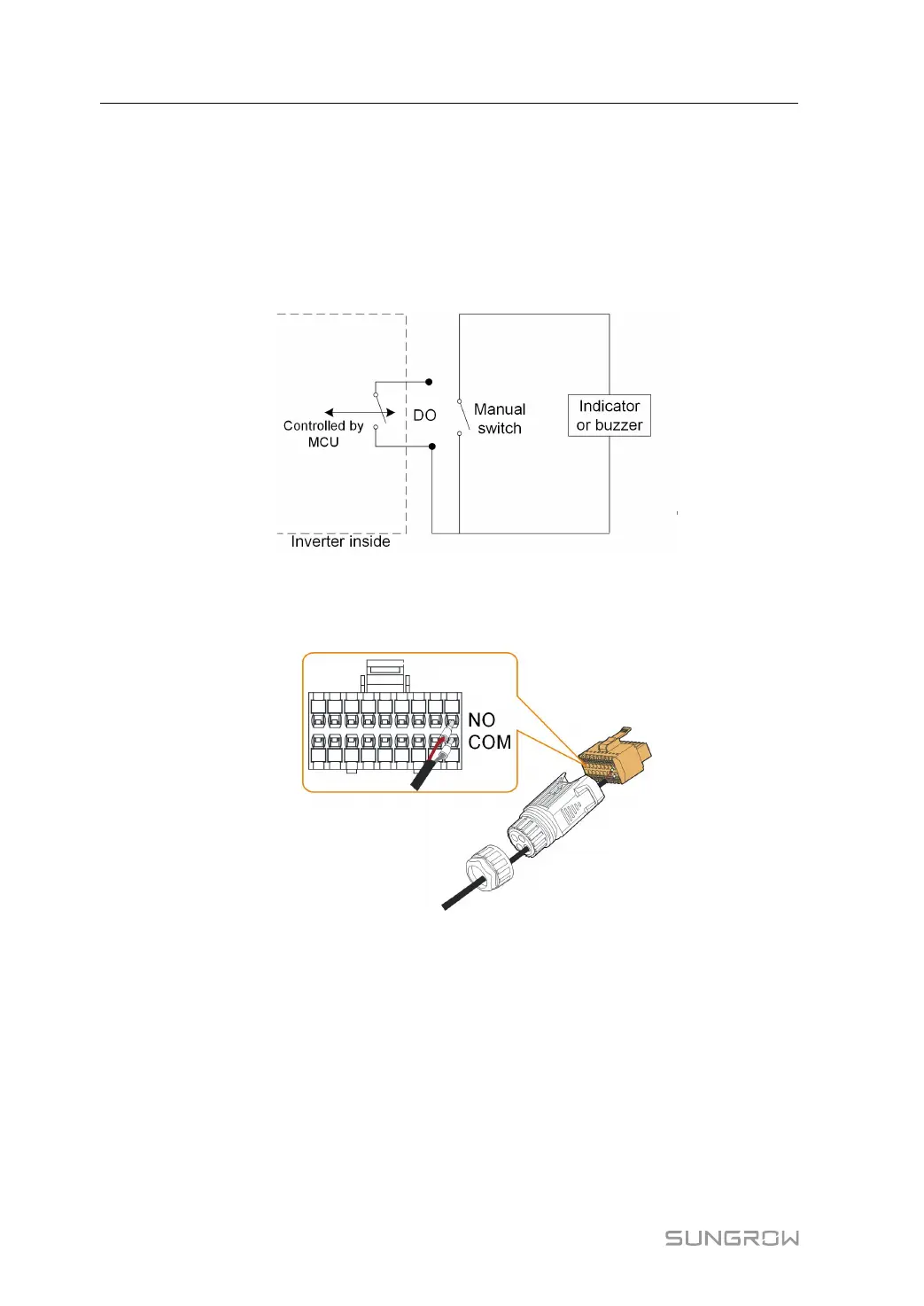

The inverter has integrated a DO relay for an earth fault alarm. The additional equipment
required is a light indicator and/or a buzzer that needs to be powered by an external
power not higher than 30 V DC.
Once the inverter receives the earth fault signal, the relay closes the contactor. The relay
remains triggered until the fault is removed.
Refer to section "5.8.1 Assembling the COM Connector" for detailed assembling
procedure. Plug the wires to NNOO and CCOOMM terminals according the labels on the bottom
of the inverter.
Refer to section "5.9.3 Installing the COM Connector" to install the connector.
5.12 DRM Connection
In Australia and New Zealand, the inverter supports the demand response modes as
specified in the standard AS/NZS 4777.
The following figure shows the wiring between the inverter and the external DRED.
5 Electrical Connection User Manual
