RJ45 crimping tool Vacuum cleaner Measuring tape Heat shrink tubing
Slotted
screwdriver
4.4 Moving the Inverter
Before installation, remove the inverter from the packing case and move it to the
installation site. Follow the instructions below as you move the inverter:
• Always be aware of the weight of the inverter.
• Lift the inverter using the handles positioned on both sides of the inverter.
• Move the inverter by at least two people or by using a proper transport tool.
• Do not release the equipment unless it has been firmly secured.
4.5 Installing the Inverter
Inverter is installed on the wall by means of wall-mounting bracket and the expansion
plug sets.

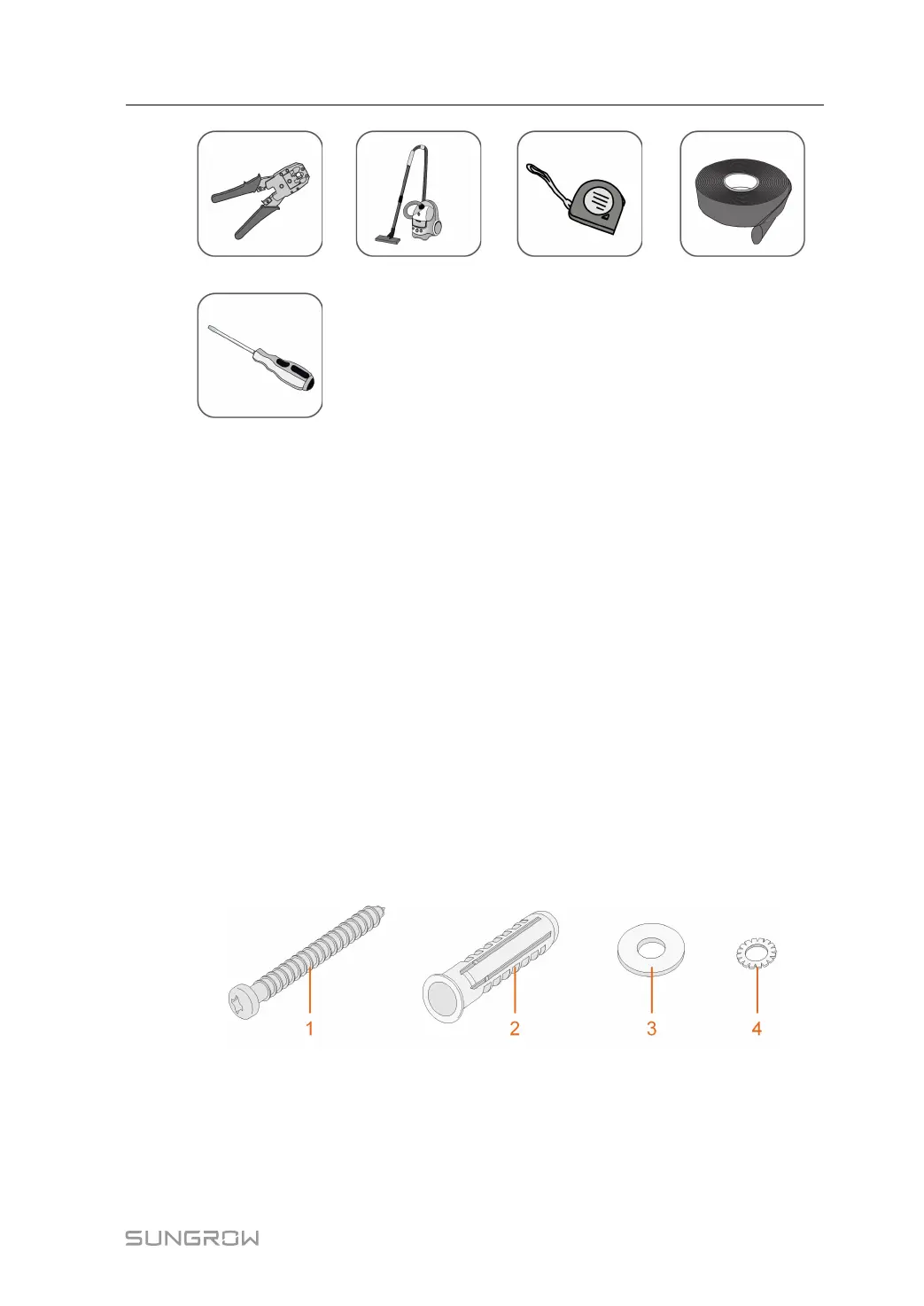

The expansion plug set shown below is recommended for the installation.
(1) Self-tapping
screw M6
(2) Expansion tube (3) Fender washer
(4) Spring washer
Step 1 Place the wall-mounting bracket to a proper position on the wall. Observe the level on
the bracket and adjust until the bubble is in the middle position. Mark the positions and
drill the holes.
