Sungrow SG5.0RT - Page 58

48

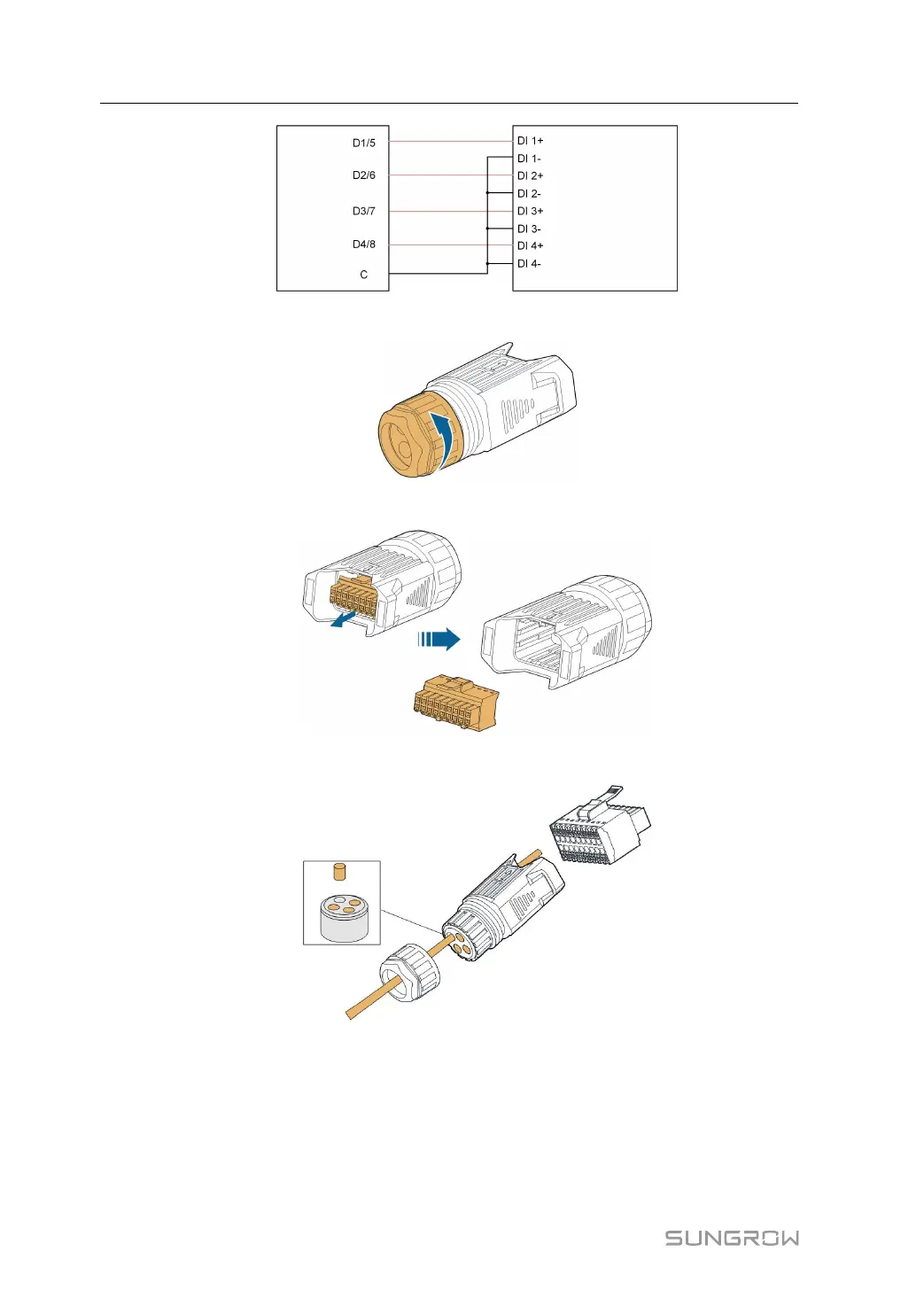

Step 1 Unscrew the swivel nut from the connector.
Step 2 Take out the terminal block.
Step 3 Remove the seal and lead the cable through the cable gland.
Step 4 Remove the cable jacket by 7 mm–10 mm. (DRM connection for example)
5 Electrical Connection User Manual
