26

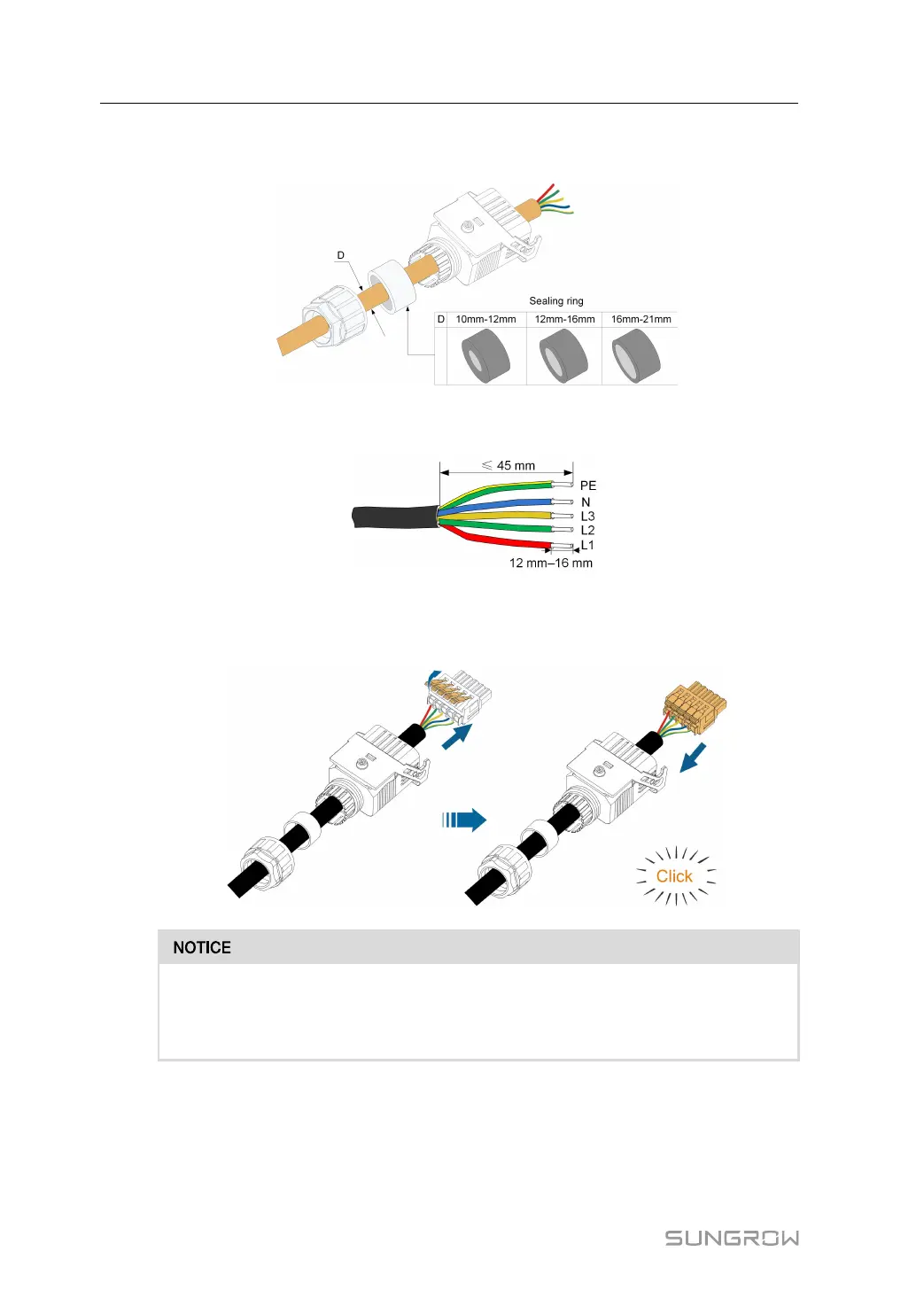

Step 3 Thread the AC cable of appropriate length through the swivel nut, the sealing ring and
the housing.
Step 4 Remove the cable jacket by less than 45 mm, and strip the wire insulation by 12 mm–
16 mm.
Step 5 Open the clamp on the terminal plug and fully insert the wires into the corresponding
holes. Then close the clamp and push the terminal plug into the housing until there is an
audible click.
Observe the plug assignment. Do not connect any phase line to the "PE"
terminal or PE wire to "N" terminal. Otherwise, unrecoverable damage to the
inverter may follow.
Step 6 Ensure that the wires are securely in place by slightly pulling them. Tighten the swivel
nut to the housing.
5 Electrical Connection User Manual
