38

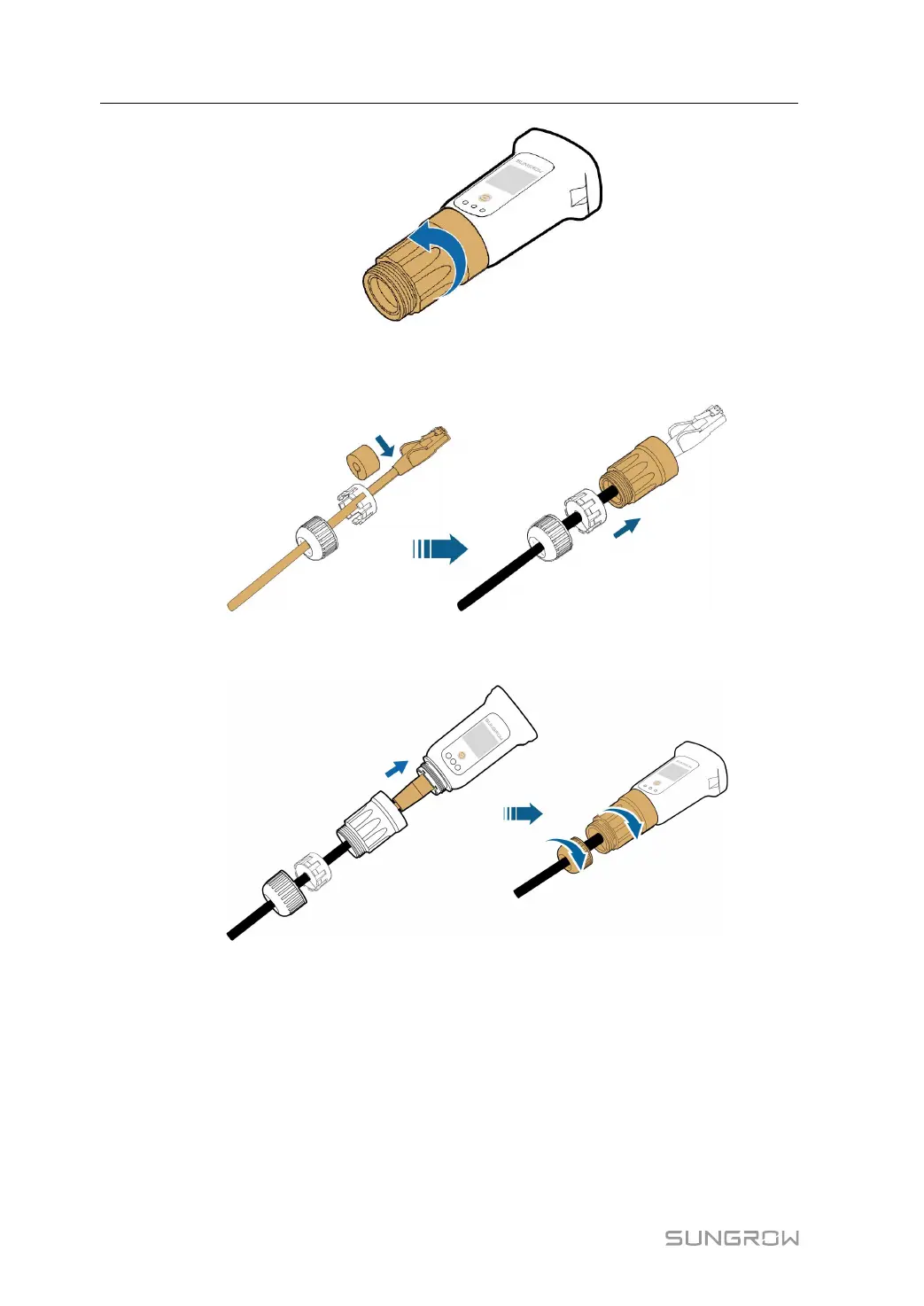

Step 4 Thread the network cable through the swivel nut, the gasket, then route it into the
opening of the sealing ring and thread through the housing.
Step 5 Insert the RJ45 plug into the front plug connector until there is an audible click and
tighten the housing. Install the gasket and fasten the swivel nut.
Step 6 Unscrew the waterproof lid from the CCOOMM11 terminal.
Step 7 Install WiNet-S to CCOOMM11 terminal.
5 Electrical Connection User Manual
