41

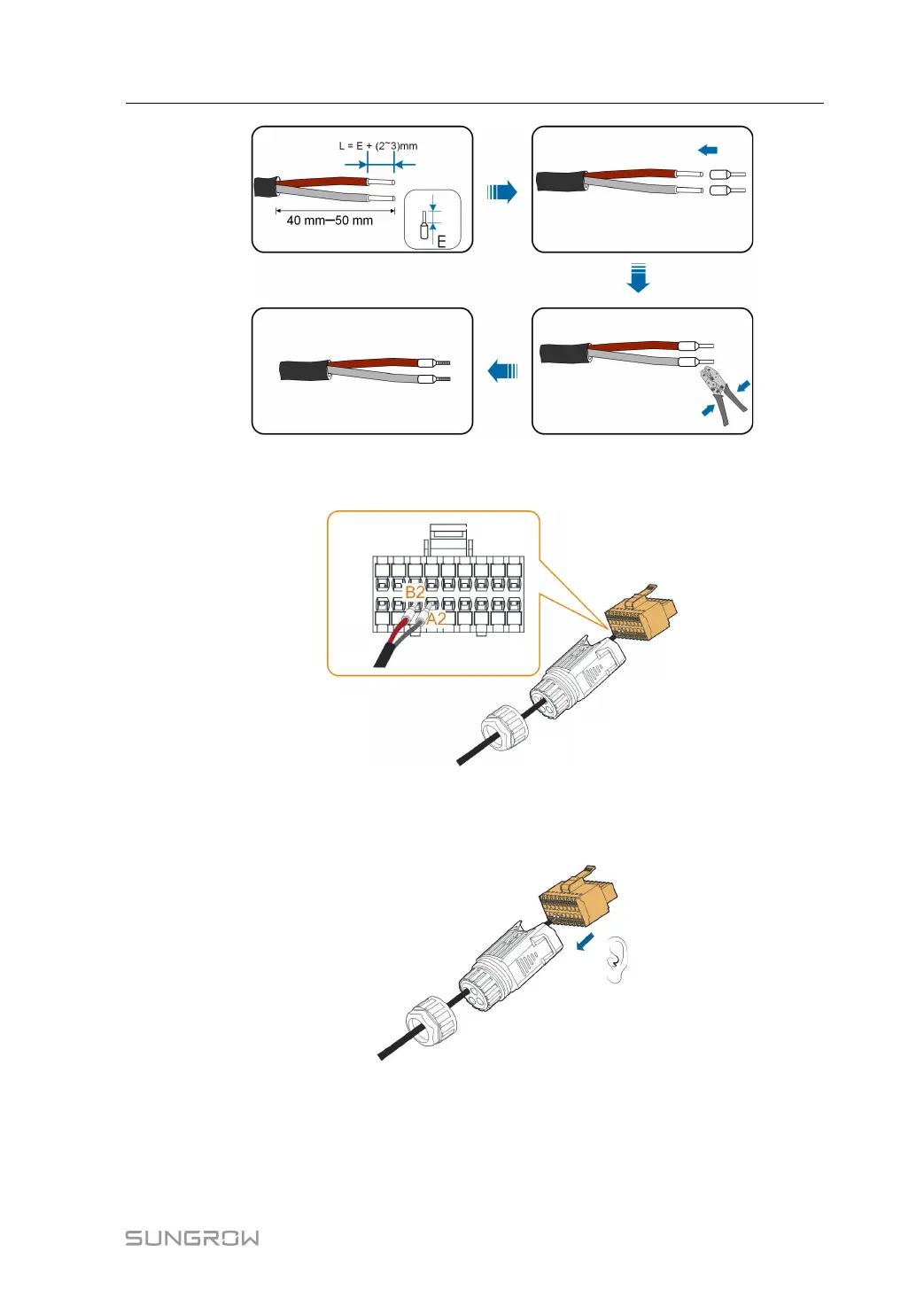

Step 6 Plug the wires or terminals into the corresponding terminals as shown in the following
figure.
FFiigguurree 55--55 A2, B2 connection
Step 7 Ensure that the wires are securely in place by slightly pulling them and insert the
terminal plug into the housing until there is an audible click.
Step 8 Fasten the swivel nut.
User Manual 5 Electrical Connection
