2.3 Retrofitting the Existing PV System
The SH5K hybrid inverter is compatible with any single-phase PV grid-connected
inverters. An existing PV system can be retrofitted to be a PV ESS with the addition
of SH5K.
The power generation from the existing PV inverter will be firstly provided to the
loads and then charge the battery. With the energy management function of the
SH5K, the self-consumption of the new system will be greatly improved.
STB5K
Emergency
appliance
Home appliance
SH5K
AC
PV inverter

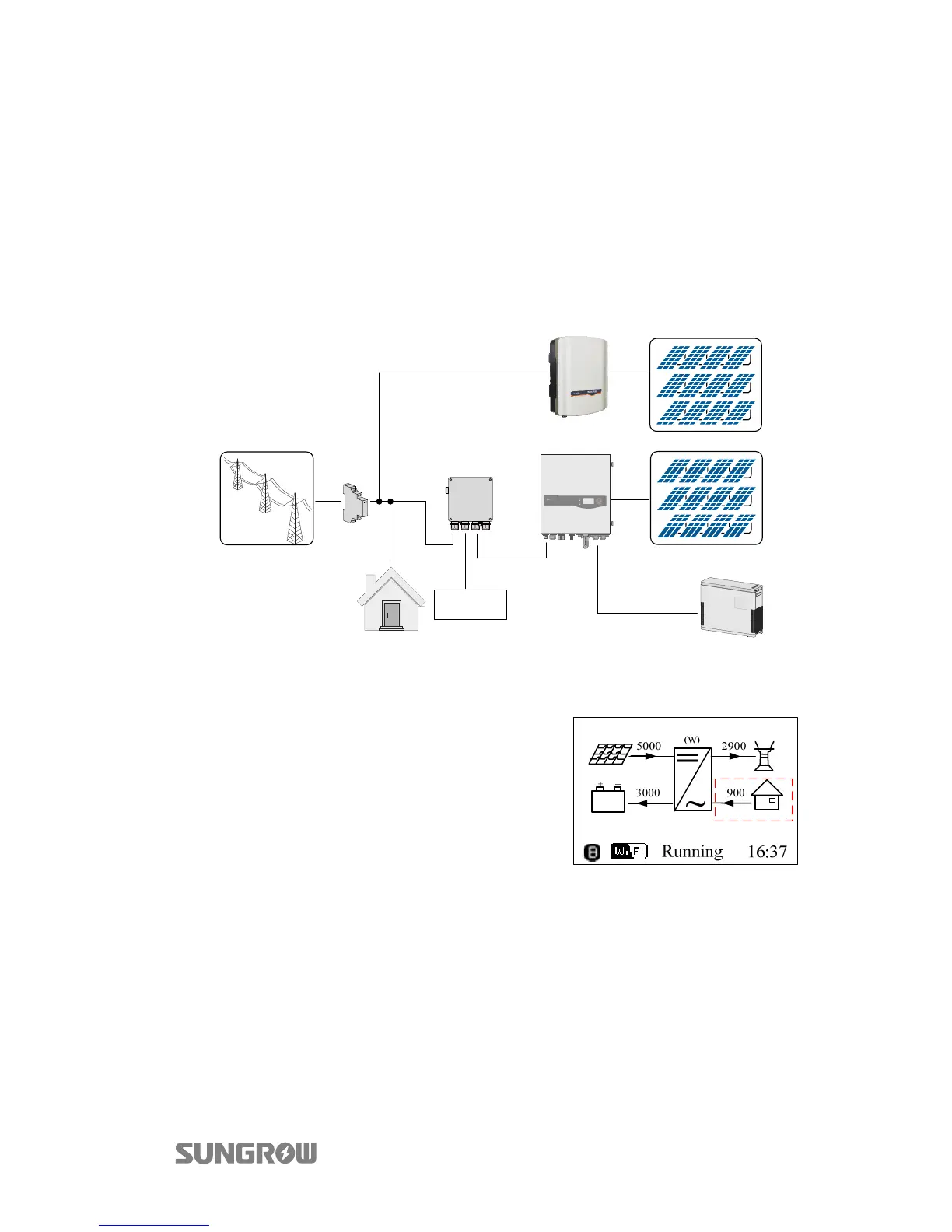

Fig. 2-7 Retrofitting the Existing PV System
* Just connect the STB5K to provide the backup function for off-grid application.
T
he existing PV inverter provides power to the
SH5K PV ESS, as the power flow shown on the
main screen.
Refer to “10.7.11 Adding the Existing System”
to set the rated power of the existing PV
inverter.
The output power of the existing PV inverter should be taken into consideration for
export power setting. For detailed settings, see “10.7.3 Setting the Zero-export
Function”.
