User Manual 5 Mechanical Mounting
27

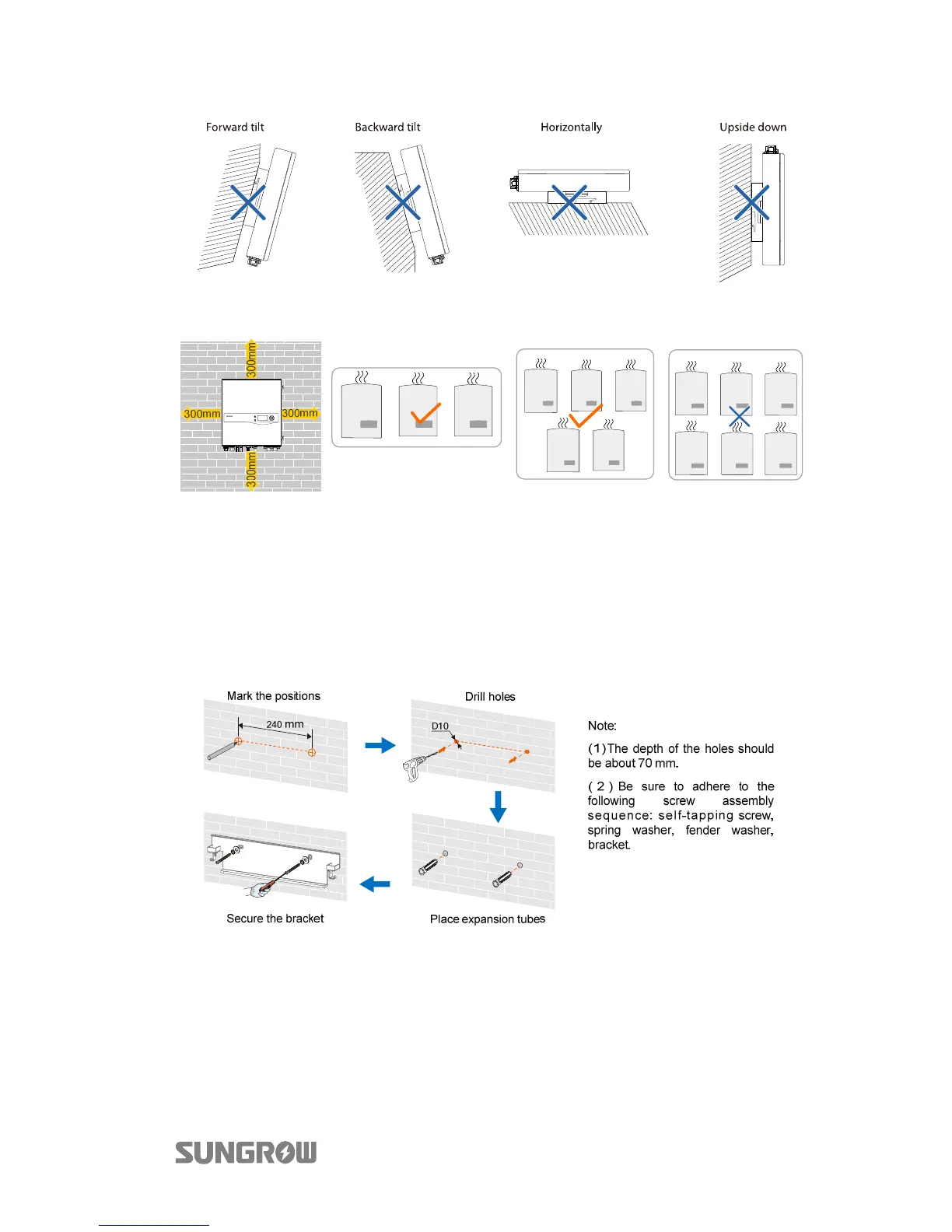

10. Clearance requirement and multiple installation:
5.2 Installing the Inverter
Install the inverter on the wall by means of the wall-mounting bracket and
expansion plug sets as follows:
1. Install the wall-mounting bracket.
2. Mount the inverter to the
bracket.
3. Secure the inverter with two M5
screws and washers. (3.0 Nm)
To Next Page
