User Manual 5 Mechanical Mounting
29
5.4 Installing the Meter
The SUNGROW meter should be installed between the grid and the load. It supports
a 35 mm DIN-rail installation, as shown in the following figure.

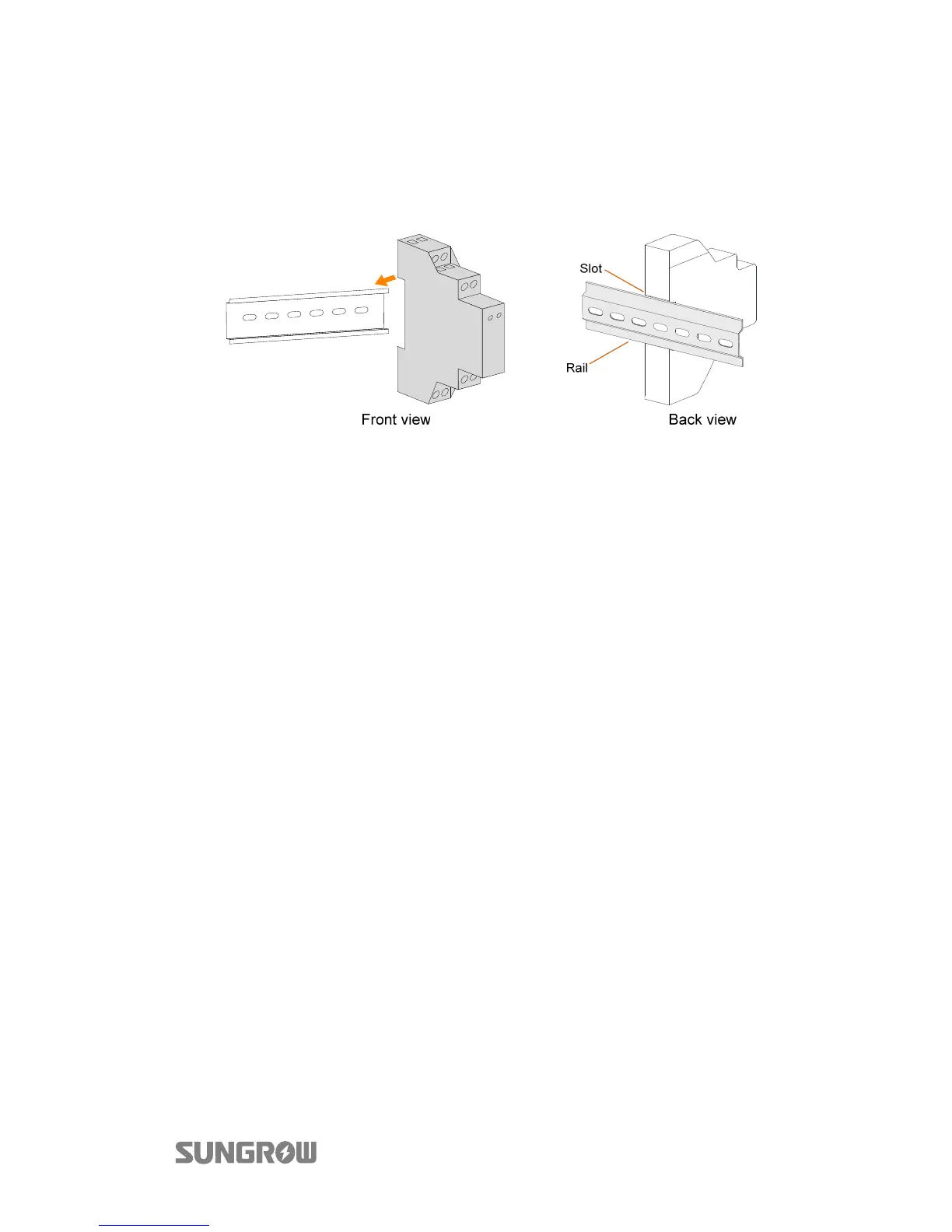

Fig. 5-2 Installing the Meter to the Rail
