4.2 Delivery Contents
Inverter
Wall-mounting bracket
Energy meter and CT cable
Expansion plug set (x2)
PV connectors (x2)
a
CAN cable (battery)
AC connector set
Documents
Key to the front cover
Power supply cable (meter)
RS485 cable (meter)
OT25-6 terminals
c
d
M5 screws and washers
Copper bar
b

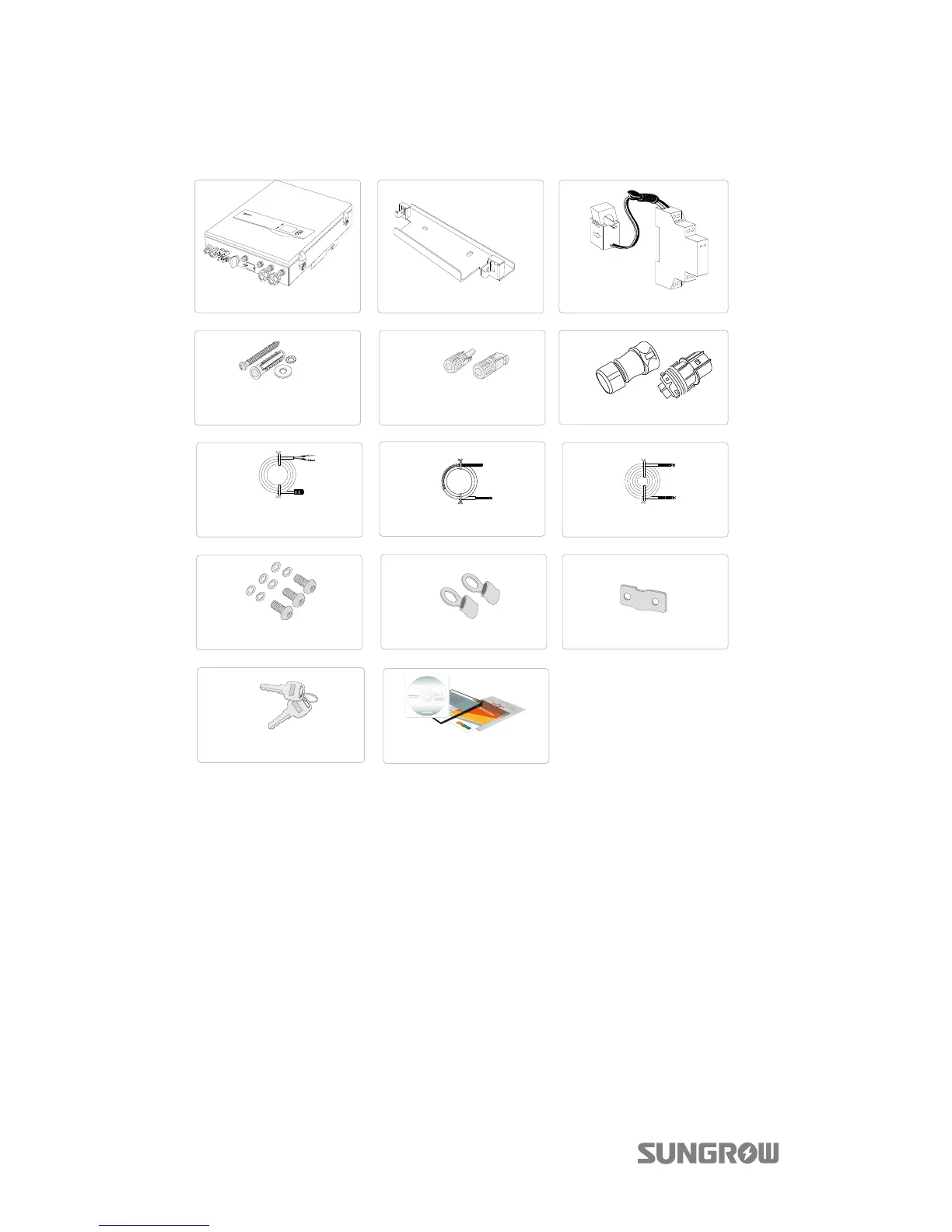

Fig. 4-2 Delivery Contents
a) Each set includes a self-tapping screw, a spring washer, a fender washer, and an
expansion tube.
b) One is for external grounding and the other two are for securing the inverter.
c) Only qualified personnel are allowed to use the key.
d) The documents include the Quick User Manual, 1 CD, quality certificates,
packaging list and product test reports.
