Meter
The SUNGROW single-phase energy meter is installed next to the main switch to
measure the export power, grid voltage and current. It communicates with the
inverter through an RS485 connection. The dimensions are shown below.

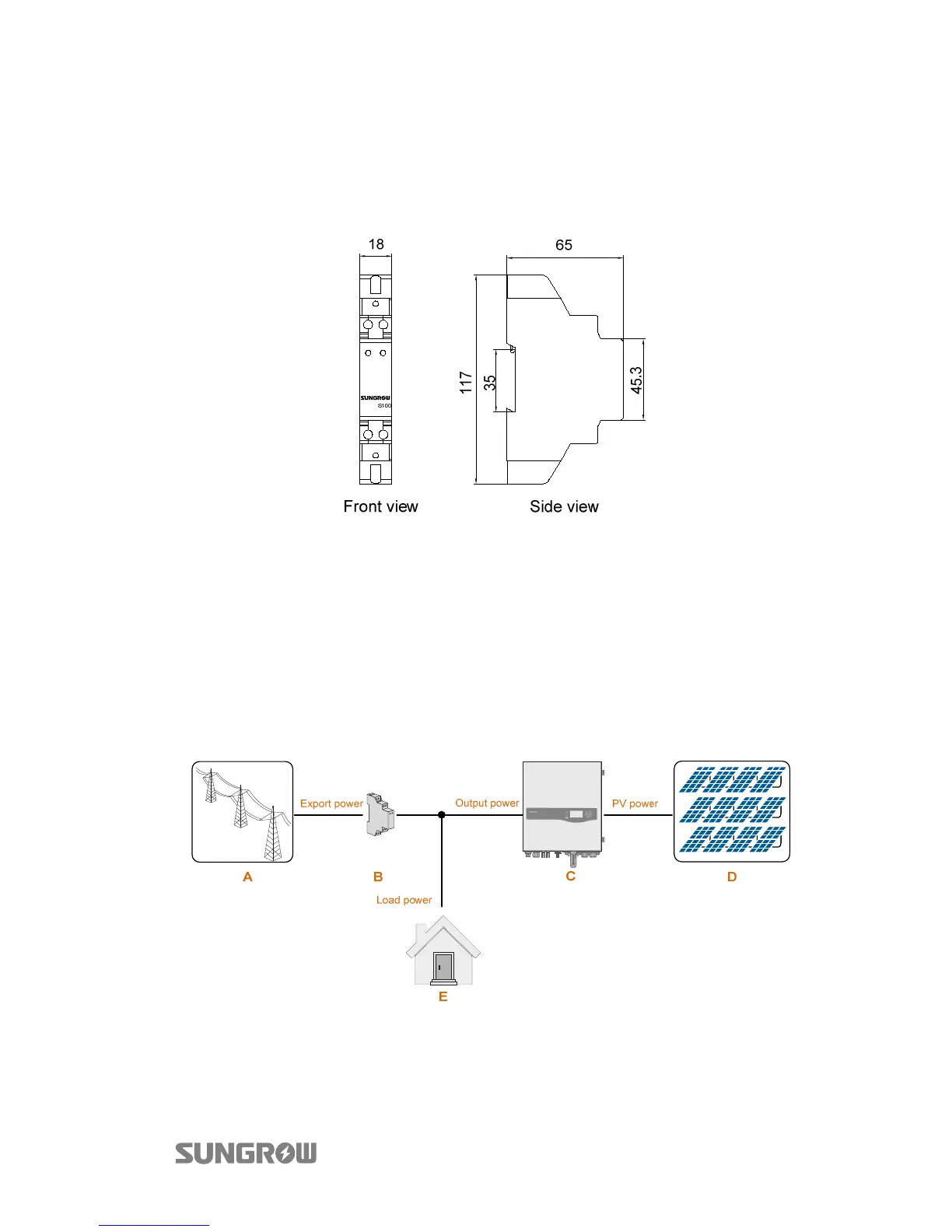

Fig. 2-4 Meter Dimensions (unit: mm)
2.1 On-grid System
2.1.1 Conventional PV Grid-connected System
In a conventional Photovoltaic (PV) system, by setting the upper limit, the export
power will always be within the specified range. For example, if the export power is
set to zero, the system would be a zero-export system.
Fig. 2-5 Conventional PV System

Sungrow SH5K Specifications

General

Model	SH5K
Rated Power	5 kW
Max. AC Apparent Power	5.5 kVA
Max. Output Power	5 kW
Number of MPP Trackers	2
THD	< 3%
Max Efficiency	98.4%
Cooling Method	Natural convection
Protection Class	IP65
Rated Output Voltage	230 V
Output Frequency	50 Hz / 60 Hz
Power Factor	0.8 leading to 0.8 lagging
Operating Temperature Range	-25°C to 60°C
Communication	RS485
