Sungrow SH5K - Installing the AC Connector

User Manual 6 Electrical Connection
35
Observe the terminal layout of terminal block.
Do not connect the phase lines to “PE” terminal, otherwise the inverter
will not function properly.

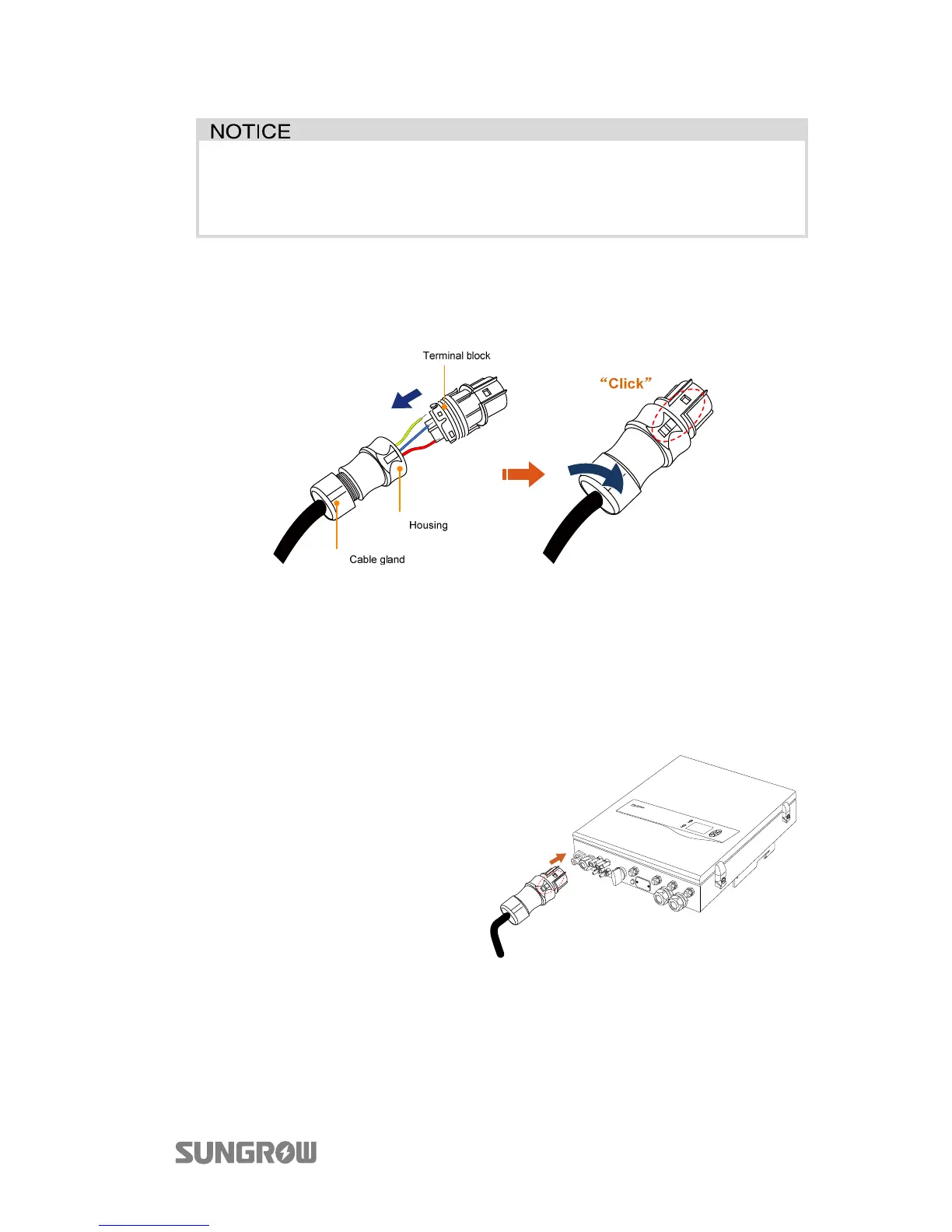

4. Assemble the housing, the terminal block and cable gland. Make sure that
the rib of the terminal block and the groove on the housing engage
perfectly until a “Click” is heard or felt.
6.3.3 Installing the AC Connector
Procedure:
1. Install an AC circuit breaker (recommended specification 32 A) at the AC
output of the inverter.
2. Disconnect the AC circuit breaker and secure it against reconnection.
3. Align the AC connector and
the AC terminal and mate
them together by hand until
a “Click” is heard or felt.
4. Connect the other ends. Connect “PE” conductor to the grounding electrode.
Connect “L” and “N” conductors to the AC circuit breaker.
5. Pull all the lines outward to check whether they are firmly installed.
