6 Electrical Connection User Manual
42
6.6 Battery Connection
This section mainly describes the cable connections on the inverter side. Refer to the
instructions supplied by the battery manufacturer for the connections on the
battery side.
A fuse with the specification of 150 V/125 A (type: Bussmann BS88 125LET) is
integrated to the BAT- terminal.
Only use properly insulated tools to prevent accidental electric shock or
short circuits. If insulated tools are not available, use electrical tape to cover
the entire exposed metal surfaces of the available tools except their tips.
6.6.1 Connecting the Power Cable
Cable Requirements
Cross-section: 16 mm
2
–25 mm
2
, OT25-6, cable diameter: 13 mm–16 mm.

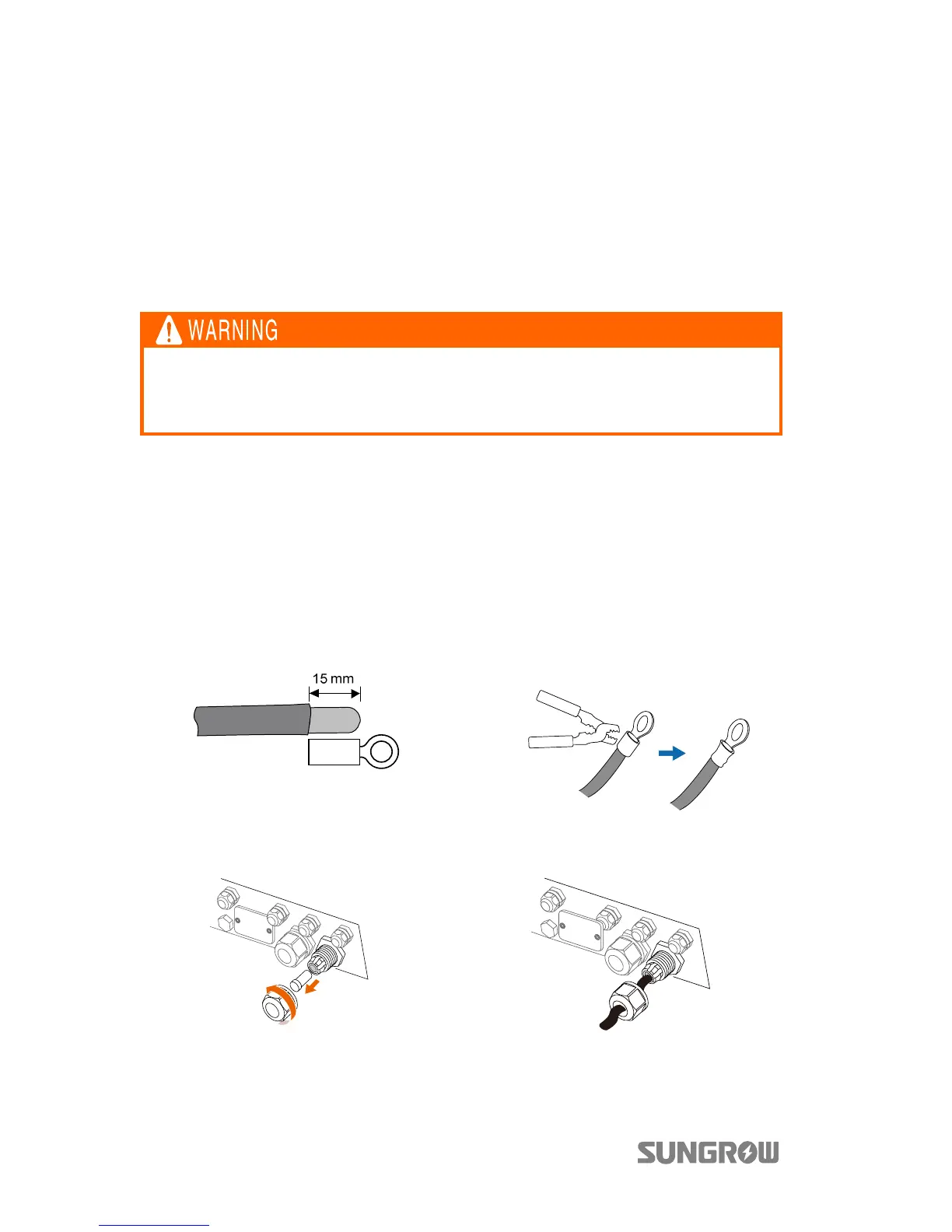

Procedure:
1. Remove the battery cable
jacket, as shown below.
2. Crimp the OT terminal and
install the heat shrinkable
casing, as shown below.
3. Unscrew the swivel nut from
the BAT+ and BAT- ports.
4. Lead the cable through the
cable gland, as shown below.
