14

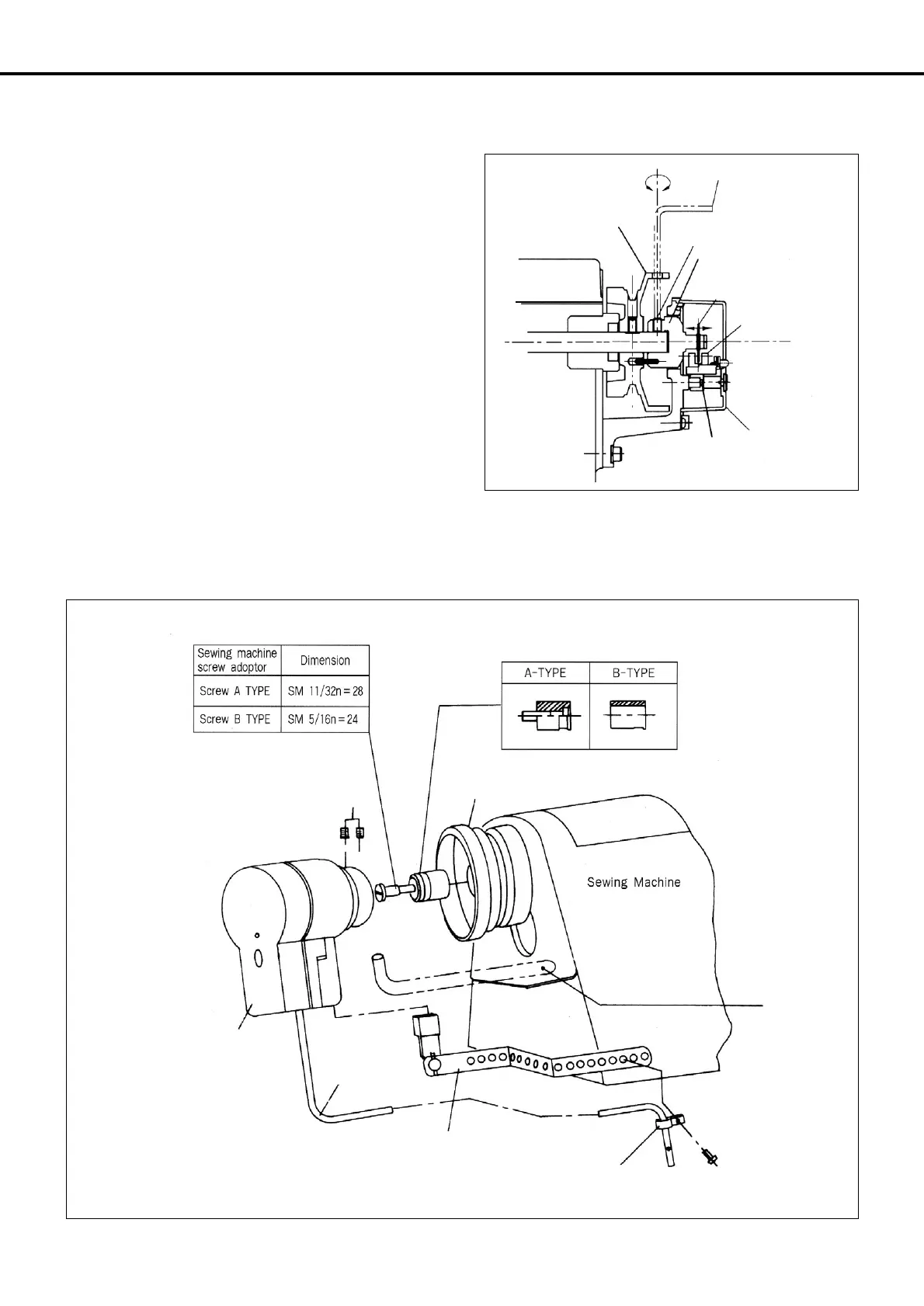

4) Mounting the position sensor (Synchronizer) and
setting the film
(1) Mounting the position sensor(Synchronizer)
SunStar thread-cutting sewing machine.
All SunStar thread-cutting sewing machines are equipped
with a position sensor. Users, therefore, are required to the
adjust the film position, if necessary, as shown in the figure.
All other sewing machines(including other manufacturers’ brands)
First, attach the position sensor-mounting adapter to the upper shaft of the sewing machine. Second, attach the position sensor-fixing
plate to the body of the sewing machine as shown below in the figure. Third, secure the position sensor to the adapter with the fixing
screws.
L Wrency
Pulley
Synchro shaft-fixing screw(2)
Synchro shaft
Photo film
(Adjusted left and right)
Photo INTERRUPT
COVER
Upper Shaft
P.C.B Holder
Adapter
Position Sensor-Fixing Bolts
Position Sensor
Cable
Position Sensor-Fixing Plate(Type B)
Nylon Cable Tie
Fiixing Bolt for Position
Sensor-Fixing Plate
Position Sensor-
Fixing Plate(Type A)
Pulley
