15

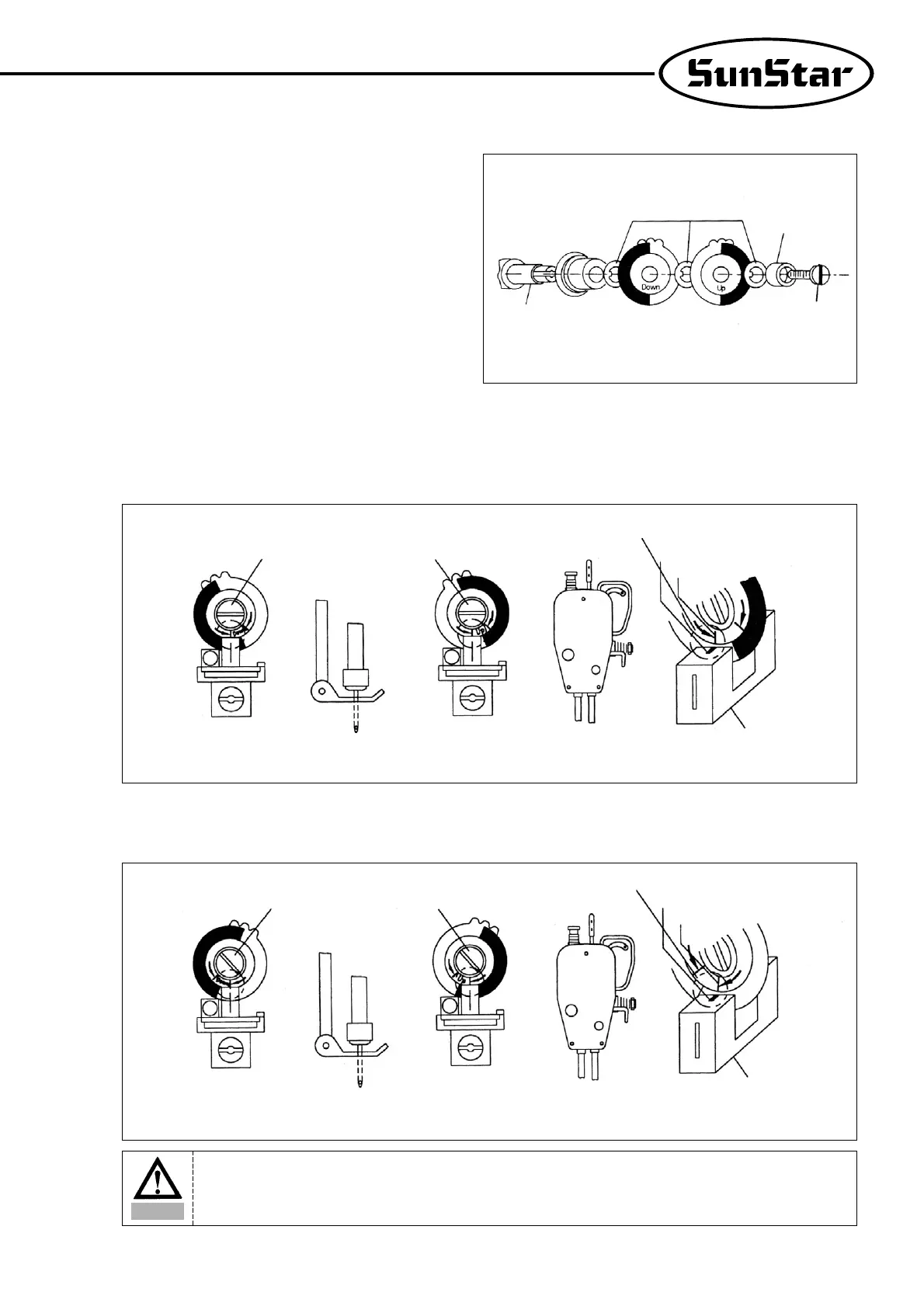

(2) Adjusting the film of the position sensor
① Assemble the films and position sensor in the order as shown
in the figure.
② Upon the completion of the assembling, position the needle shaft tight at the rising point from the lowest needle position by manually
rotating the pulley. Loosen the film-fixing screw, and adjust the DOWN film so that the film-adjsting line and the sensor housing
calibration line are matched. Tighten the film-fixing screw just to the extent that the film can not be rotated. Likewise, position the thread
take-up at the highest position. Loosen the film-fixing screw, and adjust the UP film as shown in the figure, while using caution not to
move the DOWN film which is already adjusted earlier. Tighten the adjusted film with the fixing screw.
(3) Adjustion the films of reverse rotation sewing machines
※For reverse-rotation sewing machines, the film-adjusting lines located at right edge of the “UP”and “DOWN”film should be matched to
the center line of the sensor.
Fixing Washer
Fixing Bushing
Film-Fixing Screw
Position Sensor Shaft
Fixing Nut Fixing Nut
Fixing NutFixing Nut
Setting Position
Setting Position
Sensor Calibration Line
Sensor Calibration Line
Film-Adjusting Line
Film-Adjusting Line(Reverse Rotation)
Sensor Housing
Sensor Housing
The highest position
of take-up lever
The highest position
of take-up lever
Up Film Adjustment
Up Film Adjustment
Down Film Adjustment
Down Film Adjustment
2mm turning around
from the lowest
position of needle bar
2mm turning around
from the lowest
position of needle bar
Caution
After adjustment the film of the position detector, be sure to rotate the motor for 3~5 seconds by pedalling so
that the Controller may remember location of the film.
