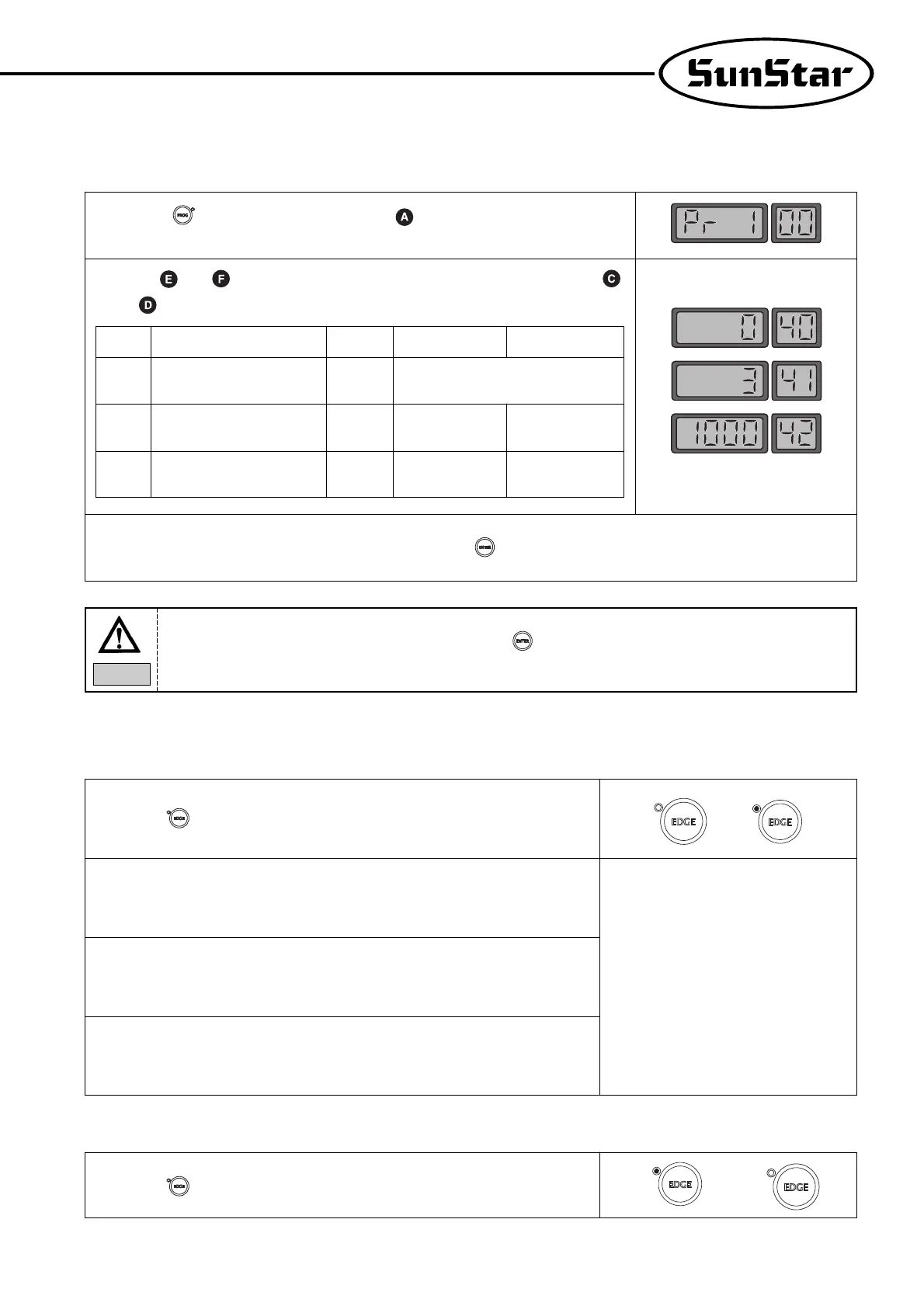

(4) Use of Detailed Edge Sensor Functions
While the button is being pressed, press the button to enter the Parameter Group
A. (Entry into the parameter group is allowed only after trimming.)
Use the and buttons to set the parameter numbers subject to revision. Use the
and buttons to change parameter values.
Change each parameter value and save the new value by pressing the button.
A-Group
Function
41
42
43
Sensor type select
After the edge is sensed, set the stitch
count to proceed
After the edge is sensed, set the sewing
speed for the stitches.
0
3[stitches]
1000[rpm]
0 : When the edge is sensed, 5[V] output(Active High)
1 : When the edge is sensed, 0[V] output(Active Low)
0~255[stitches]
20~2000[spm]
1[stitches]
10[spm]
Initial Value
Scope Stage
1. Note that a new value is not saved without pressing the button after parameter value reset.
2. If the system is initialized, all data is recovered back to the initial values.
Caution
(5) Edge Sensor Motion
(6) Deactivating Edge Sensor
Press the button to activate the edge sensor.
If the edge sensor is activated, when the sewing material edge is detected, the sewing
is suspended (distance between the needle and the sewing material edge: some
20[mm]).
When the sewing is suspended as in , move the pedal from “Neutral” to “Forward”
and then the sewing is resumed at the stitch count set at Parameter A-42 at the speed
set at Parameter A-43.
After completing the process and conducting trimming (pedal backward), the
backtack sewing for finish (in the case where the backtack lamp is blinking) and
trimming are performed in order.
Press the button to turn off the lamp and then the edge sensor is deactivated.
