1) Program unit part names
2) Program Unit Method of Use
(1) 4-Digit Displayer and 2-Digit Displayer Functions and Method of Use
A. 4-Digit Displayer and 2-Digit Displayer Functions
PROGRAM UNIT PART NAMES AND METHOD OF USE
88
① When you turn the power on, you will see a screen as shown in the figure.
The 4-digit displayer shows the start and end B/T sewing and the 2-digit
displayer shows the current abbreviation for the letters or numbers shown in
the 4-digit displayer (bt: the abbreviation for back tack),
<Initializing screen>
<Example of error detection>
<Example of selection of number 2 item in Group A>
② The 4-digit displayer shows the error number for each type of error
discovered and also shows the programmed value after it has been
programmed. The 2-digit displayer shows the number of the parameter
specific item's content or name which is shown in the 4-digit displayer.

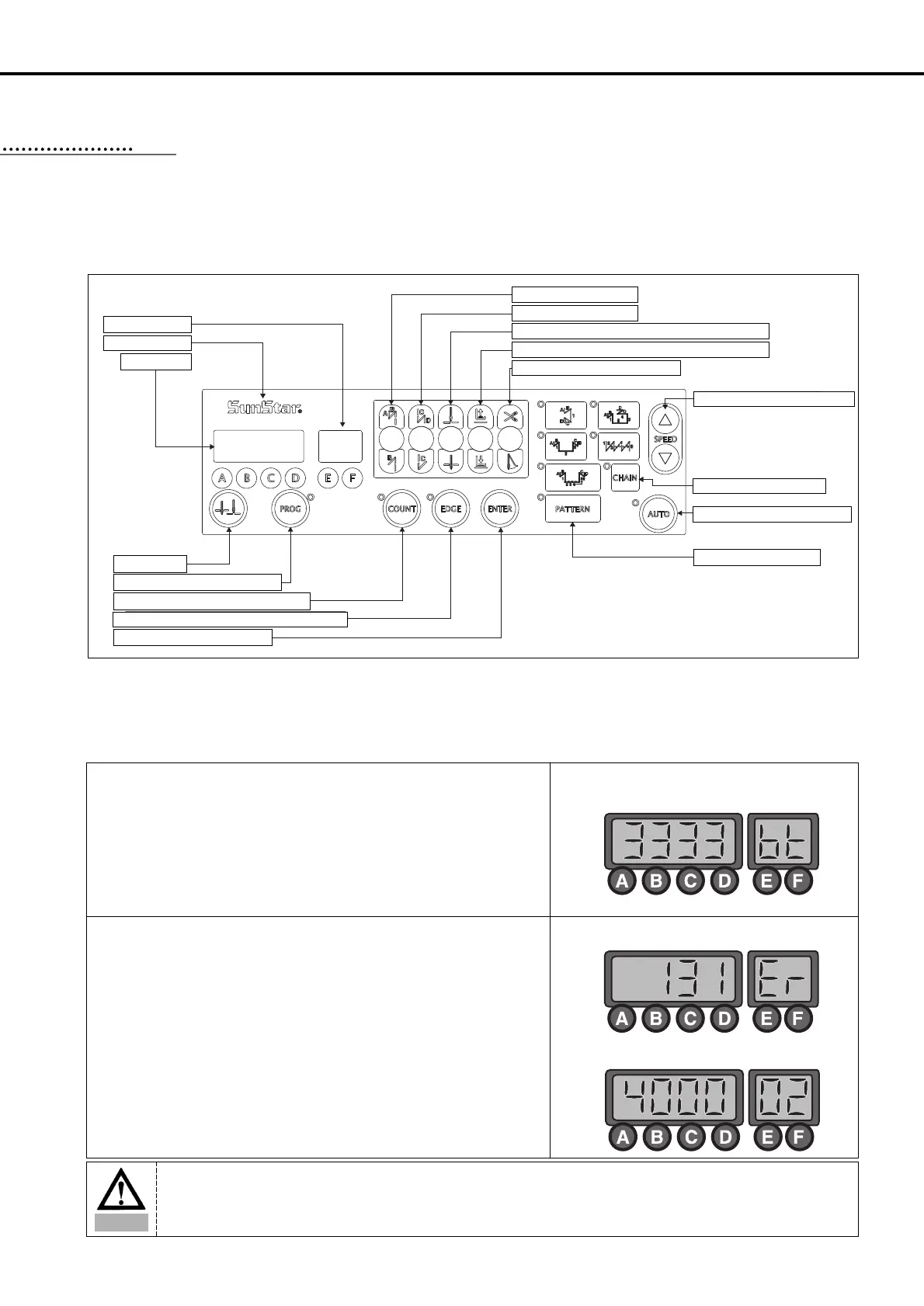

2--Digit Displayer
Sunstar Logo
4-Digit Displayer
1/2 Stitch Button
Button for Program Change
Button for Counter Use after Counter Programming
Button to use Edge Sensor Selection after Edge Sensor Programming
Button to Save Program Changes
Pattern Work Selection Button
Start B/T Selection Button
End B/T Selection Button
Button to Select Needle Plate Location When Machine Stops
Button to Select Presser Foot-lift Location When Machine Stops
Thread-trimmer and Wiper Selection
Button to Change the Sewing Speed Installation
Pattern Work Connecting Button
Constant Sewing Speed Selection Button
Caution
The 4-digit displayer and 2-digit displayer show the current condition. Therefore the user should always check it
before using the machine.
