1-3
Chapter 1: Introduction

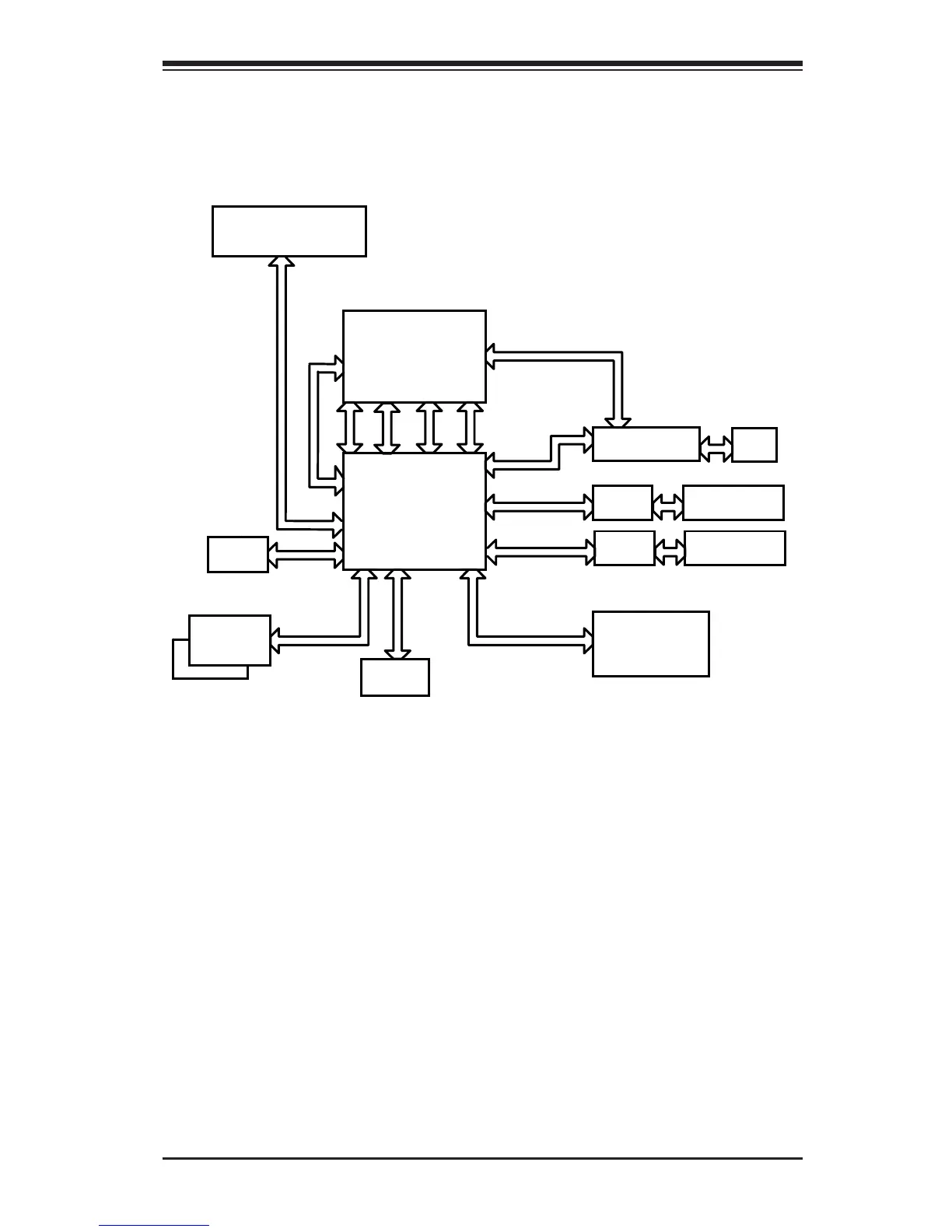

1-2 WPCM450 Block Diagram
The following diagram represents a typical system setup for the WPCM450 Con-
troller.
WPCM450
Sensors
DDR2
LPC
SPI
Serial Port
South Bridge
PCI
USB
1.1
USB
2.0
Ethernet CTRL
RMII
RJ45
PROCESSOR
RS232
Serial Port
NOR Flash
PECI
Wake-up & CTRL
VGA
PCI-E
PHY
Onboard LAN1
RJ45
Dedicated LAN
RMII
1-3 Introduction to the IPMI Platform
The Intelligent Platform Management Interface (IPMI) provides remote access to
multiple users at different locations for networking. It also allows a system admin-
istrator to monitor system health and manage computer events remotely.
IPMI operates independently from the operating system. When used with an IPMI
Management utility installed on the motherboard, the WPCM450 BMC Controller will
connect the South Bridge to other onboard components, providing remote network
interface via serial links. With the WPCM450 Controller and the IPMI rmware built
in, the Supermicro motherboard allows the user to access, monitor, diagnose, and
manage a remote server via Console Redirection. It also provides remote access to
multiple users from different locations for system maintenance and management.
