IntelliShot & FlexoShot: Operations Manual Page 9
3. Locate the top ring on the bag fitment (i.e., the ring closest to the bag). Slide the top ring
of the fitment into the product case opening so that it is resting on the product case floor.
Do not use the lower ring.

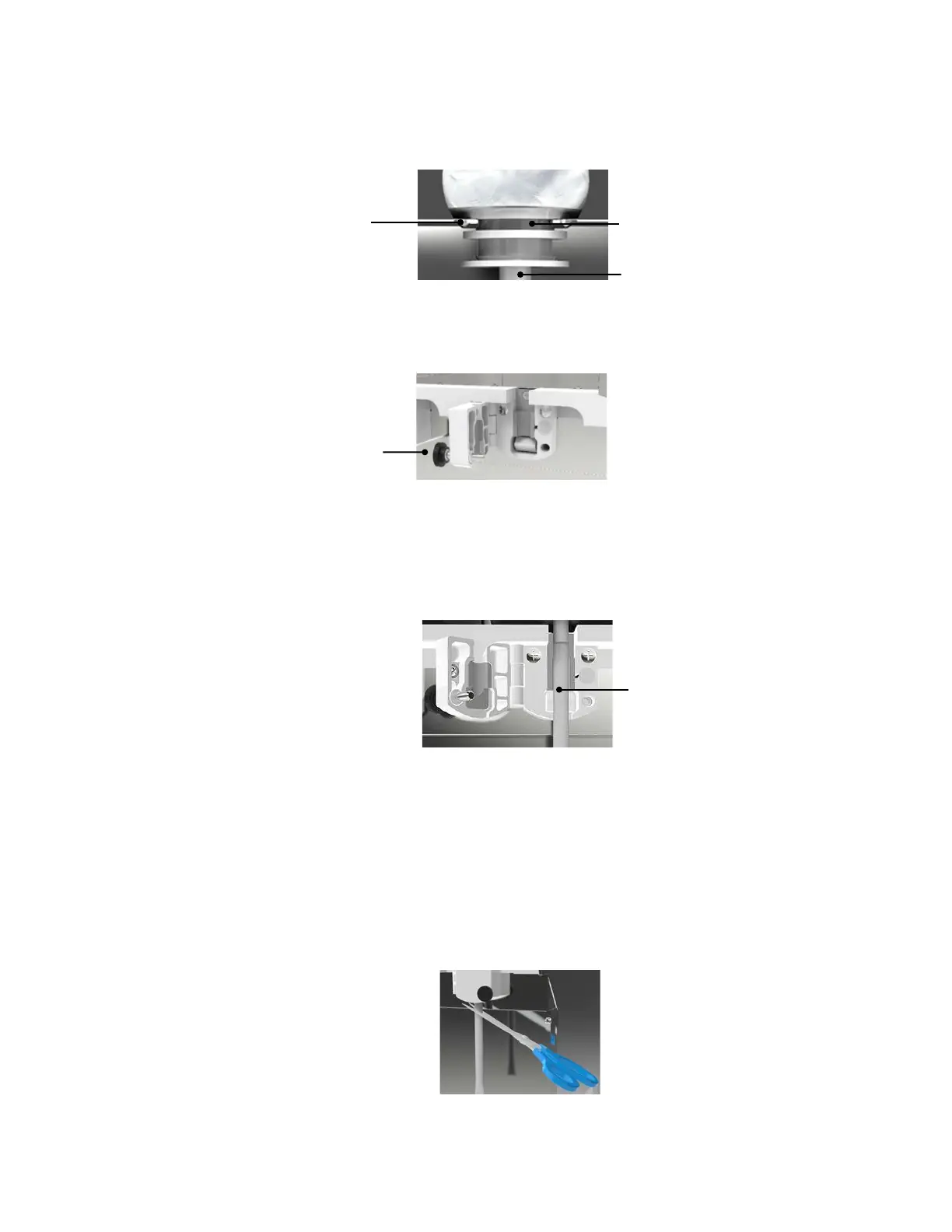

Figure 9: Dairy bag fitment secured on product case floor
4. Open the dispenser door.
5. Open the valve door by turning the thumbscrew counterclockwise.
Figure 10: Open valve door
6. Install the product case in the product compartment above the correct valve with the tube
facing out.
7. Centre the tube in the valve opening. Remove and discard the plastic covering if present.
The tube should not be twisted, kinked, or pinched.
Figure 11: Correct tube placement
8. Fold up the tube and pinch it just below the valve. This will push product out of the tube
and up into the bag.
9. While holding the tube, close the valve door and turn the thumbscrew clockwise until the
valve door is secure and the plunger activates, making a sound. Do not over-tighten the
thumbscrew. Release the tube.
10. Using sanitized, sharp scissors, carefully cut the tube at a 45-degree angle to a maximum
length of 5/8-inch (1.5 cm) from the bottom of the valve door. Discard the cut portion of
the tube.
Dispense tube
Figure 12: Cutting the tube
case floor
top ring
To Next Page
