Suzuki DR650SE User Manual

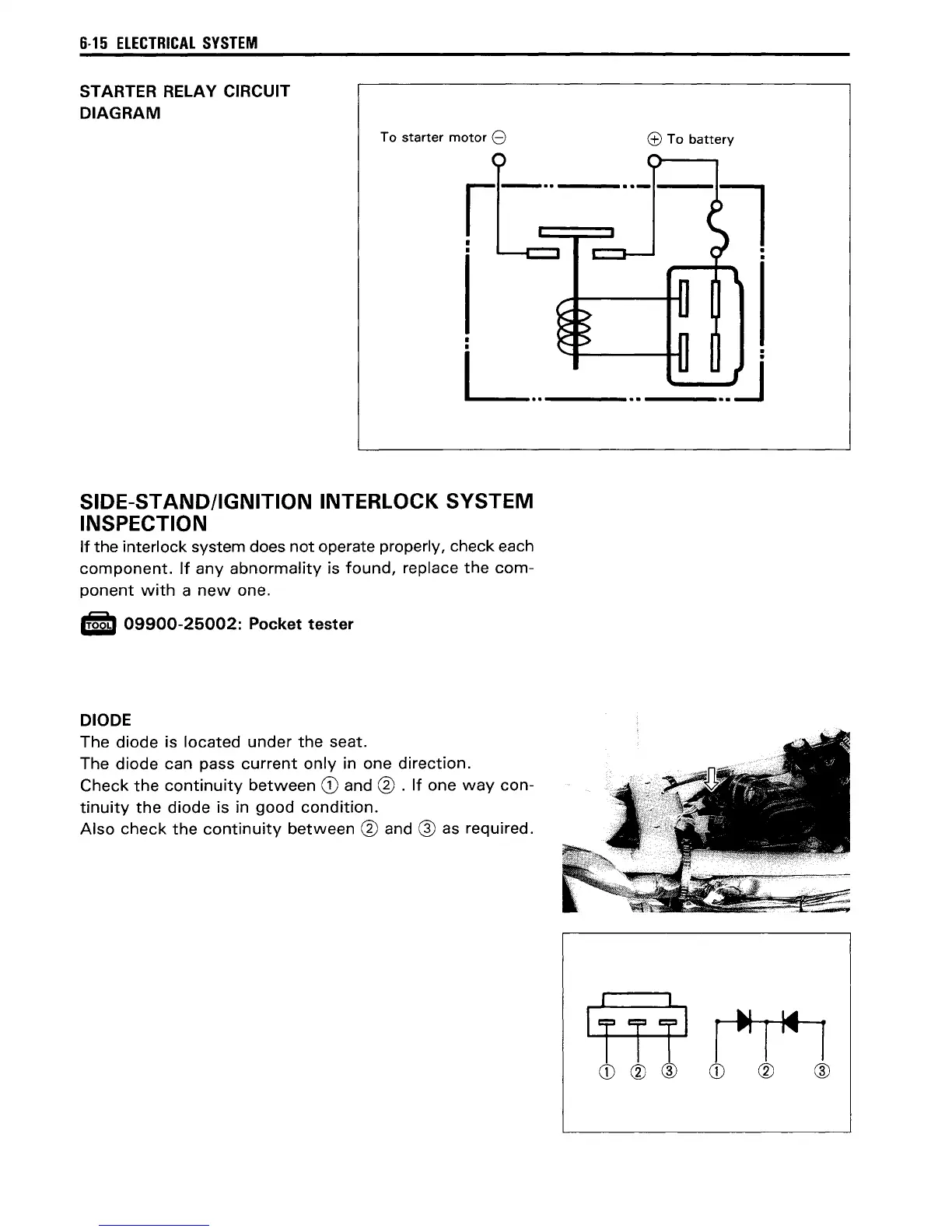

6·15 ELECTRICAL SYSTEM
STARTER RELAY CIRCUIT
DIAGRAM
To starter motor 8
•
•
L .. _
SIDE-STAND/IGNITION INTERLOCK SYSTEM
INSPECTION
If the interlock system does not operate properly, check each
component. If any abnormality is found, replace the com-
ponent with a new one .
• @'u 09900-25002: Pocket tester
DIODE
The diode is located under the seat.
The diode can pass current only in one direction.
Check the continuity between CD and @ . If one way con-
tinuity the diode is in good condition.
Also check the continuity between @ and @ as required.
(f) To battery

Suzuki DR650SE Specifications

General

Bore x Stroke	100.0 mm x 82.0 mm
Compression Ratio	9.5:1
Fuel System	Mikuni BST40 carburetor
Ignition	Electronic ignition (CDI)
Transmission	5-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Front Tire	90/90-21
Rear Tire	120/90-17
Curb Weight	166 kg (366 lbs)
Starter	Electric
Engine Type	4-stroke, air-cooled, SOHC
Front Brakes	Disc brake
Rear Brakes	Disc brake
Fuel Tank Capacity	13.0 L (3.4 US gal.)
Overall Width	865 mm (34.1 in)
Ground Clearance	265 mm (10.4 in)
Seat Height	885 mm (34.8 in.)
Rear Suspension	Link type, coil spring, oil damped
