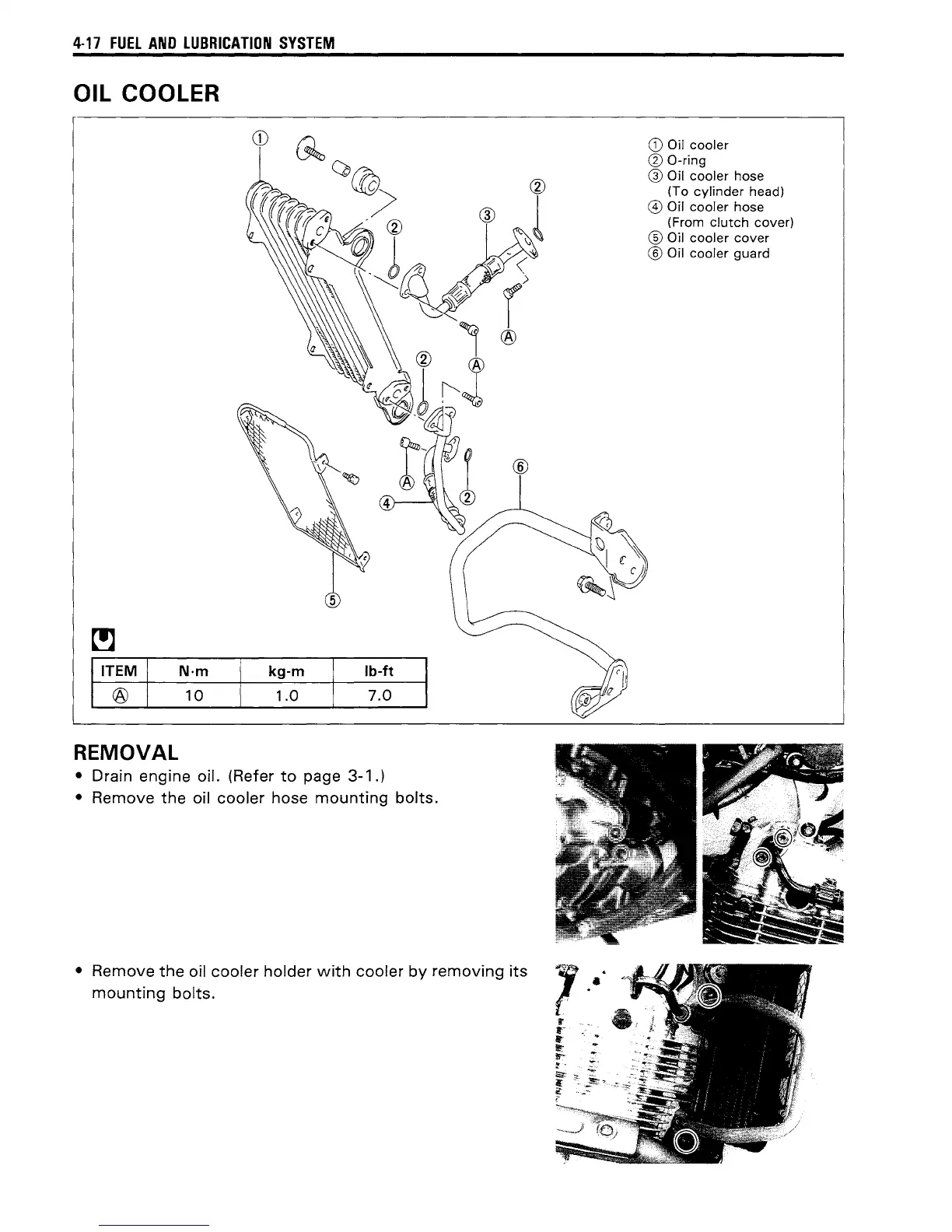

4·17 FUEL AND LUBRICATION SYSTEM
OIL COOLER
N·m
kg-m
Ib-ft
10
1.0
7.0
REMOVAL
• Drain engine oil. (Refer to page 3-1.)
• Remove the oil cooler hose mounting bolts.
• Remove the oil cooler holder with cooler by removing its
mounting bolts.
CD Oil cooler
@ O·ring
@ Oil cooler hose
(To
cylinder head)
@ Oil cooler hose
(From
clutch cover)
® Oil cooler cover
® Oil cooler guard
