5·11 CHASSIS

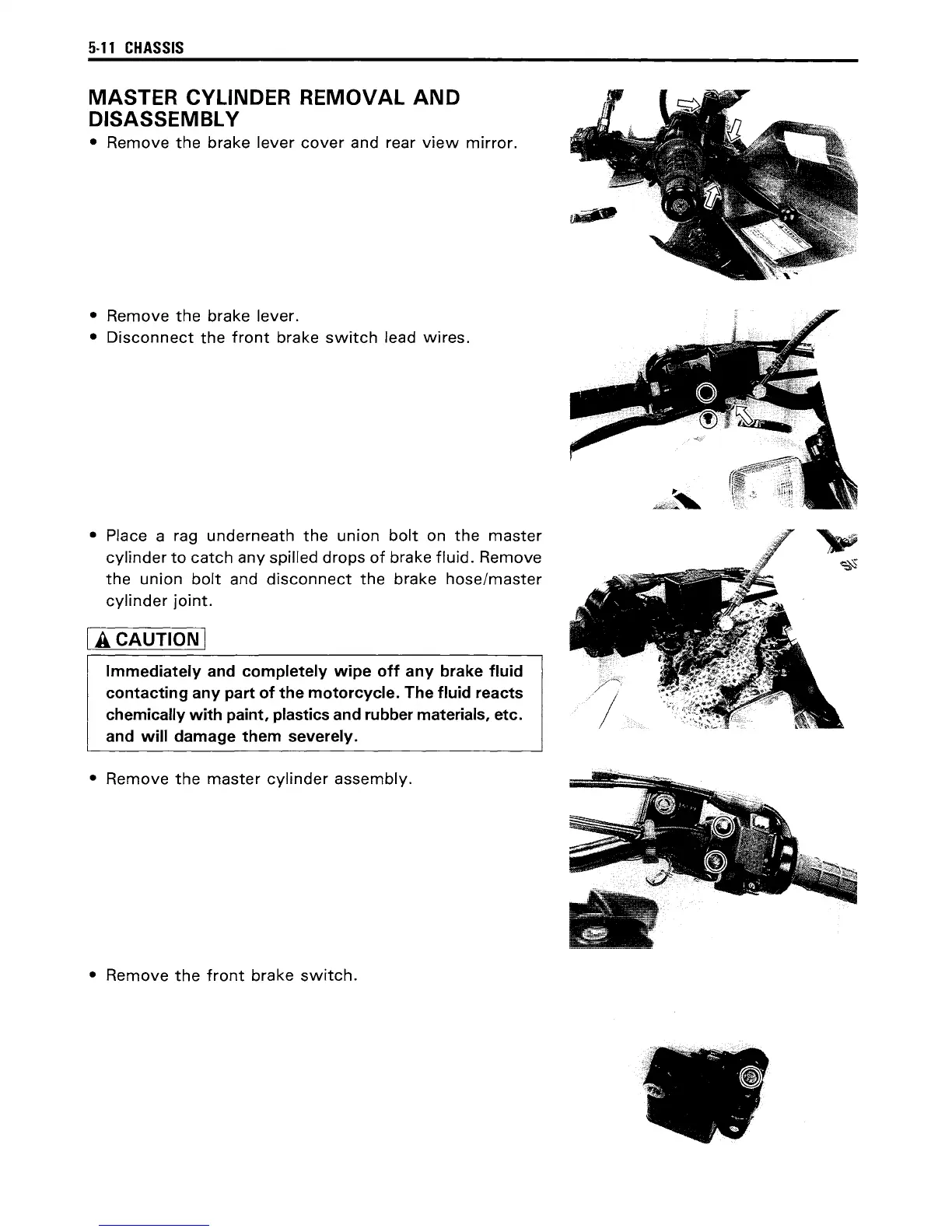

MASTER CYLINDER REMOVAL AND
DISASSEMBL Y
• Remove the brake lever cover and rear view mirror.
• Remove the brake lever.
•
Disconnect the front brake switch lead wires.
• Place a rag underneath the union bolt on the master
cylinder to catch any spilled drops of brake fluid. Remove
the union bolt and disconnect the brake hose/master
cylinder joint.
I A CAUTION I
Immediately and completely wipe off any brake fluid
contacting any part of the motorcycle. The fluid reacts
chemically with paint, plastics and rubber materials, etc.
and will damage them severely.
• Remove the master cylinder assembly.
•
Remove the front brake switch.
