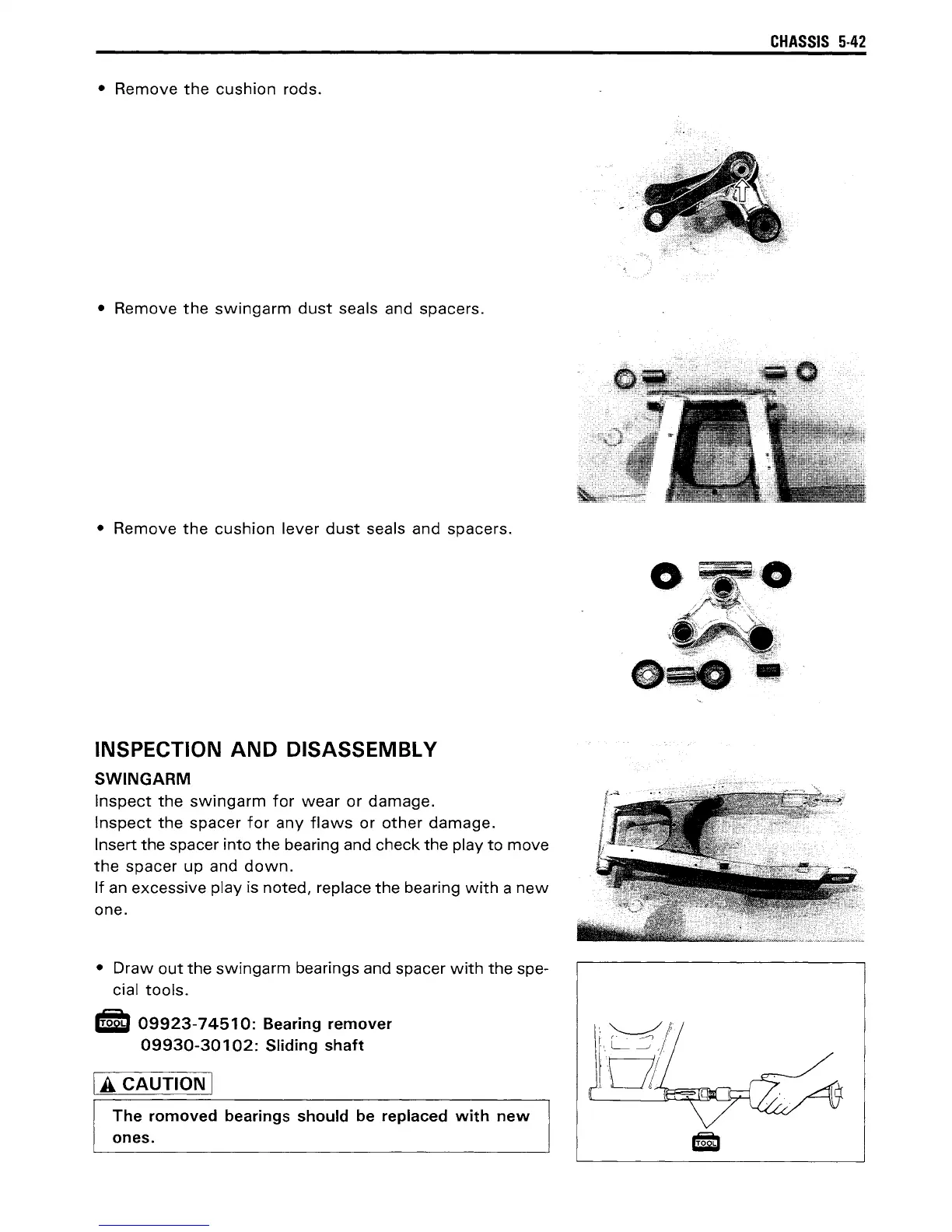

• Remove the cushion rods.
• Remove the swingarm dust seals and spacers.
• Remove the cushion lever dust seals and spacers.
INSPECTION AND DISASSEMBLY
SWINGARM
Inspect the swingarm for wear or damage.
Inspect the spacer for any flaws or other damage.
Insert the spacer into the bearing and check the play to move
the spacer up and down.
If an excessive play is noted, replace the bearing with a new
one.
• Draw out the swingarm bearings and spacer with the spe-
cial tools.
S 09923-74510: Bearing remover
09930-30102: Sliding shaft
IA CAUTION I
The romoved bearings should be replaced with new
ones.
CHASSIS 5-42
o
