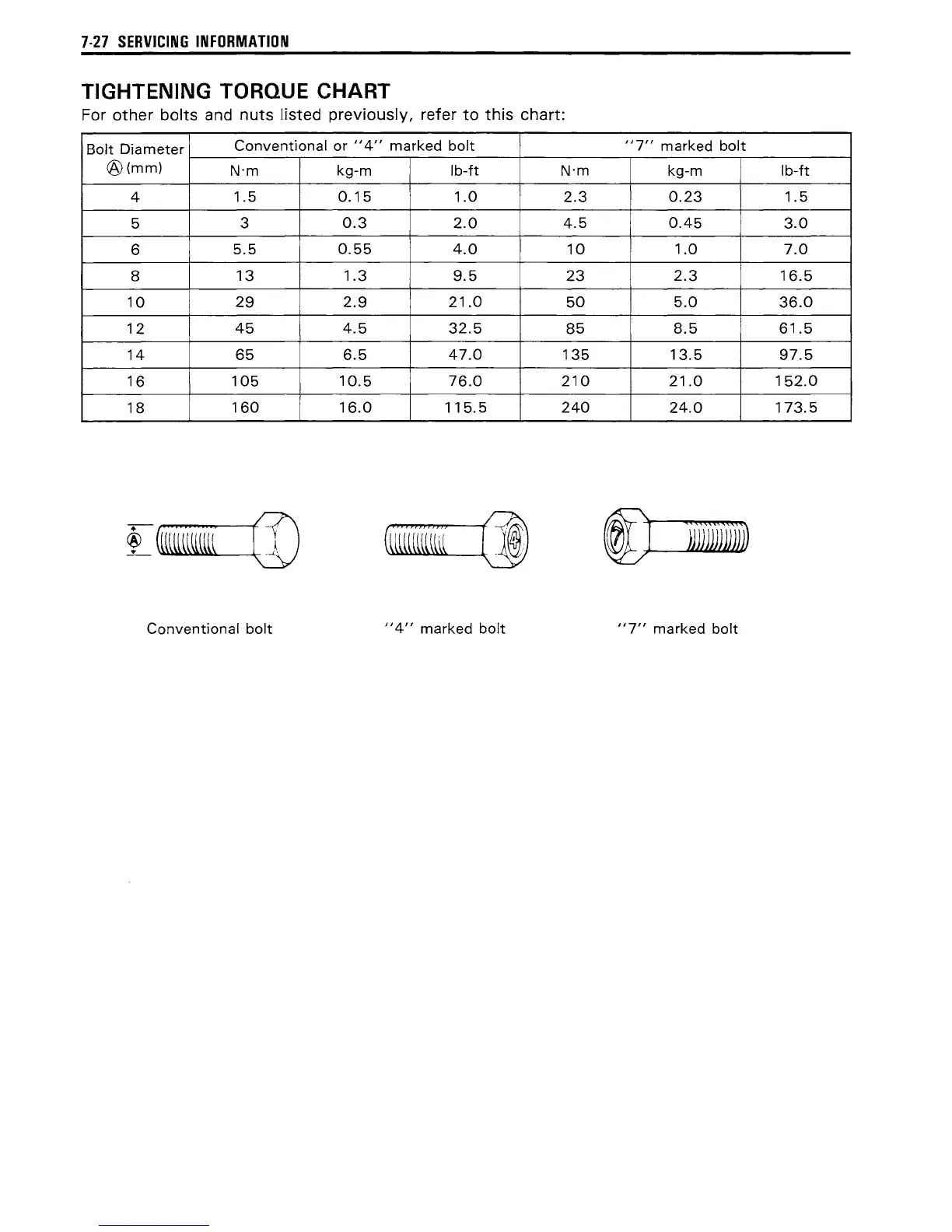

7-27 SERVICING INFORMATION
TIGHTENING TORQUE CHART
For other bolts and nuts listed previously, refer to this chart:
Bolt Diameter
Conventional or
"4" marked bolt "7" marked bolt
@(mm)
N·m kg-m Ib-ft N·m kg-m Ib-ft
4
1.5 0.15 1.0 2.3 0.23 1.5
5
3
0.3 2.0 4.5 0.45 3.0
6
5.5
0.55
4.0 10 1.0 7.0
8
13 1.3 9.5
23
2.3 16.5
10
29 2.9 21.0 50 5.0 36.0
12
45 4.5 32.5
85 8.5
61.5
14 65
6.5 47.0
135
13.5 97.5
16
105 10.5 76.0 210 21.0 152.0
18 160
16.0 115.5 240 24.0 173.5
Conventional bolt "4" marked bolt "7" marked bolt
