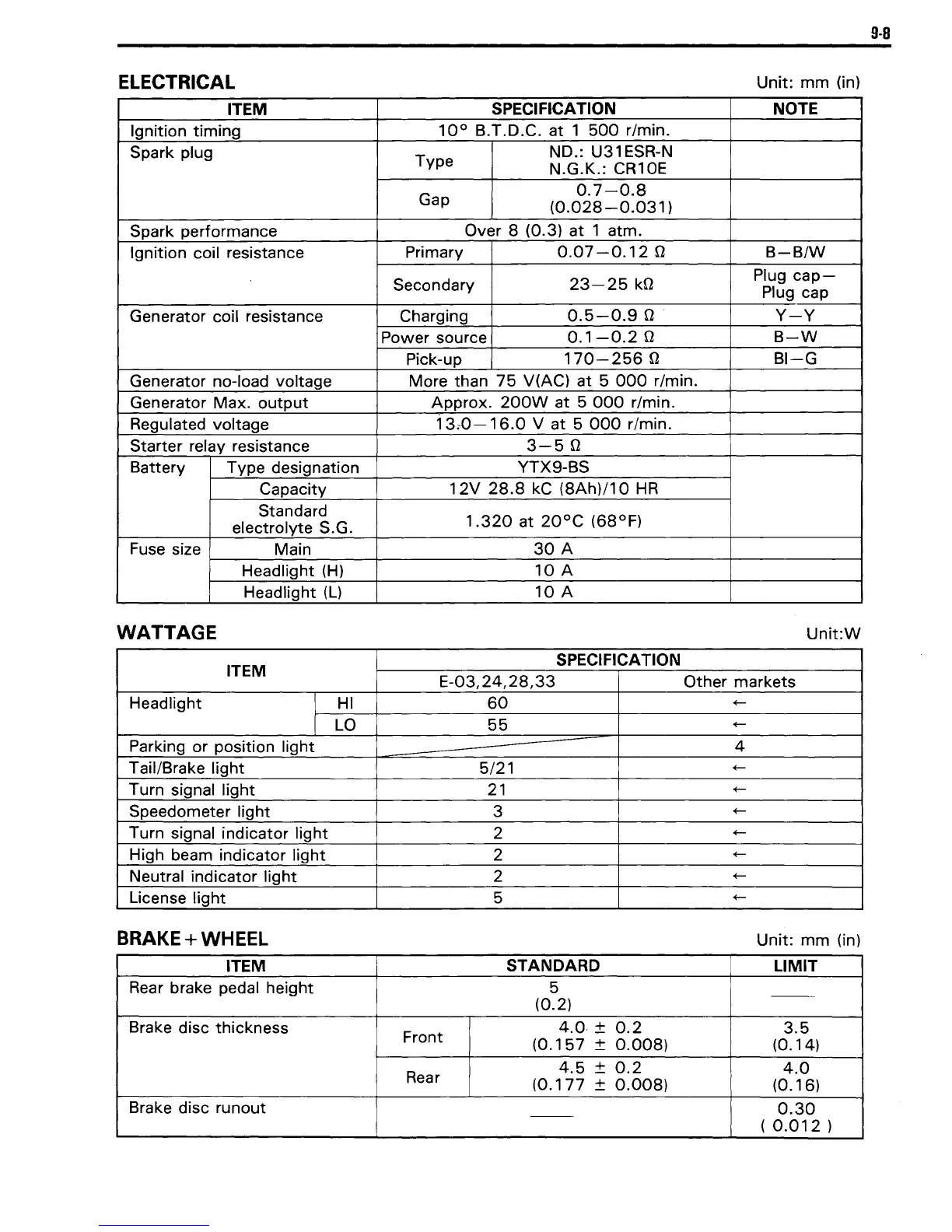

9-8
ELECTRICAL
Unit:
mm
(in)
ITEM
SPECIFICATION NOTE
Ignition
timing
10°
B.T.D.C.
at
1
500
r/min.
Spark plug
Type
NO.: U31ESR-N
N.G.K.: CR10E
Gap
0.7-0.8
(0.028-0.031
)
Spark performance
Over 8 (0.3)
at
1 atm.
Ignition coil resistance
Primary
0.07-0.12
n
B-B/W
Secondary
23-25
kn
Plug
cap-
Plug cap
Generator coil resistance
Charging
0.5-0.9
n
y-y
Power source
0.1-0.2
n
B-W
Pick-up
170-256
n
BI-G
Generator no-load voltage
More than
75
V(AC)
at
5
000
r/min.
Generator Max.
output
Approx.
200W
at
5000
r/min.
Regulated voltage
13:0-16.0
V
at
5
000
r/min.
Starter relay resistance
3-5
n
Battery Type designation
YTX9-BS
Capacity
12V
28.8
kC (8Ah)/1 0
HR
Standard
1.320
at
20°C
(68°F)
electrolyte S.G.
Fuse size
Main
30
A
Headlight
(H)
10
A
Headlight
(L)
10
A
WATTAGE
Unit:W
ITEM
SPECIFICATION
E-03,24,28,33
Other markets
Headlight
I
HI
60
+-
I
La
55
+-
Parking or position light 4
Tail/Brake light
5/21
+-
Turn signal light
21
+-
Speedometer light
3
+-
Turn signal indicator light 2
+-
High beam indicator light 2
+-
Neutral indicator light 2
+-
License light
5
+-
BRAKE + WHEEL
Unit:
mm
(in)
ITEM
STANDARD
LIMIT
Rear brake pedal height 5
--
(0.2)
Brake disc thickness
Front
4.0,
±
0.2
3.5
(0.157
±
0.008)
(0.14)
Rear
4.5
±
0.2
4.0
(0.177
±
0.008)
(0.16)
Brake disc runout
0.30
--
(
0.012
)
