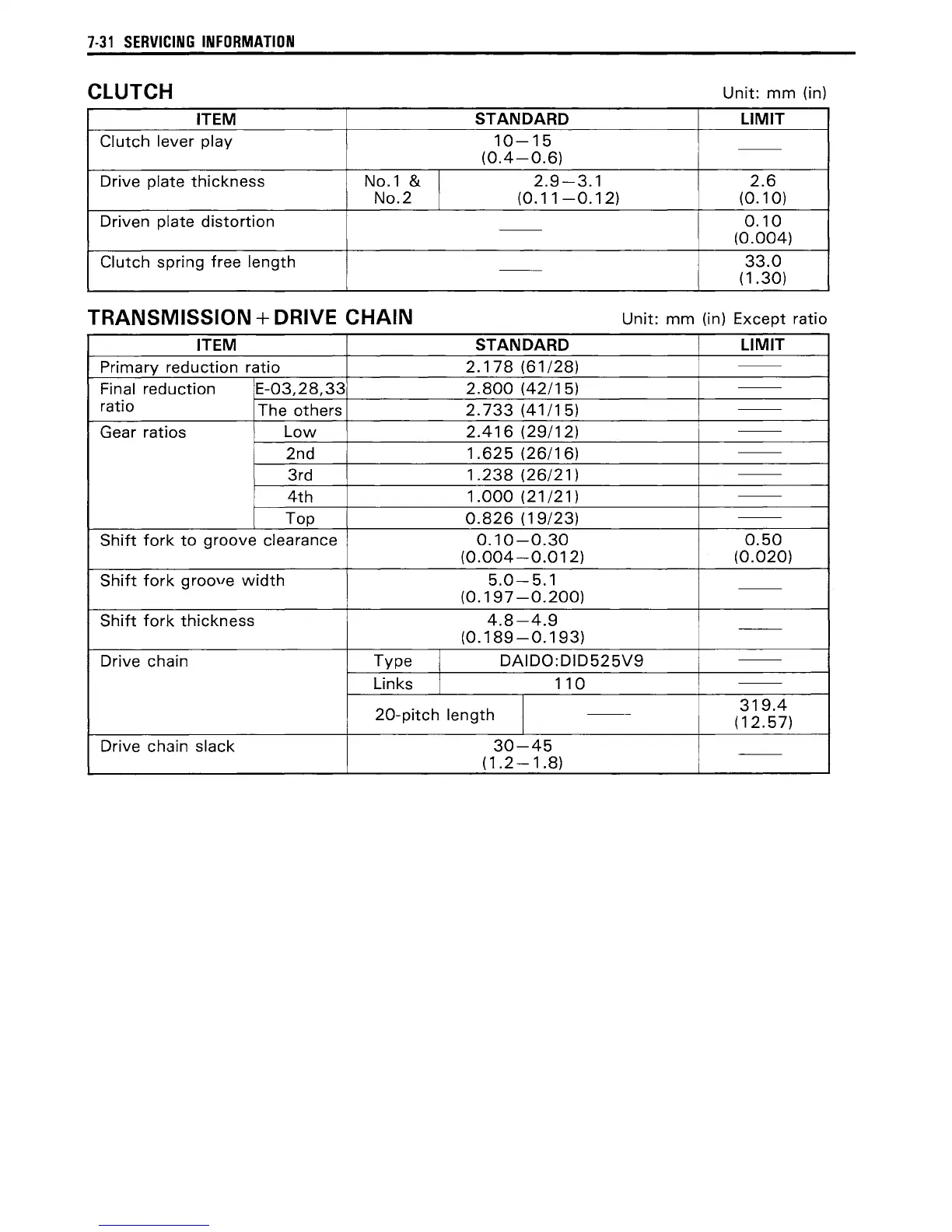

7·31 SERVICING INFORMATION
CLUTCH
Unit: mm (in)
ITEM
STANDARD LIMIT
Clutch lever play
10-15
--
(0.4-0.6)
Drive plate thickness
No.1 &
I
2.9-3.1 2.6
No.2 (0.11 -0.12)
(0.10)
Driven plate distortion
--
0.10
(0.004)
Clutch spring free length
33.0
--
(1.30)
TRANSMISSION + DRIVE CHAIN
Unit: mm (in) Except ratio
ITEM
STANDARD LIMIT
Primary reduction ratio
2.178 (61/28)
--
Final reduction E-03,28,33
2.800 (42115)
--
ratio
The
others
2.733 (41/15)
--
Gear ratios
Low
2.416 (29112)
--
2nd
1.625 (26116)
--
3rd
1.238 (26/21)
--
4th
1.000 (21/21)
--
Top 0.826 (19123)
--
Shift fork to groove clearance
0.10-0.30 0.50
(0.004-0.012)
(0.020)
Shift fork groo\le width 5.0-5.1
--
(0.197 -0.200)
Shift fork thickness
4.8-4.9
--
(0.189-0.193)
Drive chain
Type DAIDO:DID525V9
--
Links 110
--
20-pitch length
I
319.4
--
(12.57)
Drive chain slack
30-45
--
(1.2-1.8)

Suzuki DR650SE Specifications

General

Bore x Stroke	100.0 mm x 82.0 mm
Compression Ratio	9.5:1
Fuel System	Mikuni BST40 carburetor
Ignition	Electronic ignition (CDI)
Transmission	5-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Front Tire	90/90-21
Rear Tire	120/90-17
Curb Weight	166 kg (366 lbs)
Starter	Electric
Engine Type	4-stroke, air-cooled, SOHC
Front Brakes	Disc brake
Rear Brakes	Disc brake
Fuel Tank Capacity	13.0 L (3.4 US gal.)
Overall Width	865 mm (34.1 in)
Ground Clearance	265 mm (10.4 in)
Seat Height	885 mm (34.8 in.)
Rear Suspension	Link type, coil spring, oil damped
