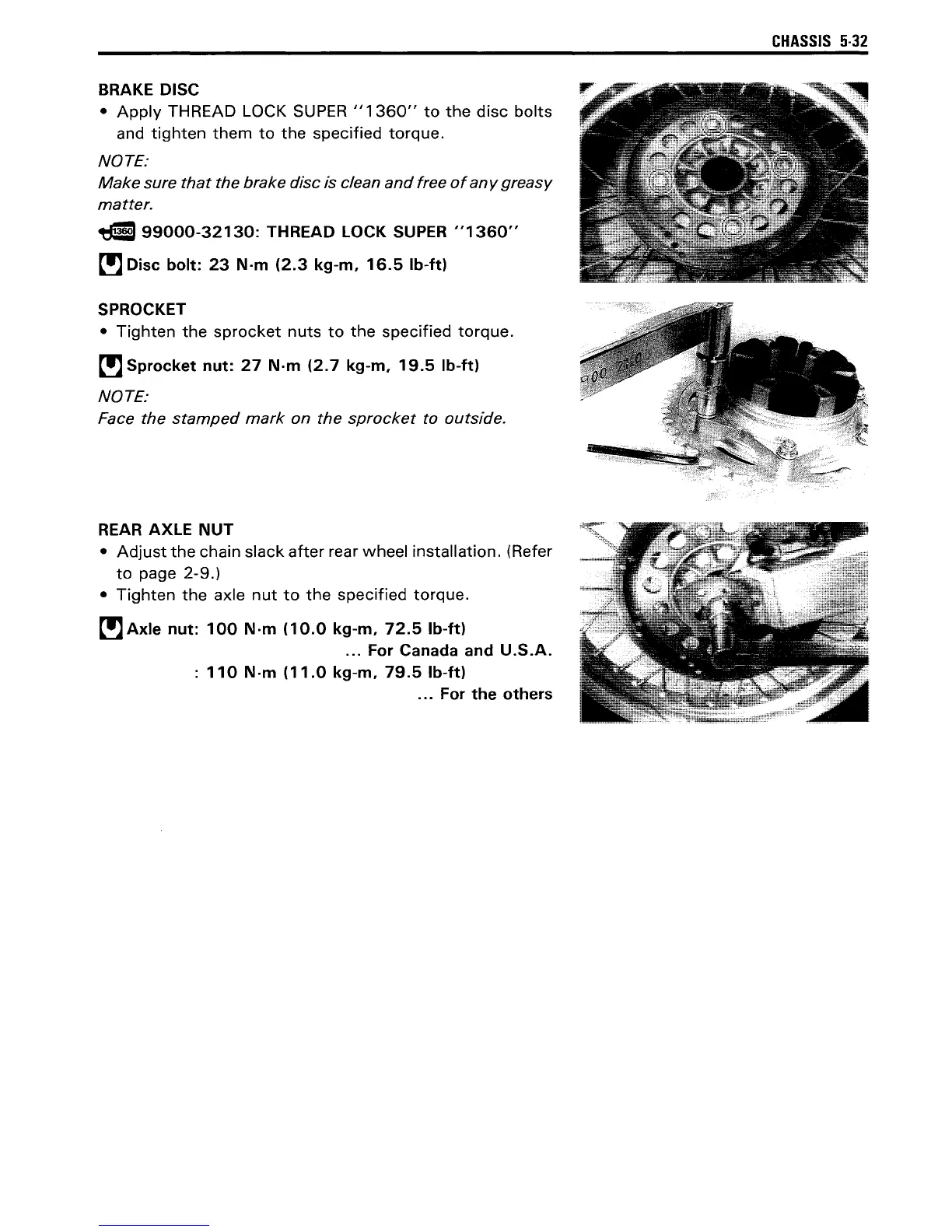

BRAKE DISC
•
Apply THREAD LOCK SUPER "1360" to the disc bolts
and tighten them to the specified torque.
NOTE:
Make sure that the brake disc is clean and free of any greasy
matter.
~ 99000-32130: THREAD LOCK SUPER "1360"
~ Disc bolt: 23 N·m (2.3 kg-m, 16.5 Ib-ftl
SPROCKET
•
Tighten the sprocket nuts to the specified torque.
~Sprocket nut: 27 N·m (2.7 kg-m, 19.5 Ib-ftl
NOTE:
Face the stamped mark on the sprocket to outside.
REAR AXLE NUT
• Adjust the chain slack after rear wheel installation. (Refer
to page 2-9.)
• Tighten the axle nut to the specified torque.
~Axle nut: 100 N·m (10.0 kg-m, 72.5 Ib-ftl
... For Canada and U.S.A.
: 110 N·m (11.0 kg-m, 79.5Ib-ftl
... For the others
CHASSIS 5·32
