Suzuki DR650SE - Engine Reinstallation

ENGINE 3·6
ENGINE REINSTALLATION
Reinstall the engine in the reverse order of engine removal.

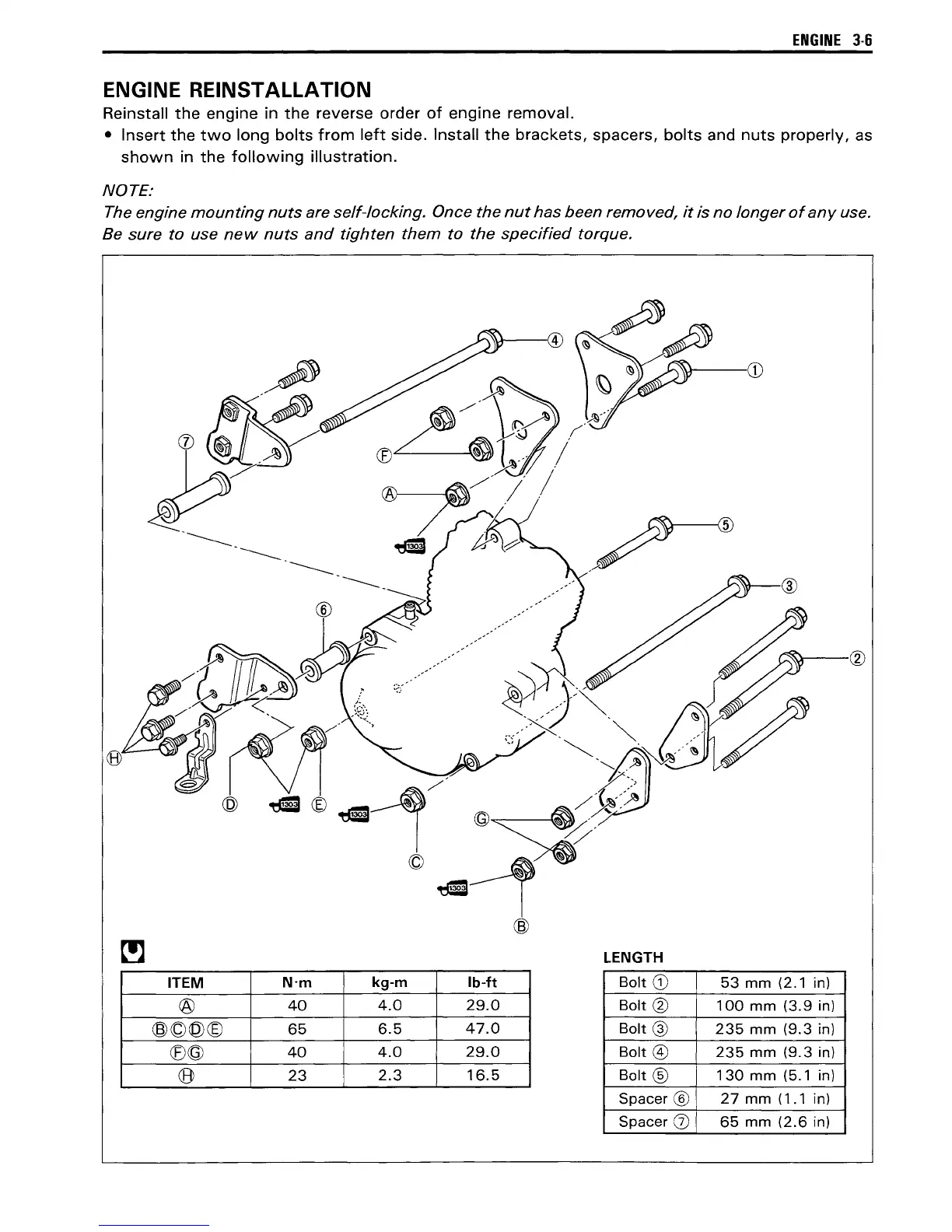

• Insert the two long bolts from left side. Install the brackets, spacers, bolts and nuts properly, as
shown in the following illustration.
NOTE:
The engine
mounting nuts are self-locking. Once the nut has been removed, it is no longer of any use.
Be
sure to use new nuts and tighten them to the specified torque.
'hl---CD
®
--
@ .®.e--, @~~
© ~~
~ I
@
LENGTH
ITEM N'm
kg-m Ib-ft
Bolt CD
53 mm (2.1 in)
@
40
4.0 29.0 Bolt@ 100 mm (3.9 in)
@©@®
65
6.5
47.0
Bolt@ 235 mm (9.3 in)
®@
40
4.0 29.0 Bolt @) 235 mm (9.3 in)
~
23
2.3 16.5
Bolt ®
130mm(5.1in)
Spacer ®
27 mm (1.1 in)
Spacer (J) 65 mm (2.6 in)
