Suzuki DR650SE - Front Wheel Removal and Service

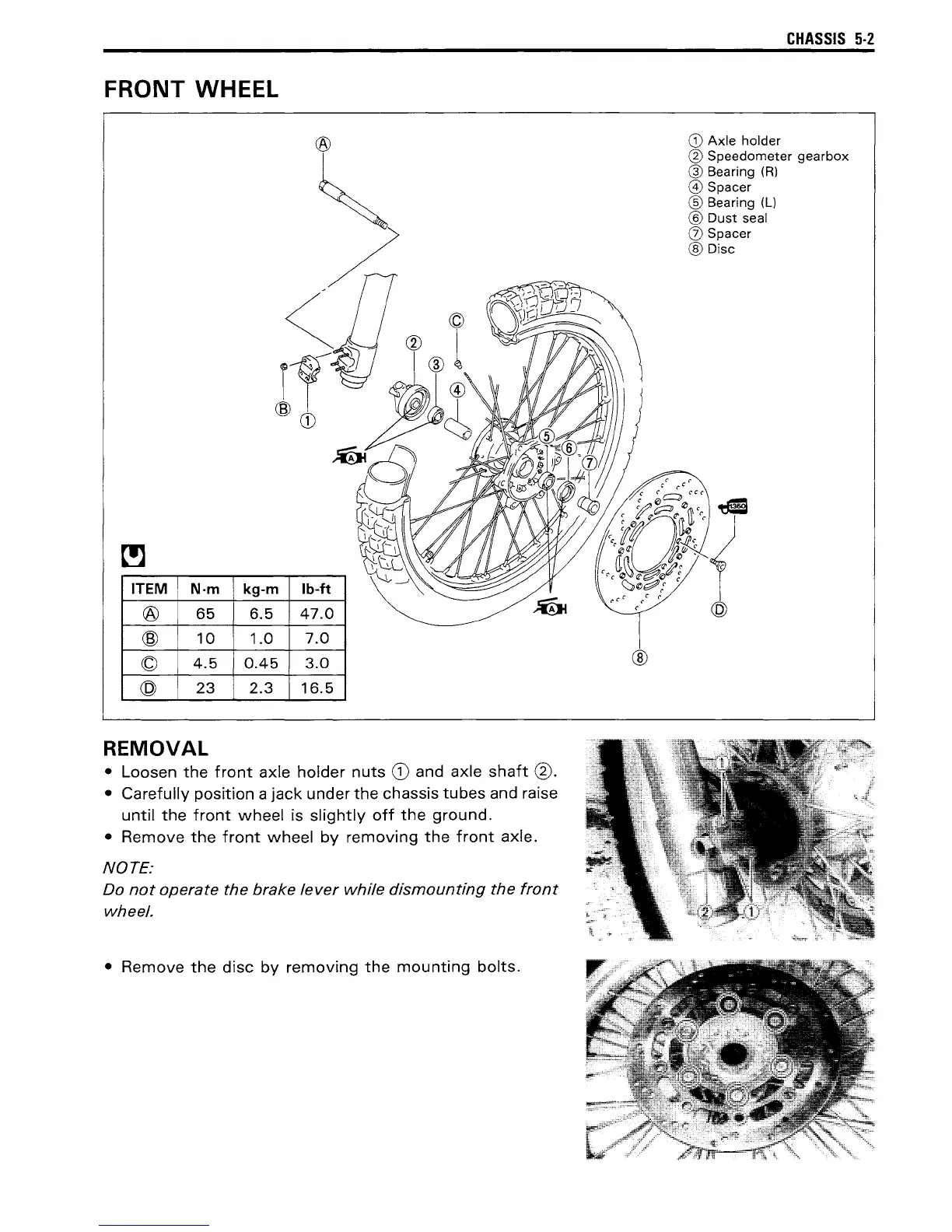

FRONT WHEEL
ITEM N·m kg-m
Ib-ft
@
65 6.5
47.0
®
10 1.0 7.0
©
4.5 0.45 3.0
©
23 2.3 16.5
REMOVAL
• Loosen the front axle holder nuts G) and axle shaft @.
• Carefully position a jack under the chassis tubes and raise
until the front wheel is slightly off the ground.
• Remove the front wheel by removing the front axle.
NOTE:
Do not operate the brake lever while dismounting the front
wheel.
• Remove the disc by removing the mounting bolts.
®
CHASSIS 5·2
CD Axle holder
@ Speedometer gearbox
@ Bearing (R)
@ Spacer
® Bearing (L)
® Dust seal
(j) Spacer
® Disc
