Suzuki DR650SE - Crankcase Bearings

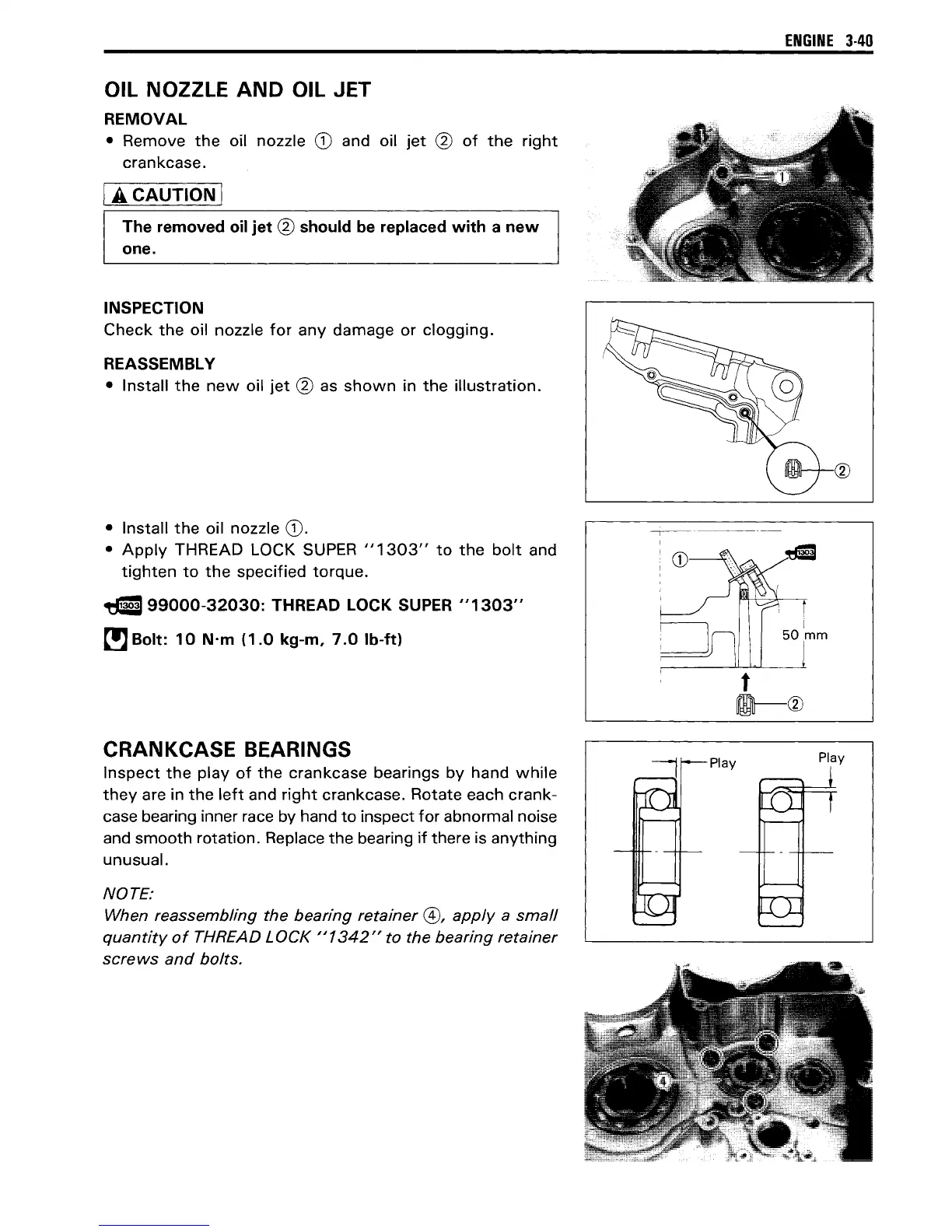

OIL NOZZLE AND OIL JET
REMOVAL
• Remove the oil nozzle CD and oil jet @ of the right
crankcase.
I A CAUTION I
The removed oil jet @ should be replaced with a new
one.
INSPECTION
Check the oil nozzle for any damage or clogging.
REASSEMBLY
• Install the new oil jet @ as shown in the illustration.
• Install the oil nozzle CD.
• Apply THREAD LOCK SUPER "1303" to the bolt and
tighten to the specified torque.
~a 99000-32030: THREAD LOCK SUPER "1303"
~ Bolt: 10 N·m (1.0 kg-m, 7.0 Ib-ft)
CRANKCASE BEARINGS
Inspect the play of the crankcase bearings by hand while
they are in the left and right crankcase. Rotate each crank-
case bearing inner race by hand
to inspect for abnormal noise
and
smooth rotation. Replace the bearing if there is anything
unusual.
NOTE:
When reassembling the bearing
retainer @, apply a small
quantity of THREAD LOCK "1342" to the bearing retainer
screws and bolts.
ENGINE 3·40
Play
Play
