Suzuki DR650SE - Gearshift Mechanism

BALANCERSHAFT
• When installing the balancershaft, align the punched
marks
(CD, @) on the balancer drive gear and driven gear.

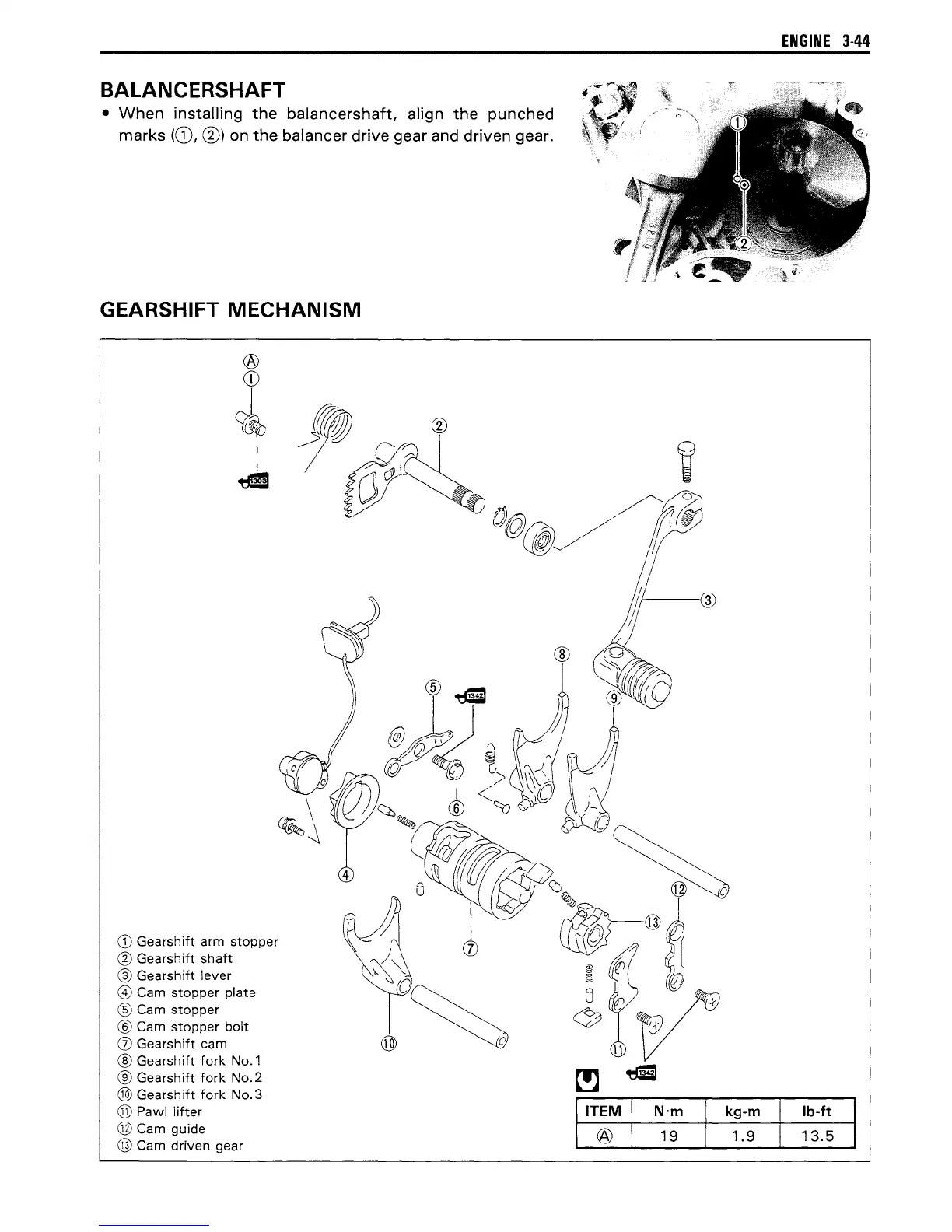

GEARSHIFT MECHANISM
®
CD
CD Gearshift arm stopper
@ Gearshift shaft
@ Gearshift lever
@ Cam stopper plate
® Cam stopper
® Cam stopper bolt
o Gearshift cam
® Gearshift fork No.1
® Gearshift fork No.2
@ Gearshift fork No.3
@ Pawl lifter
@ Cam guide
@ Cam driven gear
o@, ,~~
D~/ if
~ ®
ENGINE 3-44
kg-m Ib-ft
1.9 13.5
