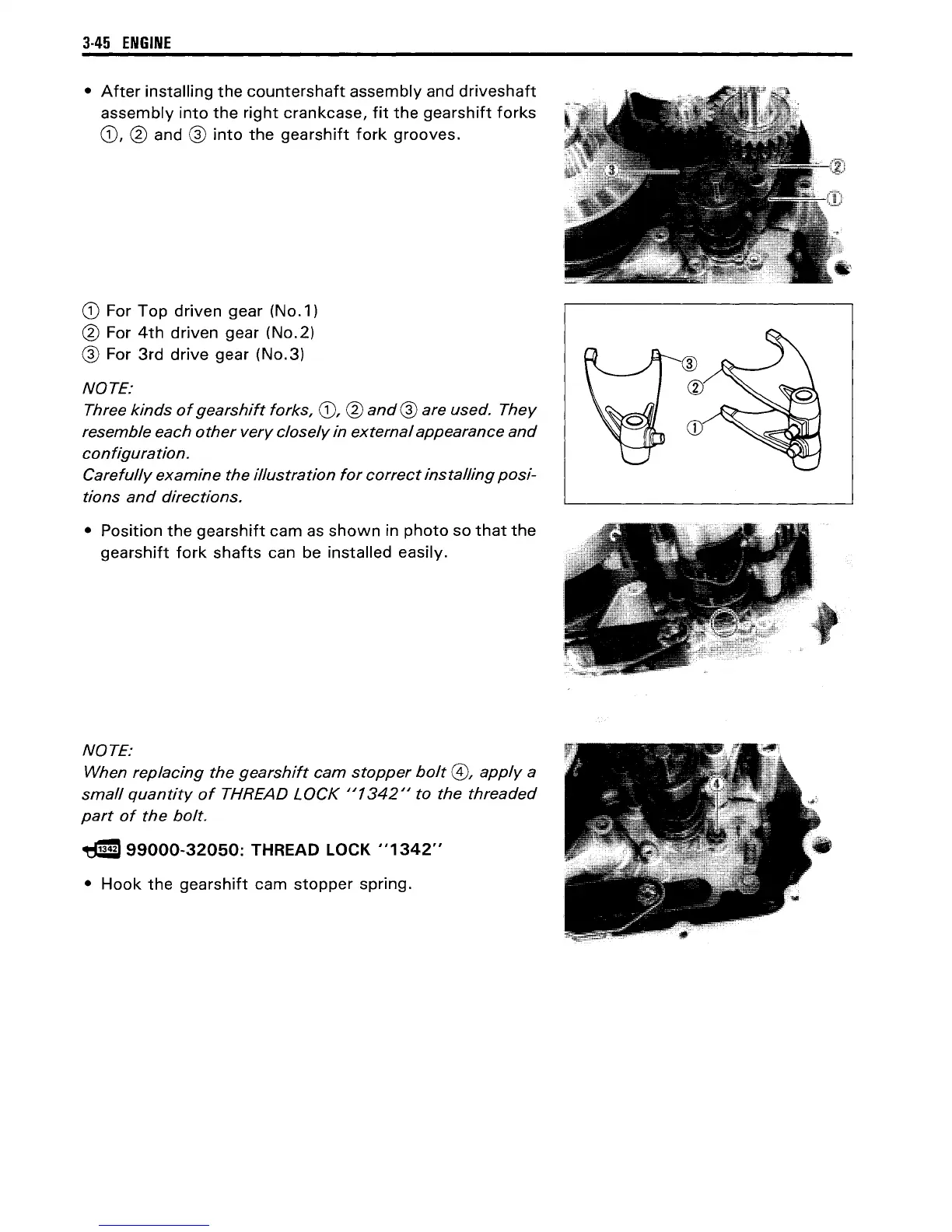

3·45 ENGINE
• After installing the countershaft assembly and driveshaft
assembly into the right crankcase, fit the gearshift forks
CD, @ and @ into the gearshift fork grooves.
CD For Top driven gear (No.1)
@ For 4th driven gear (No.2)
@ For 3rd drive gear (No.3)
NOTE:
Three
kinds of gearshift forks, CD, @ and@ are used. They
resemble each other very closely in external appearance and
configuration.
Carefully examine the illustration for correct installing posi-
tions and directions.
• Position the gearshift cam as shown in photo so that the
gearshift fork shafts can be installed easily.
NOTE:
When
replacing the gearshift cam stopper bolt @, apply a
small quantity of THREAD LOCK "1342" to the threaded
part of the bolt.
-tta 99000-32050: THREAD LOCK "1342"
• Hook the gearshift cam stopper spring.
