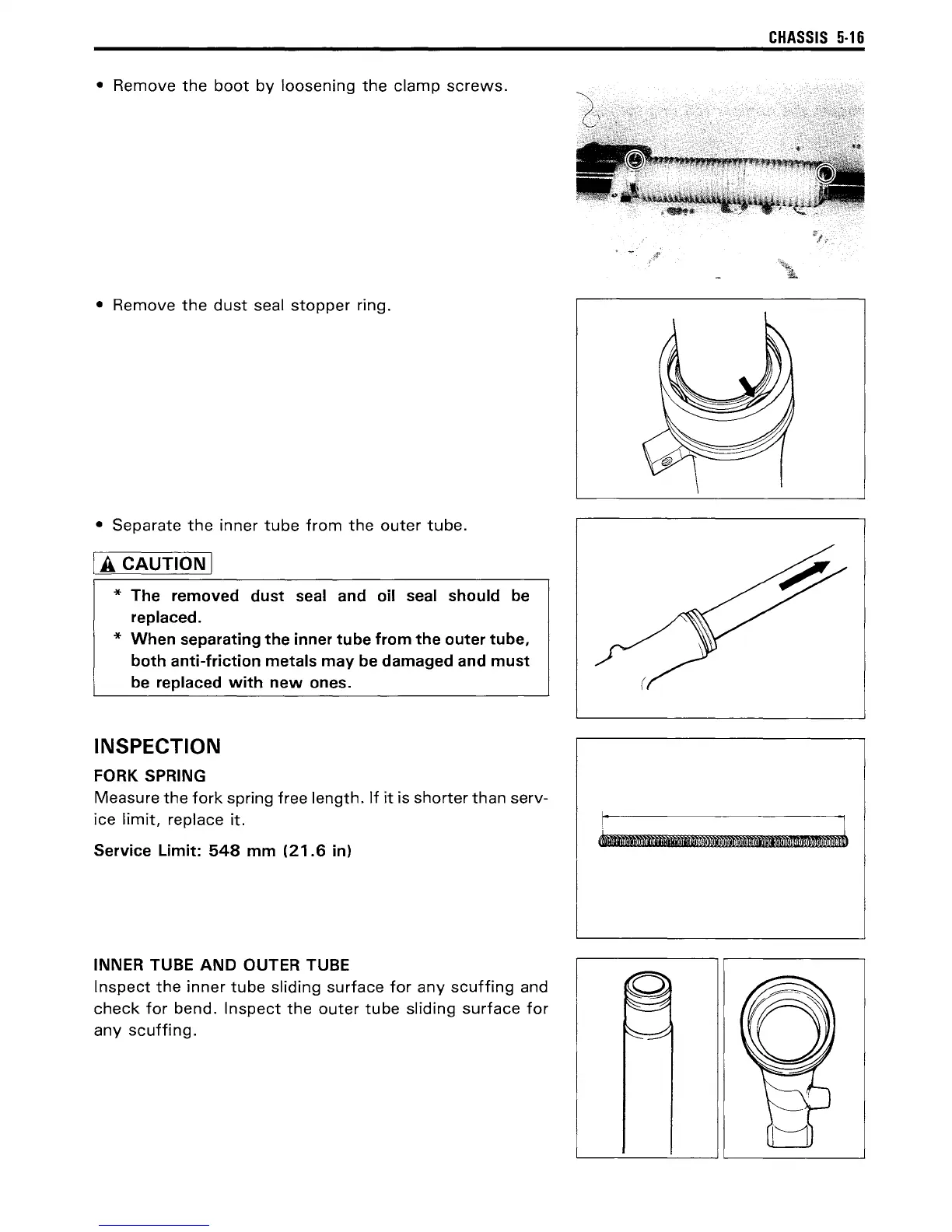

• Remove the boot by loosening the clamp screws.
• Remove the dust seal stopper ring.
• Separate the inner tube from the outer tube.
I A. CAUTION I
* The removed dust seal and oil seal should be
replaced.
* When separating the inner tube from the outer tube,
both anti-friction metals may be damaged and must
be replaced with new ones.
INSPECTION
FORK SPRING
Measure the fork spring free length. If it is shorter than serv-
ice
limit, replace it.
Service Limit: 548 mm (21.6 in)
INNER TUBE AND OUTER TUBE
Inspect the inner tube sliding surface for any scuffing and
check for bend. Inspect the outer tube sliding surface for
any scuffing.
CHASSIS 5·16
