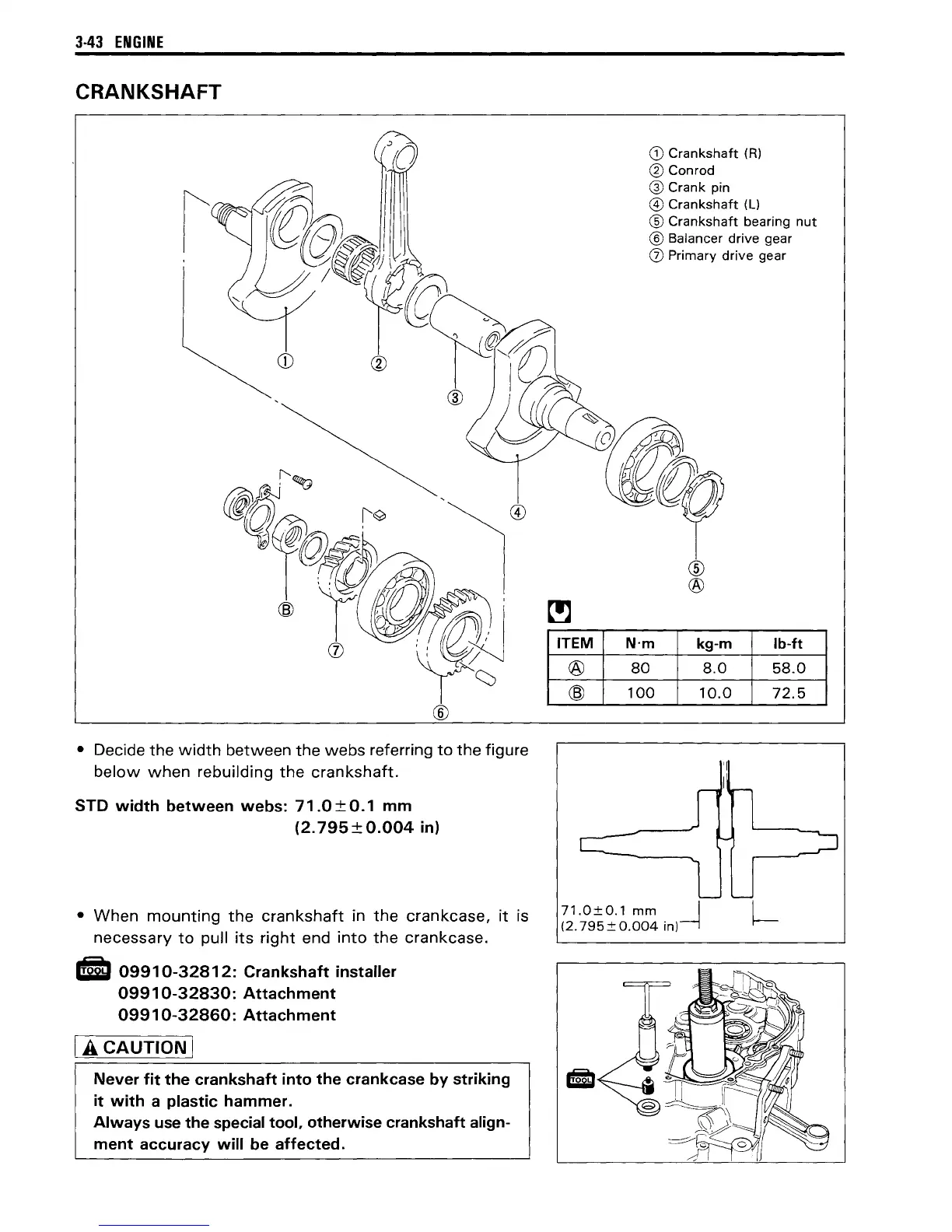

3·43 ENGINE
CRANKSHAFT
CD ®
!"~
~4 ['0 ' @
m~
®
• Decide the width between the webs referring to the figure
below when rebuilding the crankshaft.
STD width between webs: 71.0 ± 0.1 mm
(2.795 ± 0.004 in)
• When mounting the crankshaft in the crankcase, it is
necessary
to pull its right end into the crankcase.
em 09910-32812: Crankshaft installer
09910-32830: Attachment
09910-32860: Attachment
I A CAUTION I
ITEM
®
@
CD Crankshaft (R)
@ Conrod
@ Crank pin
@ Crankshaft (L)
® Crankshaft bearing nut
® Balancer drive gear
o Primary drive gear
N·m
80
100
®
®
kg·m
8.0
10.0
Ib-ft
58.0
72.5
71.0±O.1 mm I
(2.795±O.004 in)--1
Never fit the crankshaft into the crankcase by striking am
it with a plastic hammer.
Always use the special tool, otherwise crankshaft align-
ment accuracy will be affected.
