DISASSEMBLY AND ASSEMBLY 4-11

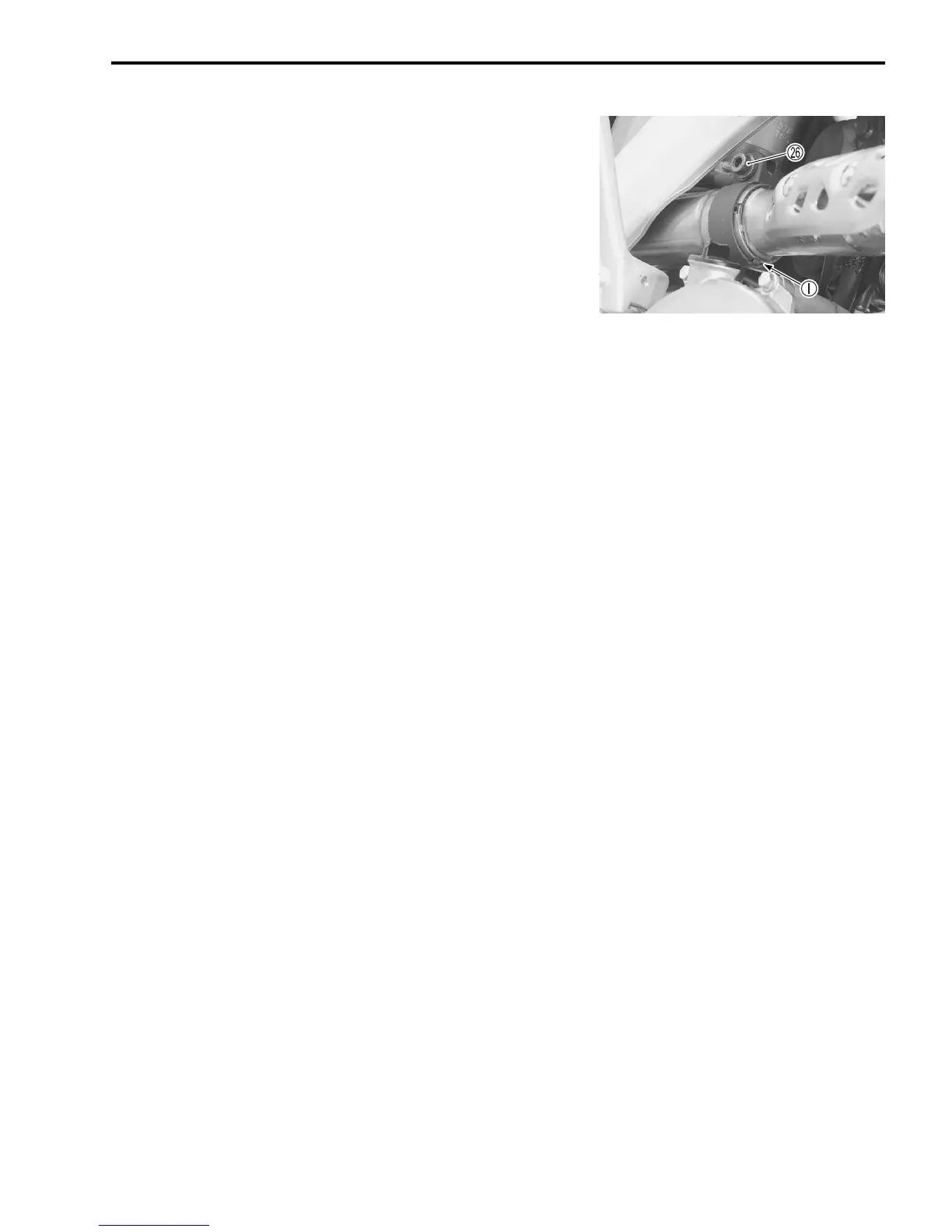

• Temporarily tighten the muffler connector clamp bolt P.
NOTE:
When installing the connector clamp, fit the convex part I of the
connector clamp onto the concave part of muffler.
• Check the clearance between exhausted pipe and radiator
hose.
• Be sure to tighten the bolts and nuts in the following order.
1) Muffler mounting front bolt N and rear bolt O
2) Exhaust pipe nuts M
3) Connector clamp bolt P
Exhaust pipe nut: 18 N·m (1.8 kgf-m, 13.0 lbf-ft)
Muffler mounting bolt (front and rear): 23 N·m (2.3 kgf-m, 16.5 lbf-ft)
Muffler connector clamp bolt: 18 N·m (1.8 kgf-m, 13.0 lbf-ft)
INSPECTION AFTER INSTALLATION
• Engine oil level (2-13)
• Engine coolant level and coolant leakage (2-19, -20)
• Fuel leakage
• Exhaust gas leakage
• Throttle cable play (2-22)
• Clutch cable play (2-21)
• Drive chain slack (2-32)
• Brake pedal height (2-38)
• Wiring harness, cable and hose routing (5-10 to -13)
