100 TimeSource 3100
Installation
097-72020-01 Issue 9: November 2003
SSSSSSSSSSS SSSS S SSSSS SSSS SSS S SSS S SSSSS S
3
Setup the Alarm Parameters

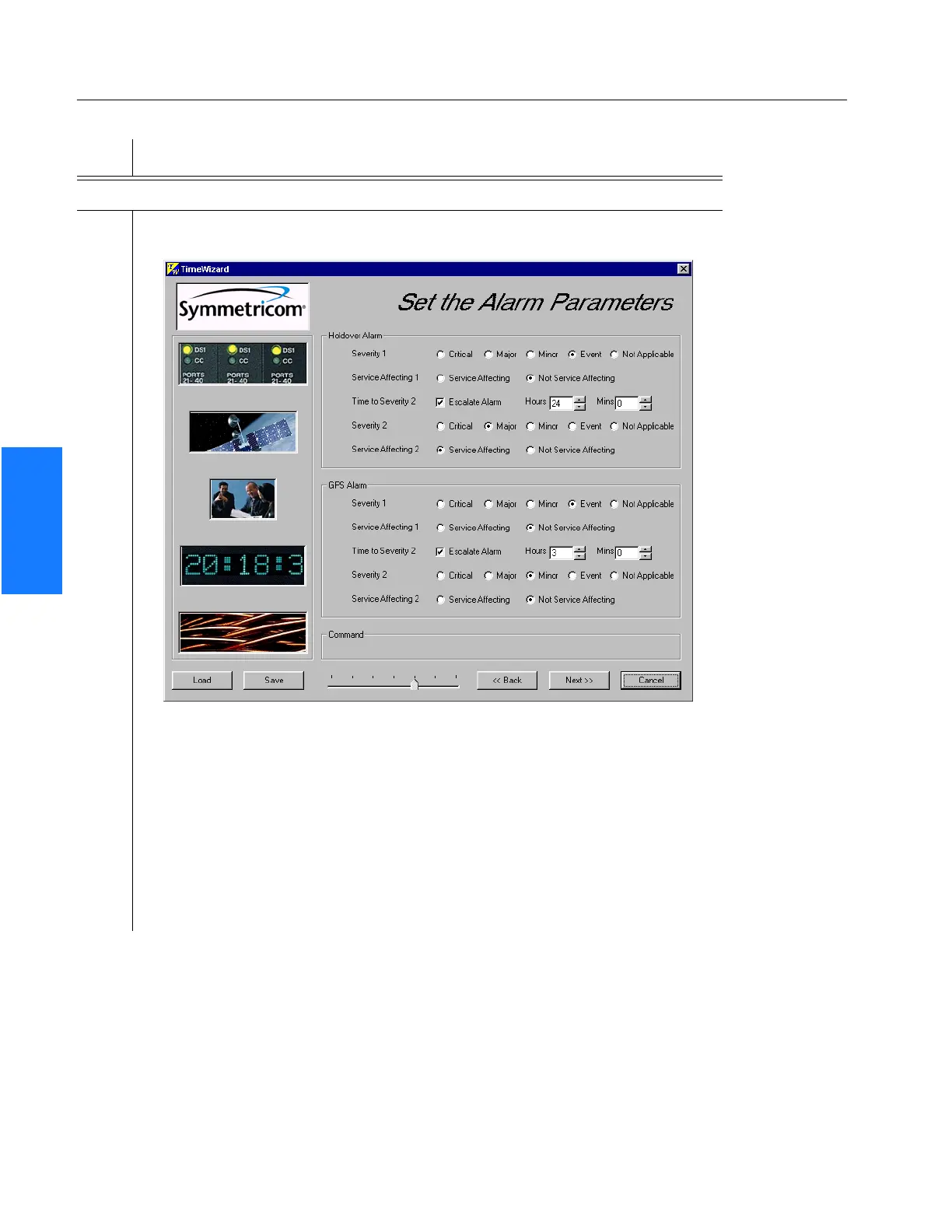

19 When the Next>> button is clicked, the “Set the Alarm Parameters” screen
appears:
The Load and Save buttons allow a file to be generated that saves the
alarm parameters in a file called TS3Kconf.sym as default. The file name
for a configuration can be saved by selecting the Save button and
providing a file name. The Load button allows the user to load a saved file
that will automatically configure the Alarm Parameters screen.
This screen allows the parameters for GPS and Holdover alarm conditions
to be modified. If you do not want to modify any of the alarm parameters,
click the Next>> button and continue with Step 21. Otherwise, continue
with the next step.
Procedure F. TimeWizard Installation and Operation (cont’d)
Step Procedure
To Next Page
