Symmetricom TimeSource 3100 User Manual

3
TimeSource 3100 57
Installation
097-72020-01 Issue 9: November 2003
2
5
3
SSSSSSSSSSS SSSS S SSSSS SSSS SSS S SSS S SSSSS S
Rack Mounting

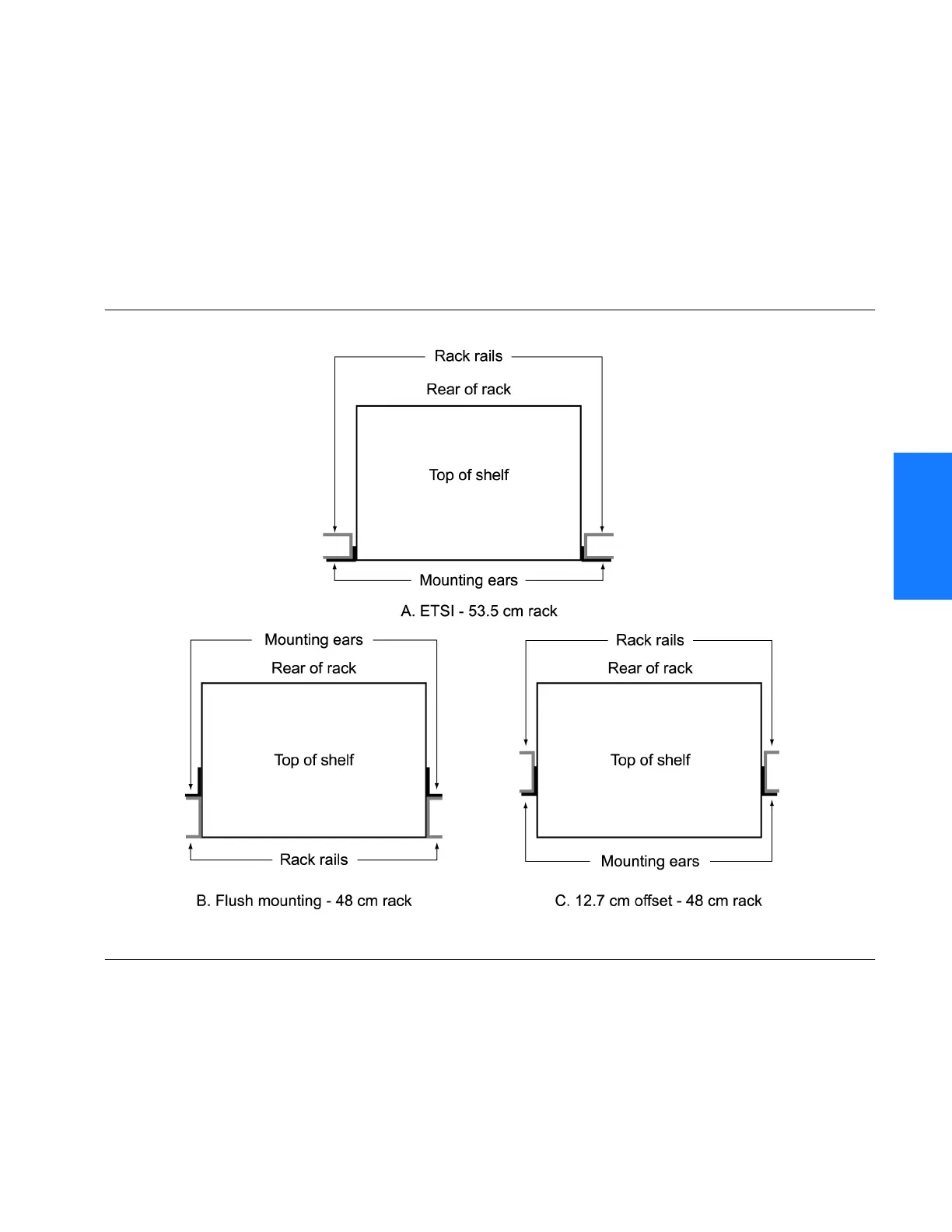

The shelf is shipped with the ears positioned for ETSI 53.5 cm mounting (Figure 12A). For
48 cm racks, the shelf can be positioned to the rear of the rack rail for flush mounting
(Figure 12B) or to the front of the rack rail for 12.7 cm offset mounting (Figure 12C).
Position the mounting ears, as shown in Figure 12. Mount the shelf in the rack according to
standard company practices.
Figure 12. Rack Mounting Options
