TimeSource 3100 67
Installation
097-72020-01 Issue 9: November 2003
2
5
3
SSSSSSSSSSS SSSS S SSSSS SSSS SSS S SSS S SSSSS S
Module for Additional E1 or Analog Outputs
Connect the optional eight E1 or analog outputs with the wire-wrap or BNC output module.
See Figure 13 for the connector location, and Figure 18 for the connections.

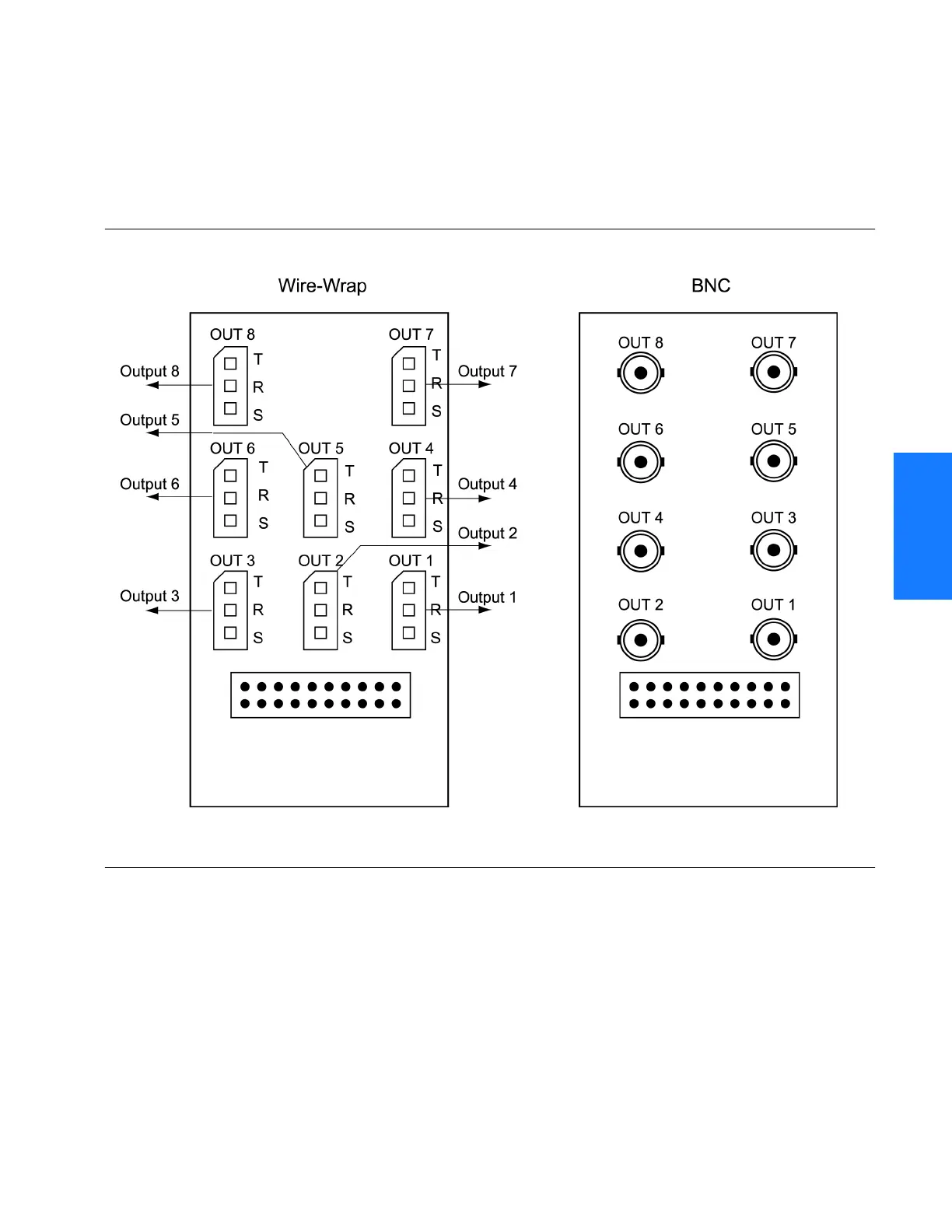

Figure 18. Eight E1 or Analog Output Connections
