210 TimeSource 3100
Specifications
097-72020-01 Issue 9: November 2003
Time of Day Outputs (cont’d)
Cisco Systems Format
Connector Type: RJ-45
Connector Label: TOD
Connector Location: Connector panel
Electrical Interface: RS-485
Baud Rate: 9600 b/s
Bit Configuration: 8 data bits, No parity, 1 stop bit
Data Format: See Figure 33

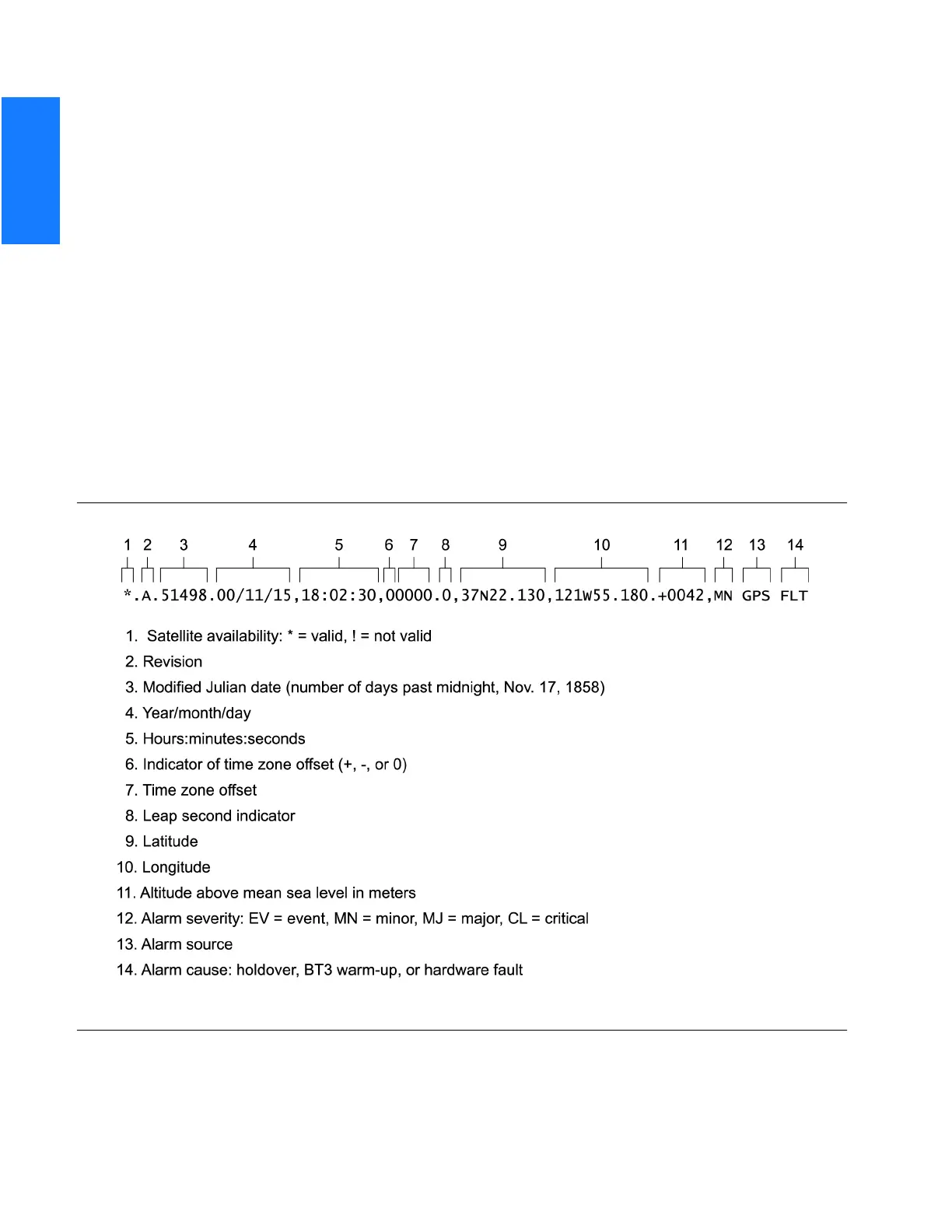

Figure 33. NTP Type 4 Data Format
