68 TimeSource 3100

Installation

097-72020-01 Issue 9: November 2003

SSSSSSSSSSS SSSS S SSSSS SSSS SSS S SSS S SSSSS S

Module for Mixed E1/T1 Outputs

Connect the optional eight mixed El/T1 outputs with the wire-wrap output module. See

Figure 13 for the connector location, and Figure 19 for the connections.

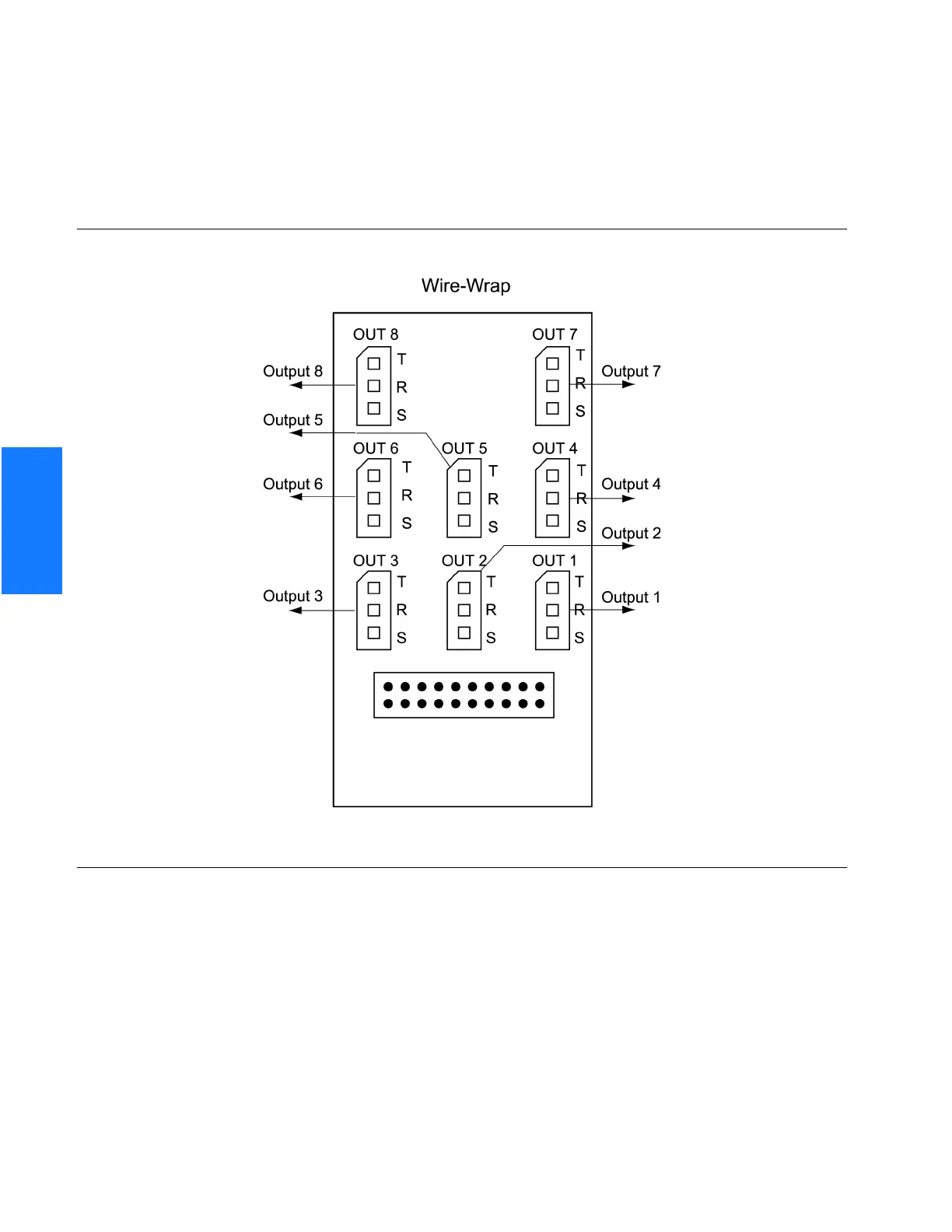

Figure 19. Eight Mixed E1/T1 Output Connections
