TimeSource 3100 51
Installation
097-72020-01 Issue 9: November 2003
2
5
3
SSSSSSSSSSS SSSS S SSSSS SSSS SSS S SSS S SSSSS S
Antenna
These installation procedures are to be used in support of local company procedures and the
Installation Job Specification.
Prior to installing the antenna, the site, antenna location, lightning suppressor location, cable
route, and all other details should be planned.
To install the antenna, refer to Figure 10, and perform Procedure B.
Warning: Ensure that the lightning suppressor is placed away from electrical devices
or cabling that may induce arcing.

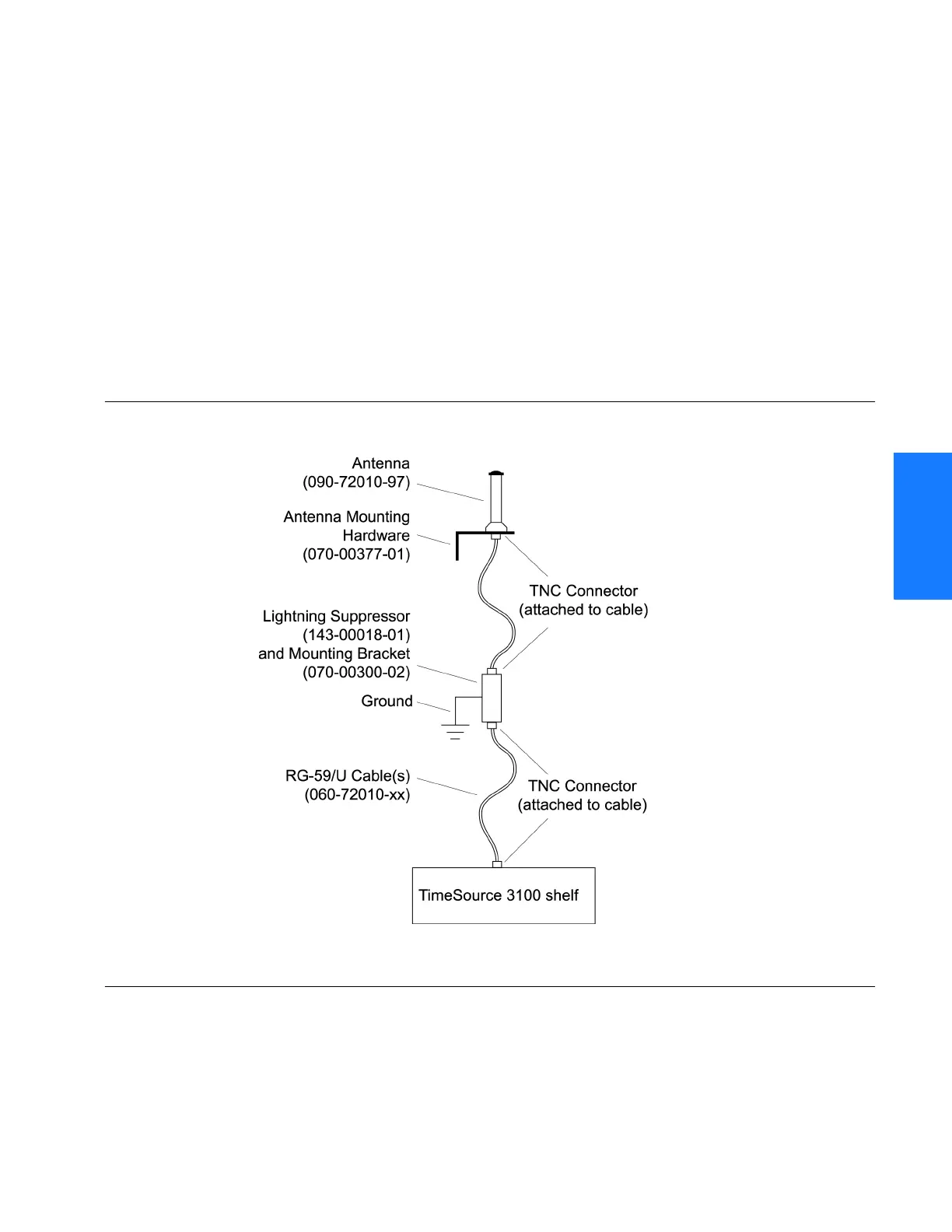

Figure 10. Antenna-to-Shelf Cabling
