TimeSource 3100 69
Installation
097-72020-01 Issue 9: November 2003
2
5
3
SSSSSSSSSSS SSSS S SSSSS SSSS SSS S SSS S SSSSS S
Module for IRIG-B TOD Outputs
Connect the four optional IRIG-B TOD outputs with the IRIG-B output module. See
Figure 13 for the connector location, and Figure 20 for the connections.

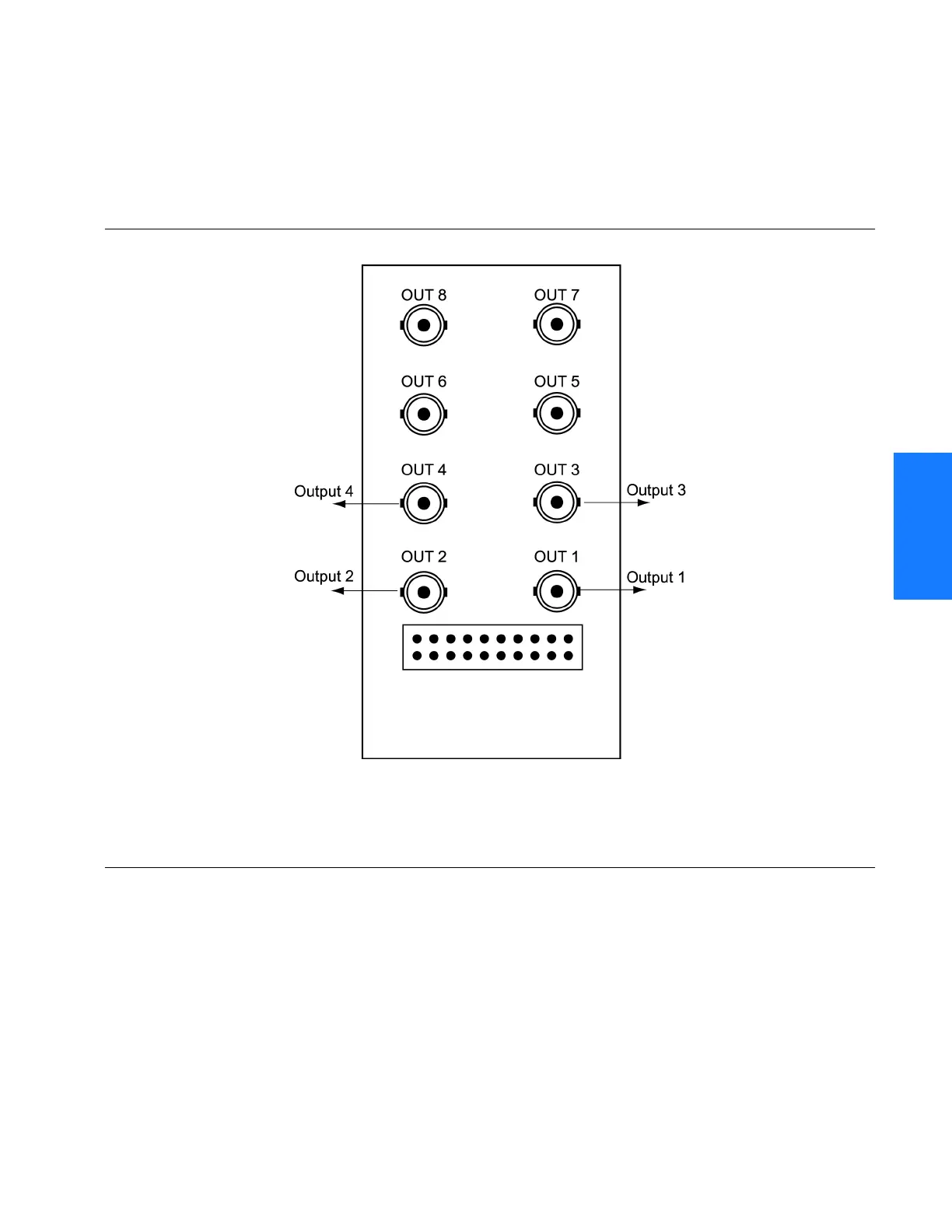

Figure 20. IRIG-B TOD Output Connections
Note: Outputs 5, 6, 7, and 8 are not used
