Chapter 7 Usage of Various Functions
7-31
5) instruction
(1) PID8
Available device
Flag
Instruction
M P K L F T C S D
#
D integer
No. of
Steps
Error
(F110)
Zero
(F111)
Carry
(F112)
n
S1
5
n Registration No. at parameter(0~7)
Error
(F110)
Error flag turns on when designating area is over
and the instruction isn’t executed.
S1 Execution status registration area

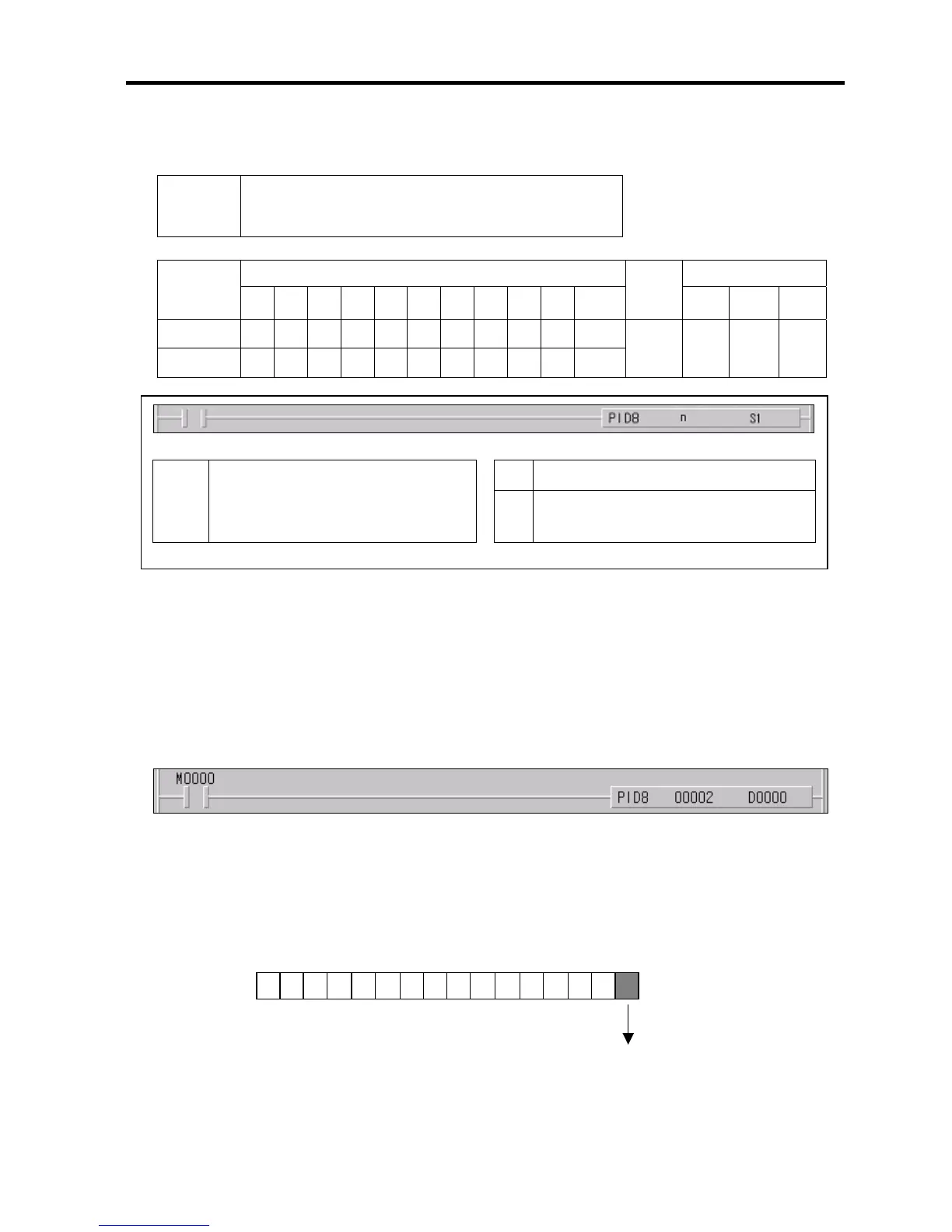

■ PID8 n S1
a) Usage
• when the condition of execution is on, PID operation executes.
• ‘n’ is registration No.at parameter( 0 ~ 7)
b) Example program
• When the input condition M0 turns on, PID operation executes at no.2 parameter.
• PID execution status registrate D0000 and the output value of control result registrate D0001
• If SV Ramp is designated, current SV is registrate D0005
Done : normal execution signal
D0000
b0
b6
b7bF bE bD bC bB bA b9 b8 b1b2b5 b4 b3
PID8 PID Control
Desi
