Appendix 3 External Dimensions

App3-1

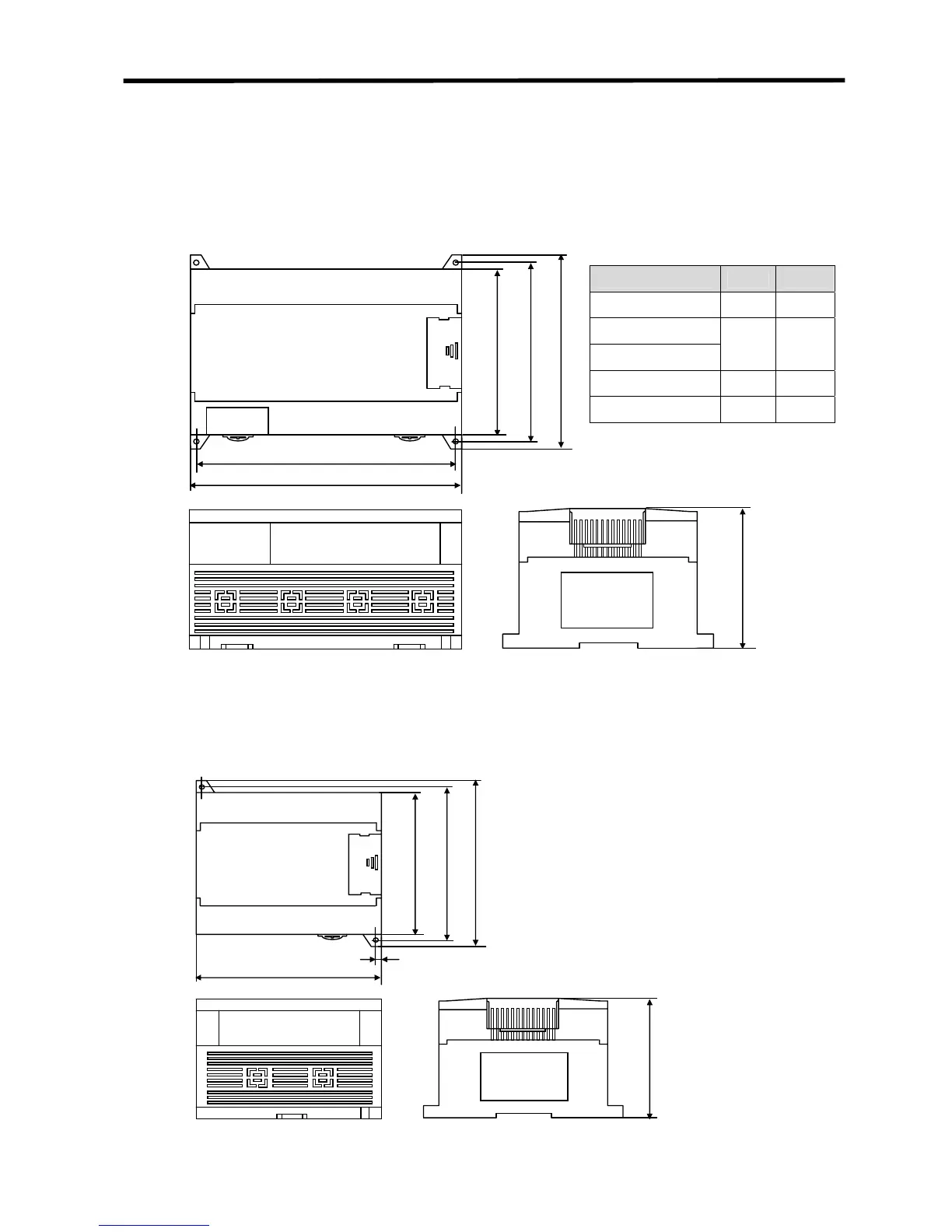

Appendix 3 External Dimensions (unit: mm)

1) Main unit

2) Extension module

(1) Standard type

Model A B

K7M-DR10/14UE 85 95

K7M-DR20/30UE

K7M-DR(T)20/30U

135 145

K7M-DR(T)40U 165 175

K7M-DR(T)60U 215 225

105 115
