Chapter 7 Usage of Various Functions
7-2

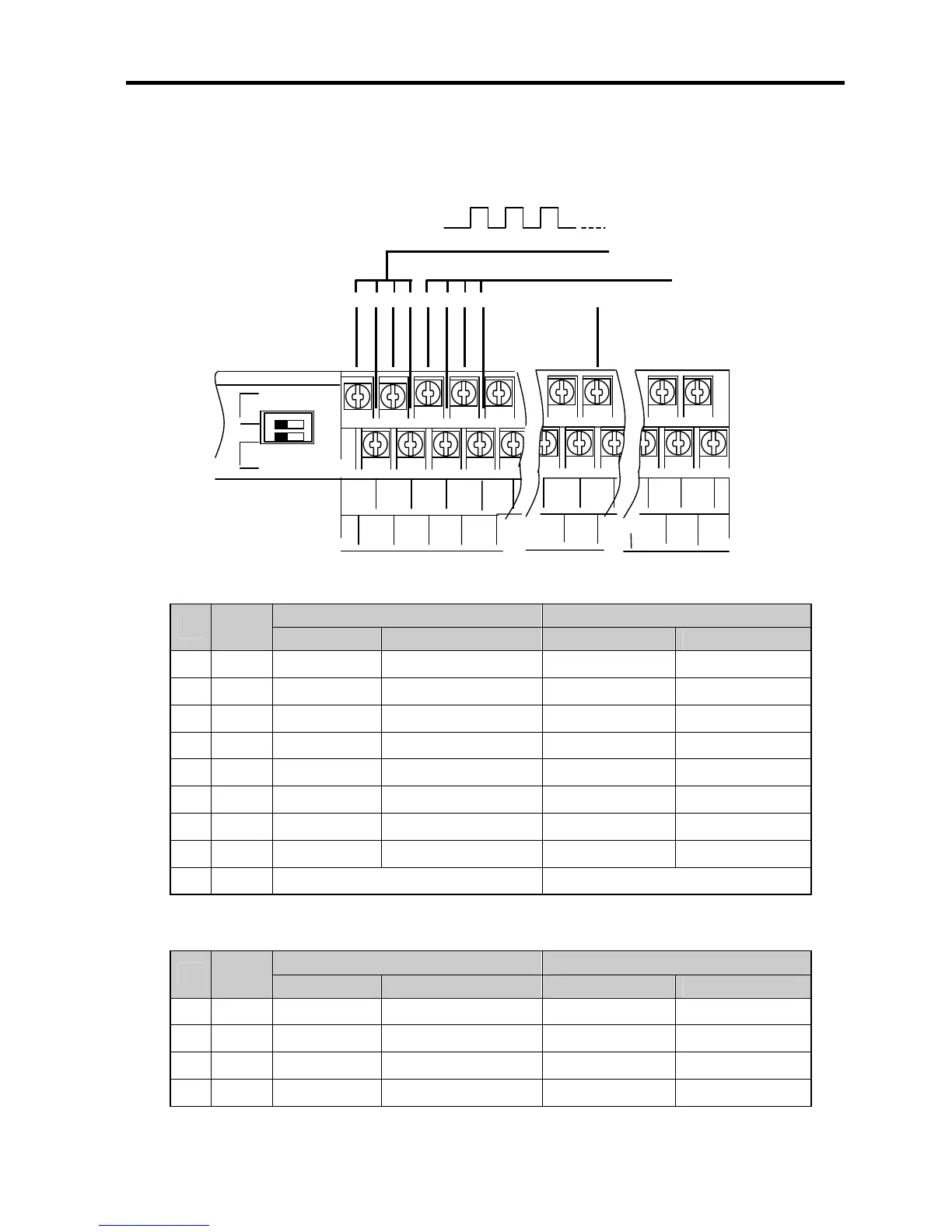

3) Names of wiring terminals
Names Usage
No.
Terminal
No.
1Phase 2Phase 1Phase 2Phase
P00 Ch0 Input Ch0 A Phase Input Counter input terminal A Phase Input terminal
P01 Ch1 Input Ch0 B Phase Input Counter input terminal B Phase Input terminal
P02 Ch2 Input Ch2 A Phase Input Counter input terminal A Phase Input terminal
P03 Ch3 Input Ch2 B Phase Input Counter input terminal B Phase Input terminal
P04 Ch0 Preset 24V Ch0 Preset 24V Preset input terminal Preset input terminal
P05 Ch1 Preset 24V - Preset input terminal -
P06 Ch2 Preset 24V Ch2 Preset 24V Preset input terminal Preset input terminal
P07 Ch3 Preset 24V - Preset input terminal -
COM0 Input Common Input common terminal
< Standard Type >
Names Usage
No.
Terminal
No.
1Phase 2Phase 1Phase 2Phase
P00 Ch0 Input Ch0 A Phase Input Counter input terminal A Phase Input terminal
P01 Ch1 Input Ch0 B Phase Input Counter input terminal B Phase Input terminal
P02 Ch0 Preset 24V Ch0 Preset 24V Preset input terminal Preset input terminal
P03 Ch1 Preset 24V - Preset input terminal -
< Econnomic Type >
P00
P01
P02
P03
P04
