T-solution MASTER-K120S - Chapter 2 System Configuration; 2.1 Overall Configuration

Chapter 2 System Configuration
2-1
Chapter 2. System Configuration
The MASTER-K120S series has suitable to configuration of the basic, computer link and network systems.
This chapter describes the configuration and features of each system.
2.1 Overall Configuration

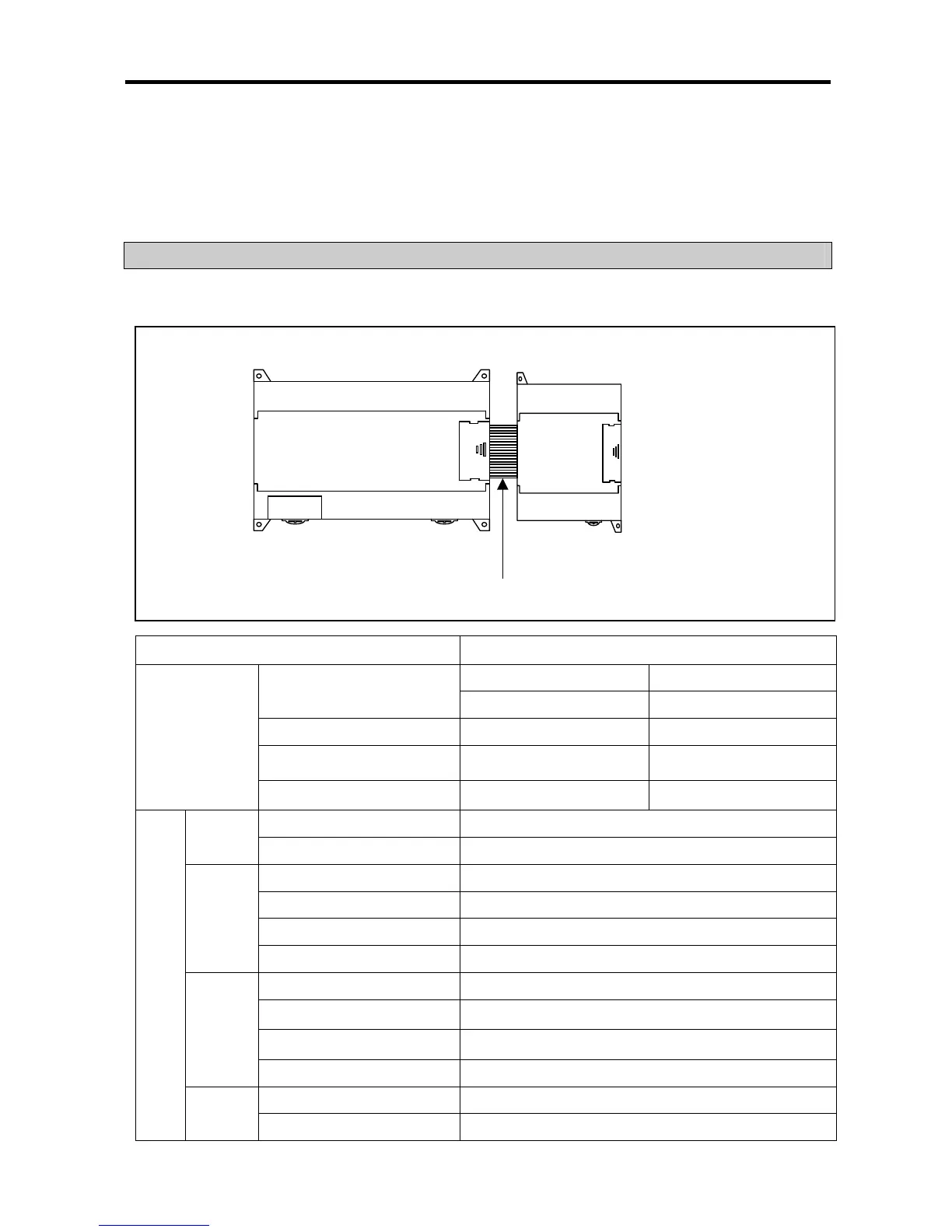

2.1.1 Basic system
Total I/O points
• 10-120 points
Standard Economic
Digital I/O module
• 3 modules • 2 modules
A/D-D/A module
• 3 modules • 2 modules
Analog timer
• 3 modules • 2 modules
Maximum number
of expansion
modules
Cnet I/F module
• 1 module • 1 modules
Economic
• K7M-DR10/14/20/30UE
Main unit
Standard
• K7M-DR//DRT/DT20/30/40/60U
Digital I/O module
• G7E-DR10A, G7E-DR20A, G7E-TR10A, G7E-DC08A, G7E-RY08A
Analog I/O module
• G7F-ADHA, G7F-ADHB, G7F-AD2A, G7F-DA2I, G7F-DA2V
Analog timer
• G7F-AT2A
Expansion
module
Resistance Temperature Detactor
• G7F-RD2A
Cnet I/F modules
• G7L-CUEB, G7L-CUEC
DeviceNet I/F module
• G7L-DBEA
FieldBus I/F module
• G7L-FUEA
Communic
ation I/F
module
Profibus I/F Module
• G7L-PBEA
RTC
• G7E-RTCA
Items
Option
module
Memory
• G7M-M256B
Main unit
expansion
module
expansion
cable
