T-solution MASTER-K120S - Zone Comparison Set; Comparison Task

Chapter 7 Usage of Various Functions
7-10

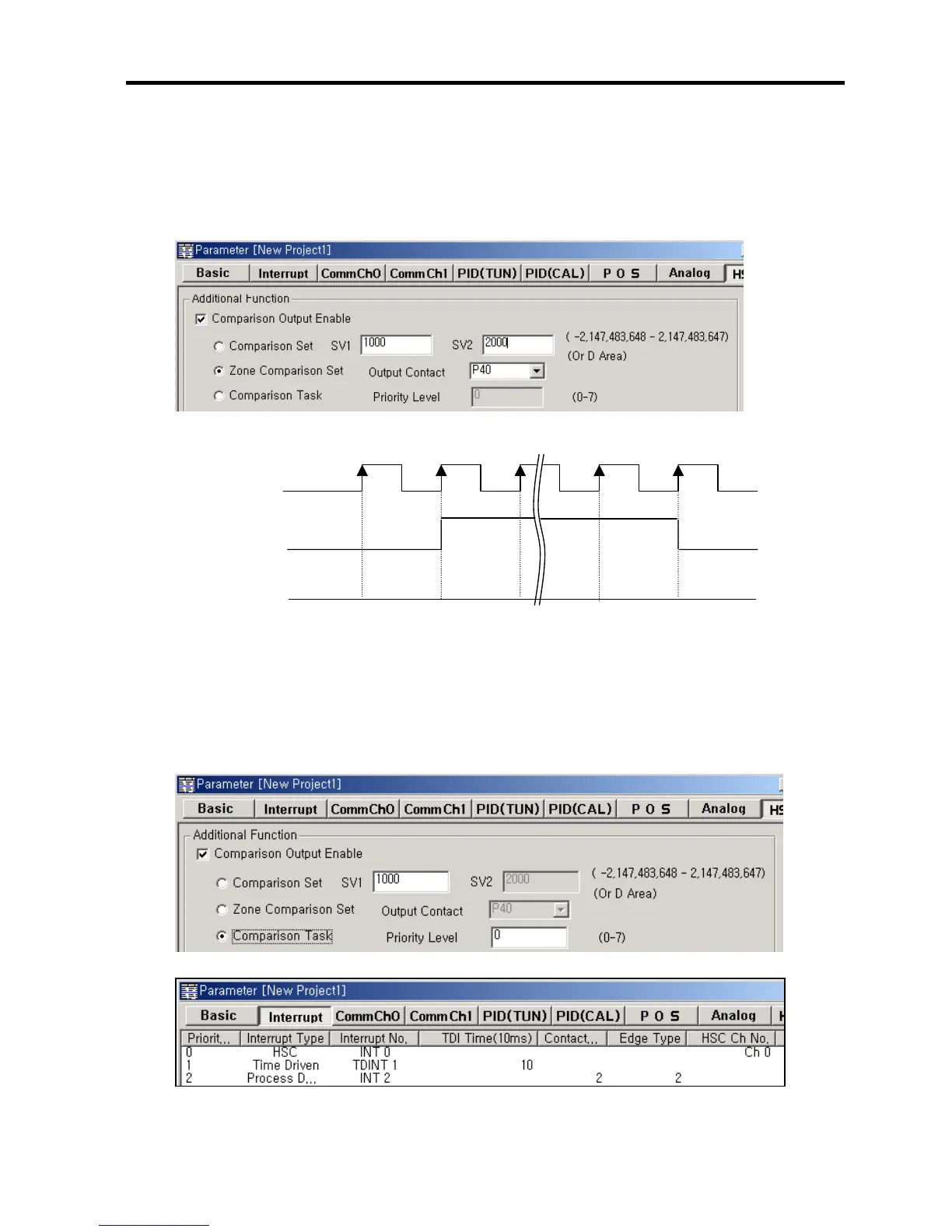

(b) Zone Comparison Set
- When current value of HSC isn’t less than SV1 and more than SV2. corresponding output point turns on.
- P40 ~ P47 are available for comparison output point.
- If SV2 is less than SV1, SV2 setting error(h’12) occurs and zone comparison set is disabled.
(c) Comparison Task
- If Comparison Task is selected in parameter window, corresponding interrupts is enabled.
- When current value of HSC is equal to SV1, corresponding interrupt program is executed.
- For the details about programming, refer to ‘KGLWIN User’s Manual’.
Current value
In
p
ut
p
ulse
999 1000 2000 2001
Out
p
ut
p
oint
