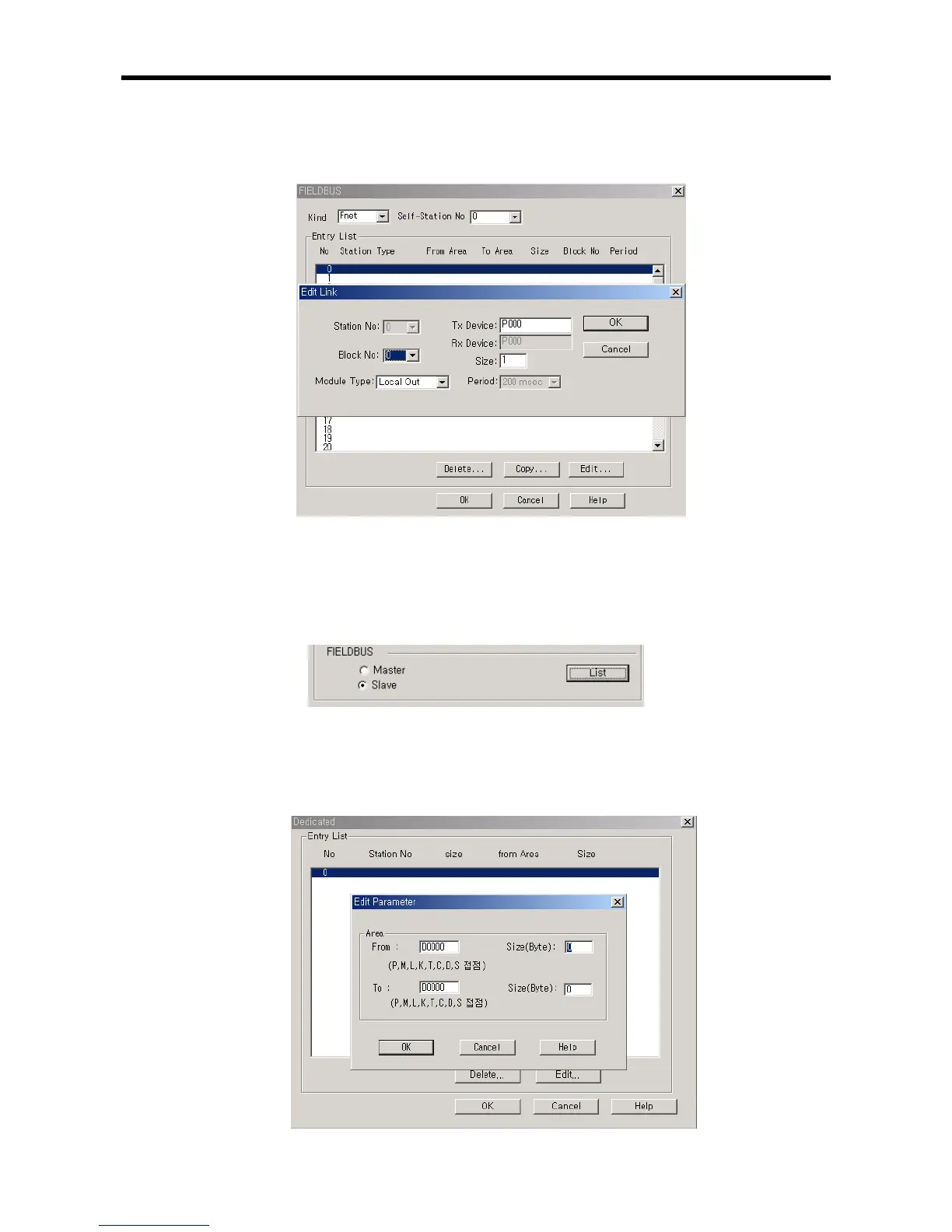

• Clicking List button then this window comes up.
• Designate self-station No. and set link items after double clicking entry list
• For the details, refer to User’s manual of Fnet I/F module
4) Usage of G7L-PBEA/DBEA
G7L-PBEA support profibus slave function only and G7L-DBEAsupports DeviceNet slave interface function only.
• After selecting communication parameter from KGLWIN and select FIELDBUS slave as below
• Clicking List button then this window comes up.
• After double clicking entry list 0, designate from/to area
• Pnet For maximum Sending/Receiving data size is 244 byte and that of DeviceNet are 30/32 byte.
• For the details, refer to corresponding User’s manual
