Chapter 7 Usage of Various Functions
7-11

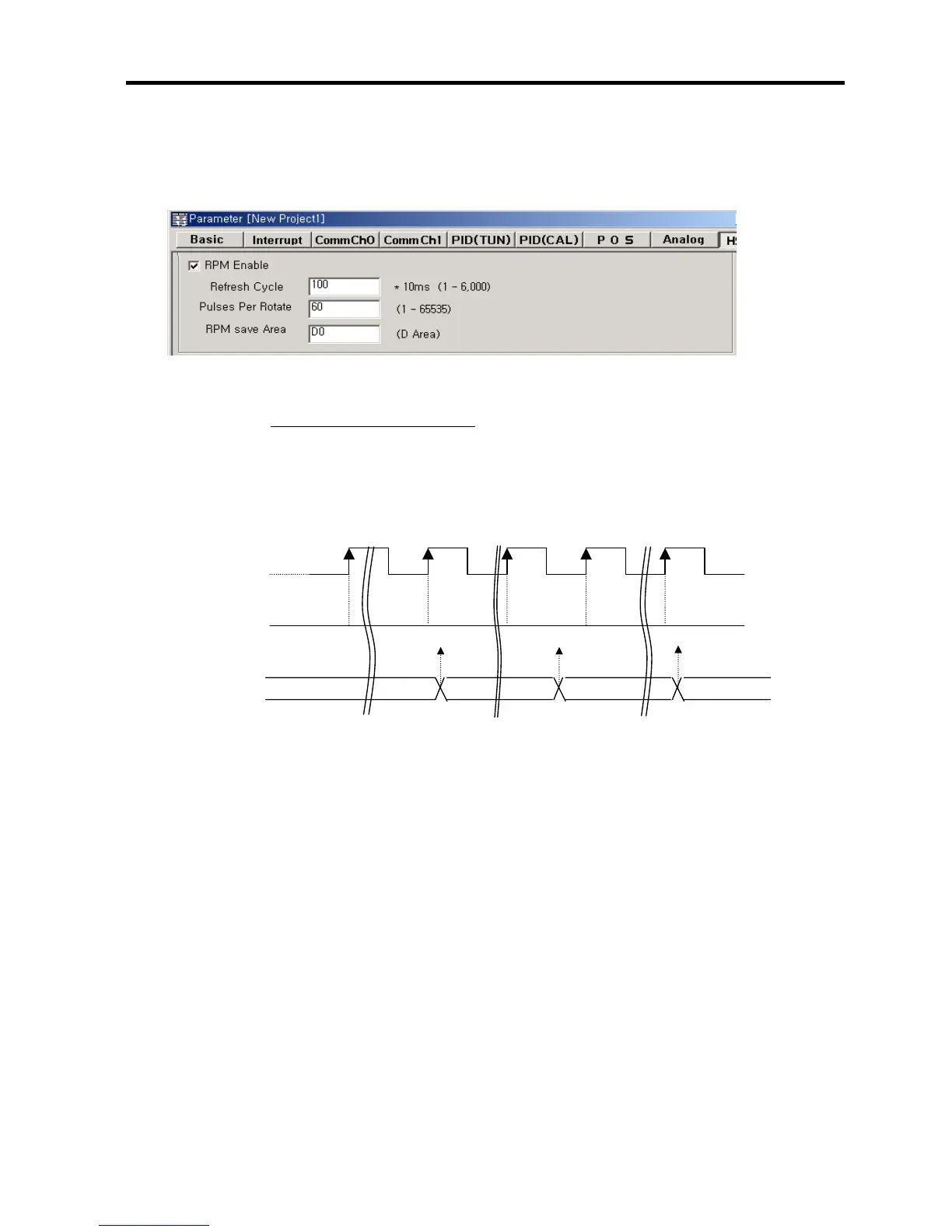

(6) RPM setting
- Can calculates RPM of input pulse
- RPM is stored in designated device.


- The RPM is expressed as:

cycle[ms]refresh rotateper Pulses
60,000Value)Last -Value(Current
RPM
×
×
=
(a) Examples of Program
- Refresh cycle : 1000ms, Pulses per rotate : 60, RPM save area : D0
 Last value = 500(Assumption), Current value = 1000
RPM = { (1000 – 500) * 60,000} / {60 * 1000} = 500
 Last value = 1000, Current value = 2000
RPM = { (2000 – 1000) * 60,000} / {60 * 1000} = 1000
 Last value = 2000, Current value = 4000
RPM = { (4000 – 2000) * 60,000} / {60 * 1000} = 2000

 

 
Current value
Time
In
p
ut
p
ulse
D0
,
D1
1000 2000 2001 4000
