T-solution MASTER-K120S User Manual

Chapter 7 Usage of Various Functions
7-9

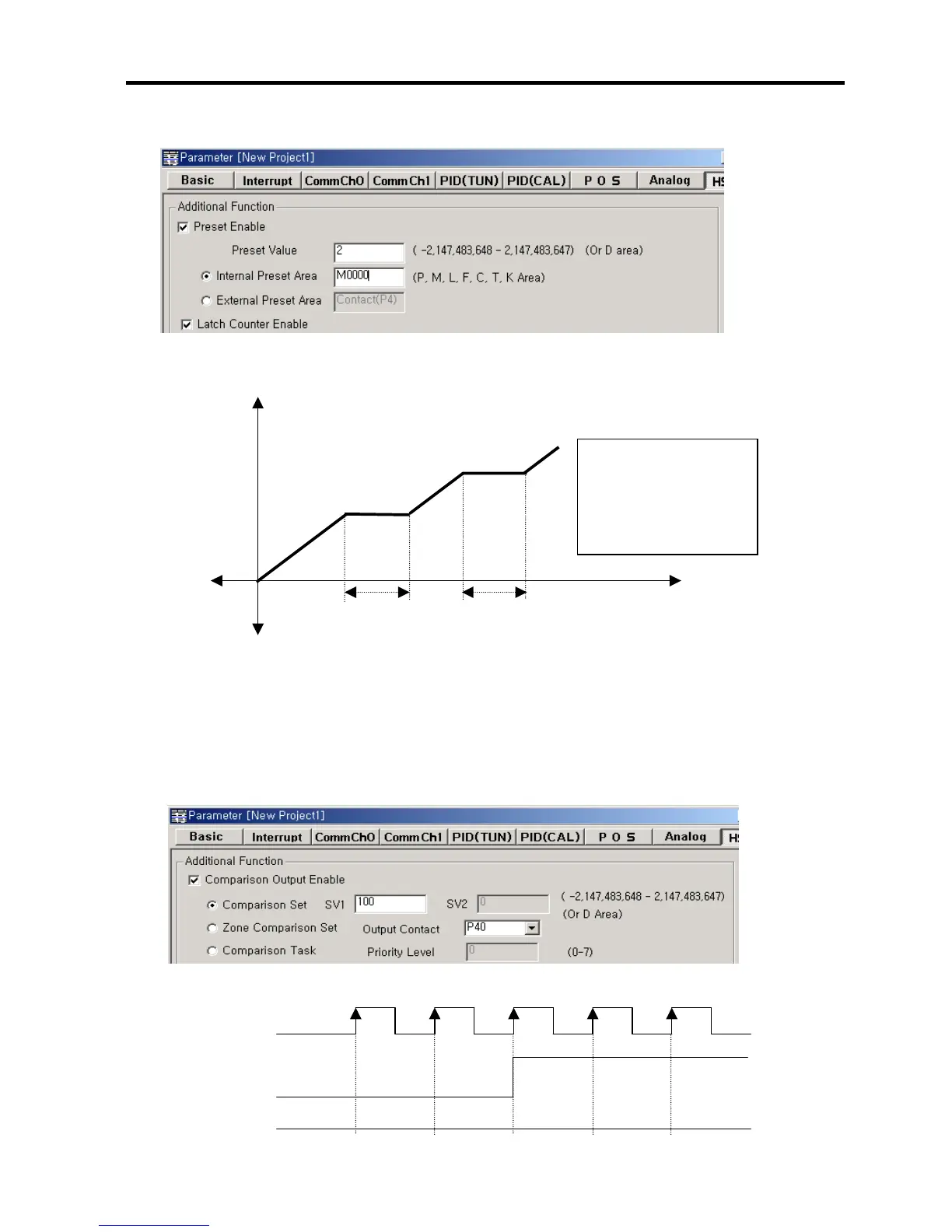

(4) Latch Counter setting

If this function is enabled, Current value of high speed counter is always retained.
(5) Comparison Output setting

(a) Comparison set
- When current value of HSC is equal to SV1, corresponding output point turns on.
- P40 ~ P47 are available for comparison output point.

Latches CV
0
Current value
Time
Latches CV
- When power supply is off.
- When is ‘Stop’ or ‘Pause’
- When input condition of
‘HSCST’ is off
Current value
Out
p
ut Contact
In
p
ut
p
ulse
98 99 100 101 102
